Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. From the rear of the dome lamp lens, insert a flat-bladed tool (1) between the dome lamp lens and the headliner (2).
  2. Use the flat bladed tool in order to push the tab at the rear of the dome lamp lens forward. Disengage the tab from the headliner.

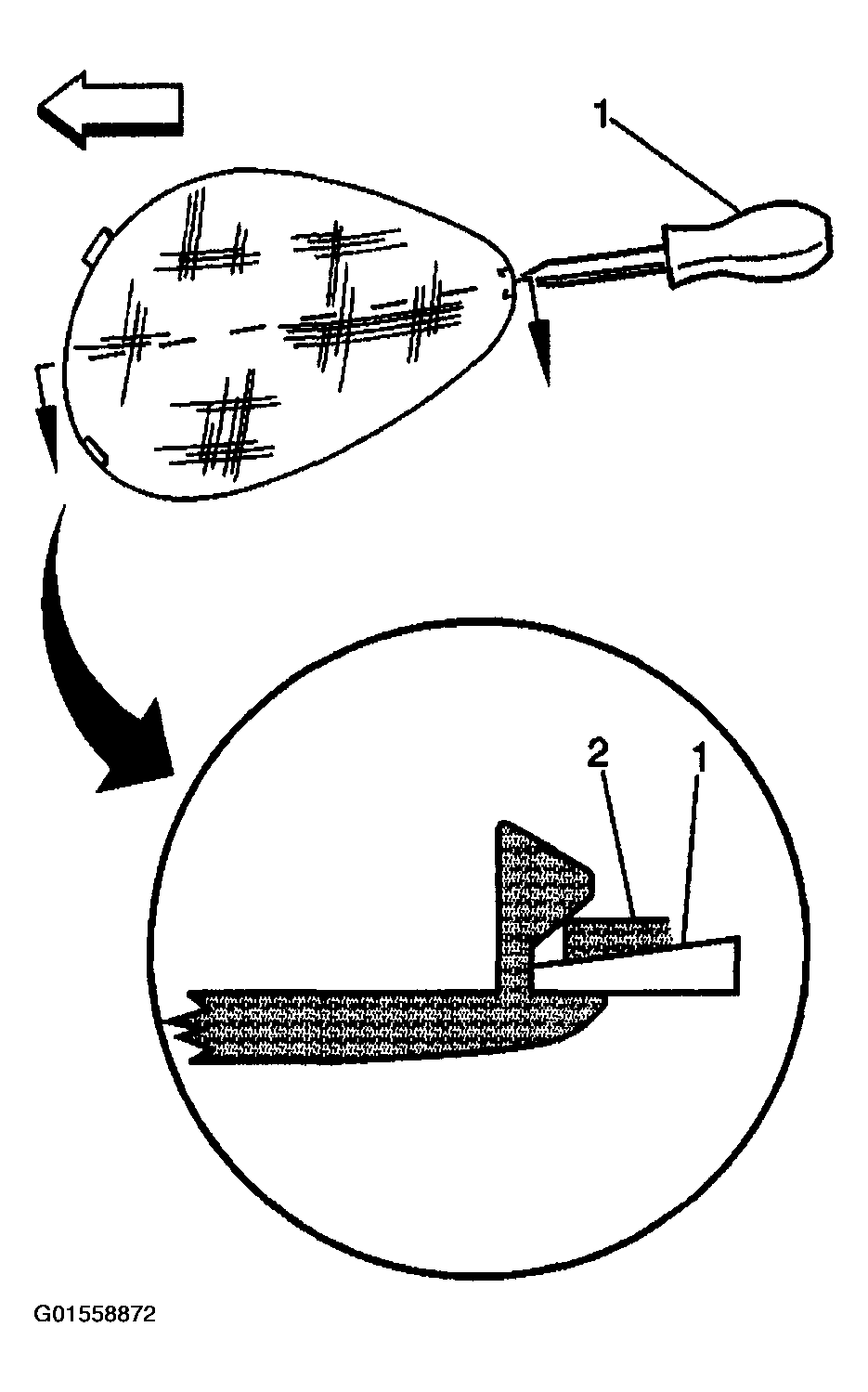

    Fig 1: Disengaging Tab From Headliner
    G01558872Courtesy of GENERAL MOTORS CORP.
  3. Pull the dome lamp lens rearward in order to disengage the 2 tabs at the front of the dome lamp lens.
  4. Remove the dome lamp bulb from the socket.
    Fig 2: Disengaging Dome Lamp Lens Tabs
    G01558873Courtesy of GENERAL MOTORS CORP.
  5. Remove the reading lamp bulb from the socket, if equipped.

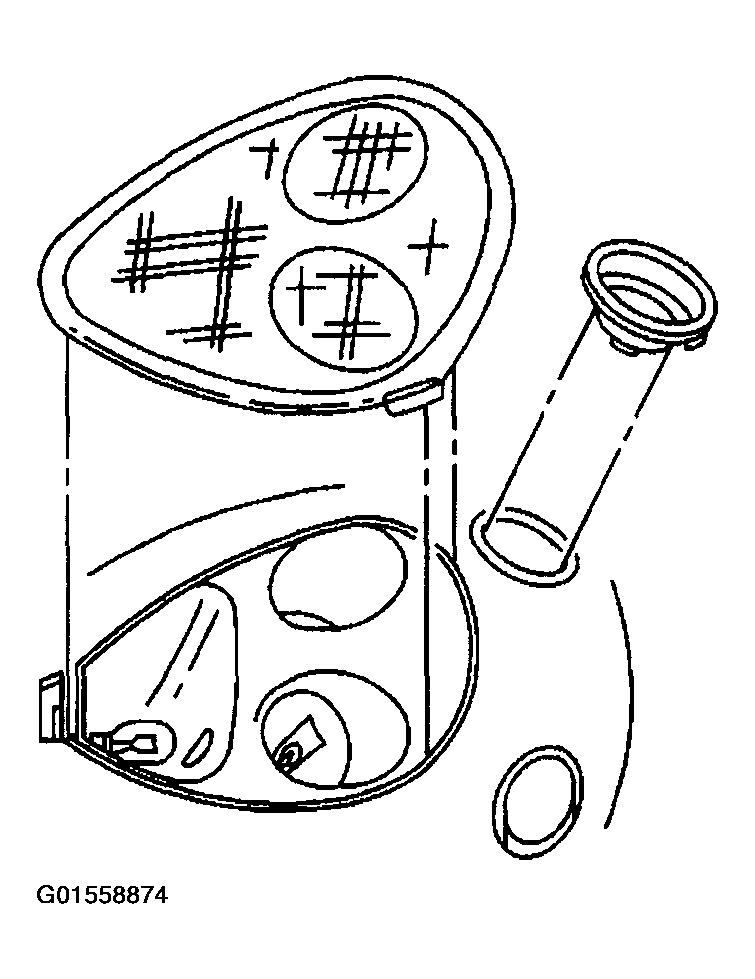

    Fig 3: Removing Reading Lamp Bulb From Socket
    G01558874Courtesy of GENERAL MOTORS CORP.
