Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the reading lamp bulb to the socket, if equipped.

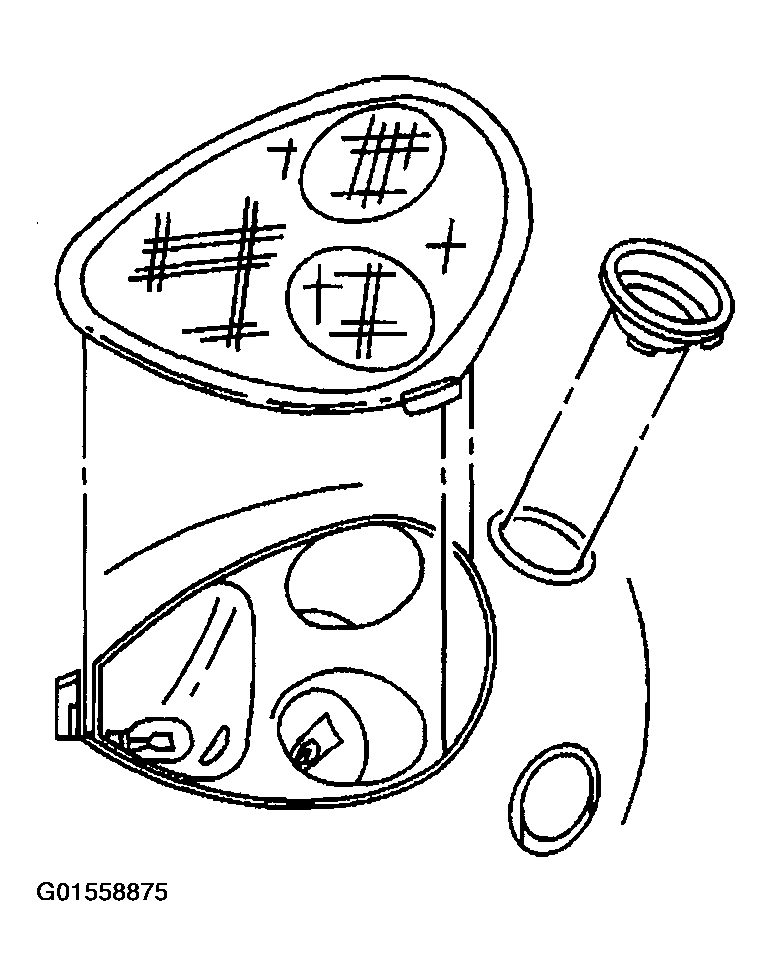

    Fig 1: Installing Reading Lamp Bulb To Socket
    G01558875Courtesy of GENERAL MOTORS CORP.
  2. Install the bulb to the socket.
  3. Insert the 2 forward tabs on the dome lamp lens into the appropriate holes in the headliner (2).
  4. Push at the rear of the dome lamp lens until the rear tab is fully seated in the headliner.
    Fig 2: Inserting Dome Lamp Lens Tabs
    G01558876Courtesy of GENERAL MOTORS CORP.
