Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the DRL resistor to the right frame rail.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the DRL resistor bolt.

    Tighten

    Tighten the bolt to 7 N.m (62 lb.in).

  3. Connect the DRL resistor electrical connector.
  4. Install the right headlamp assembly. Refer to HEADLAMP ASSEMBLY OR HEADLAMP BULB REPLACEMENT (PONTIAC)  or to HEADLAMP ASSEMBLY OR HEADLAMP BULB AND/OR CORNERING, SIDEMARKER, PARK, TURN SIGNAL BULB REPLACEMENT (CHEVROLET)  .
  5. Close the hood.

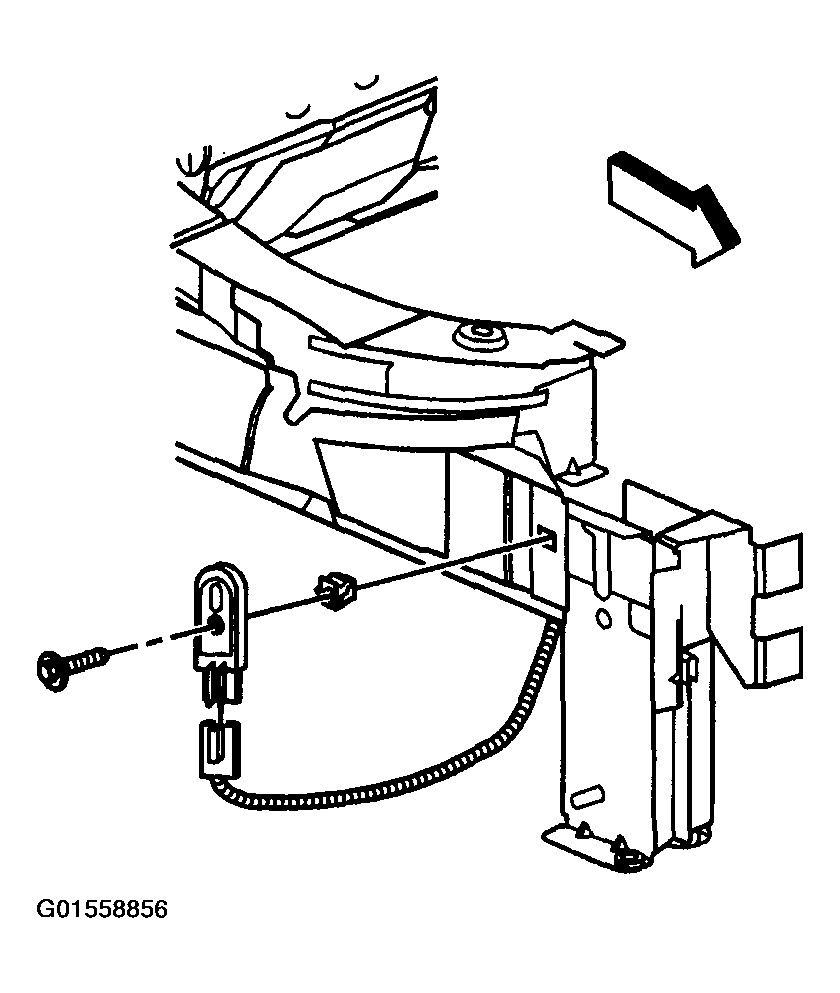

    Fig 1: Installing DRL Resistor To Frame Rail
    G01558856Courtesy of GENERAL MOTORS CORP.
