Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear compartment.
  2. Remove the rear compartment lamp from the rear shelf using a small flat-bladed tool to release the retainers.
  3. Disconnect the electrical connector (3) from rear compartment lamp (2).
  4. Remove the bulb from the rear compartment lamp.

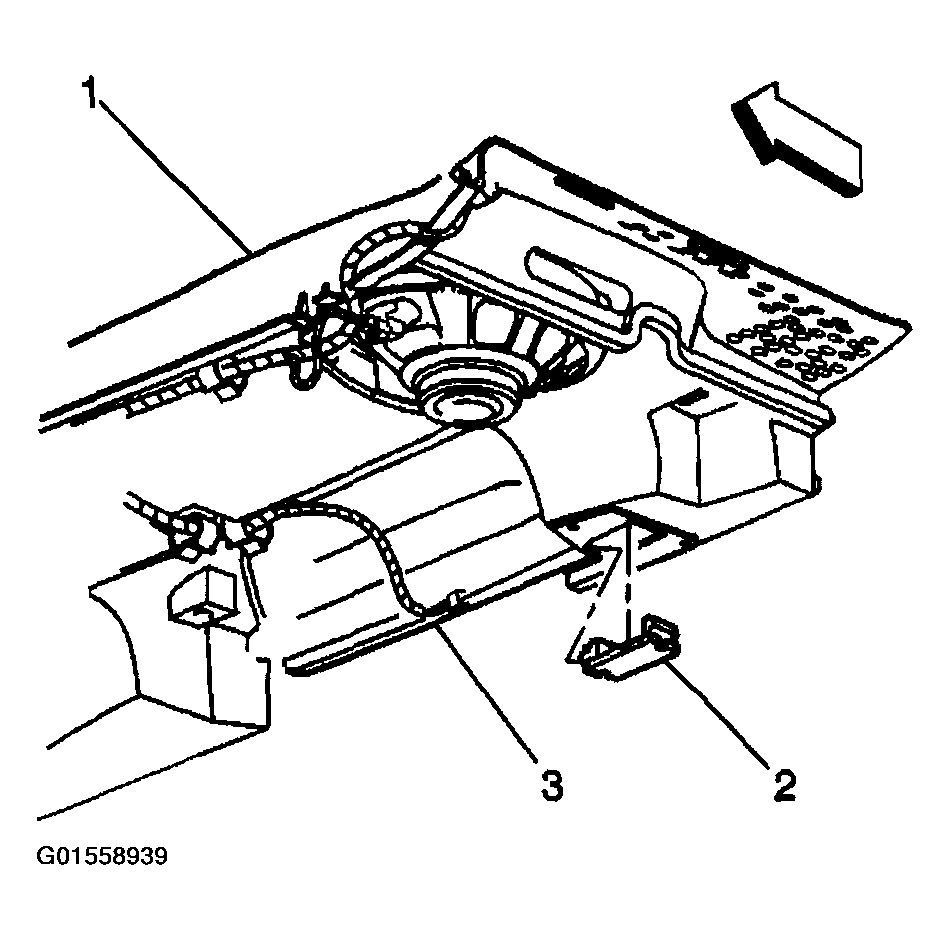

    Fig 1: Disconnecting Electrical Connector From Rear Compartment Lamp
    G01558939Courtesy of GENERAL MOTORS CORP.
