Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb to the rear compartment lamp (1).
  2. Connect the electrical connector (3) to the rear compartment lamp.
  3. Install the rear compartment lamp to the rear shelf pressing into place until fully seated.
  4. Closer the rear compartment.

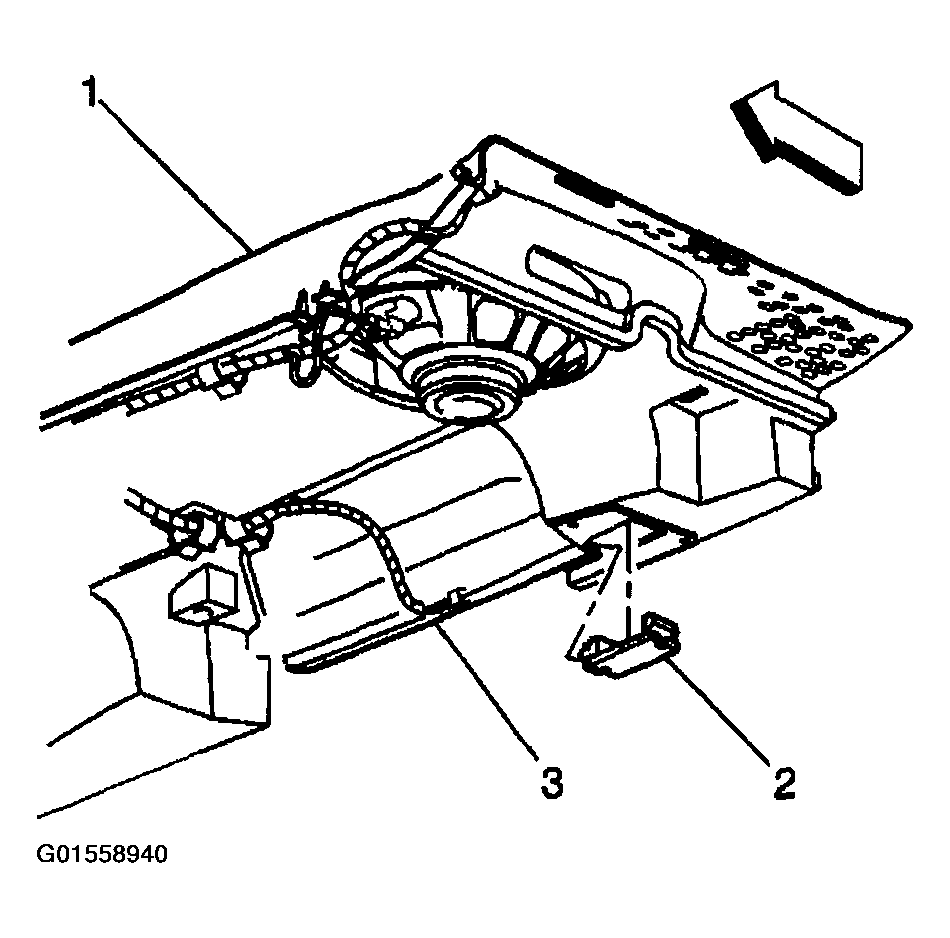

    Fig 1: Connecting Electrical Connector To Rear Compartment Lamp
    G01558940Courtesy of GENERAL MOTORS CORP.
