Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
Remove the bulb/socket from the backup lamp.

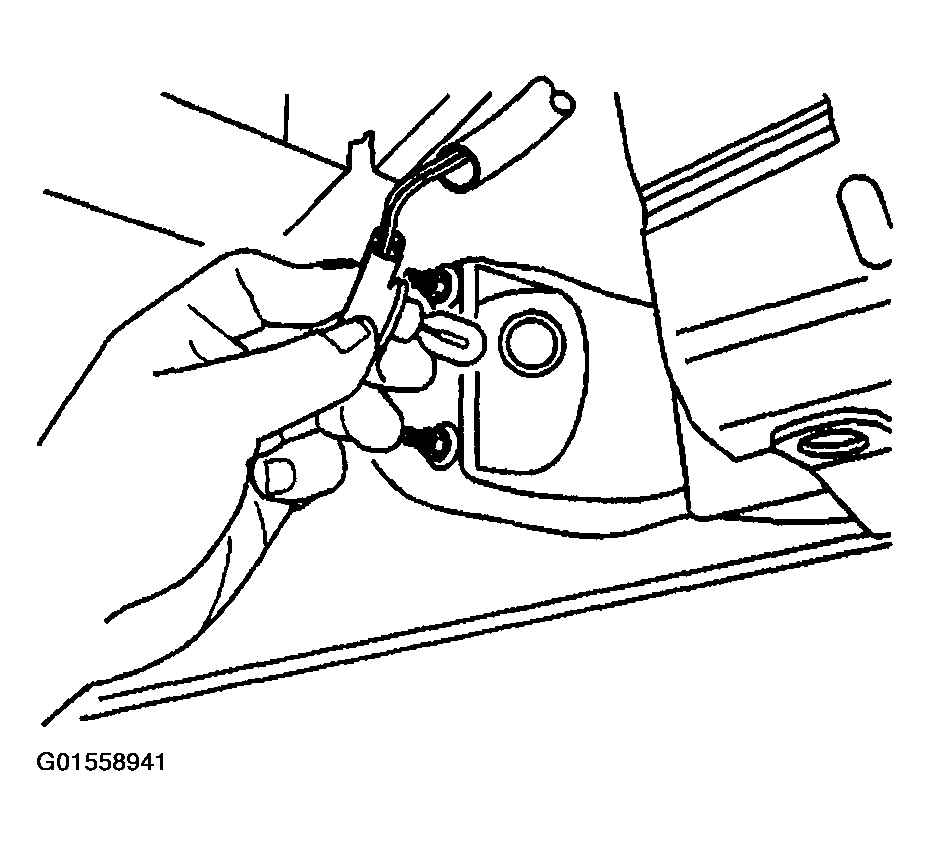

Fig 1: Removing Bulb/Socket From Backup Lamp (Pontiac)
Courtesy of GENERAL MOTORS CORP.
Remove the bulb from the socket, if required.

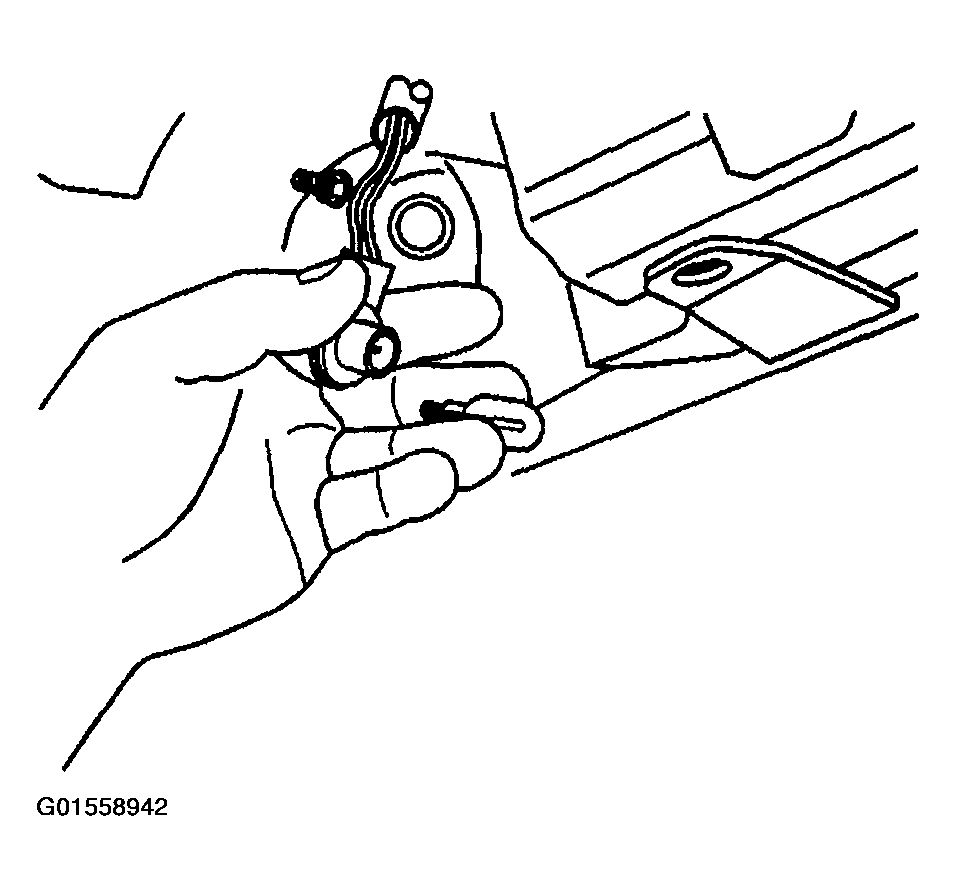

Fig 2: Removing Bulb From Socket (Pontiac)
Courtesy of GENERAL MOTORS CORP.
Remove the nuts from the backup lamp.

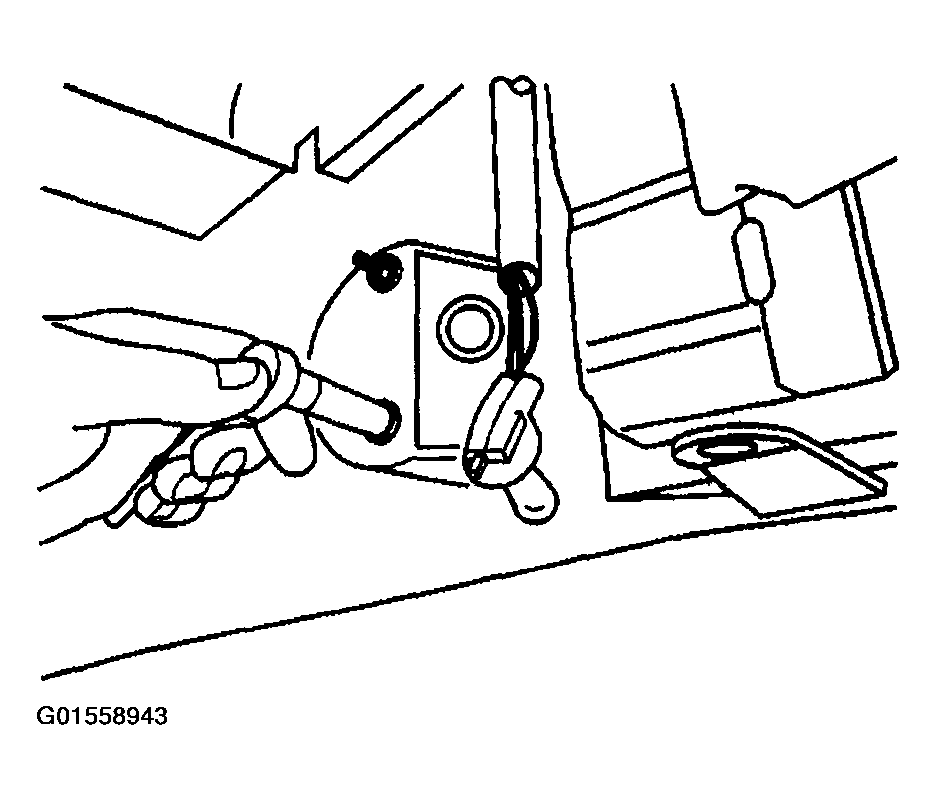

Fig 3: Removing Nuts From Backup Lamp (Pontiac)
Courtesy of GENERAL MOTORS CORP.
Remove the backup lamp from the rear bumper fascia.

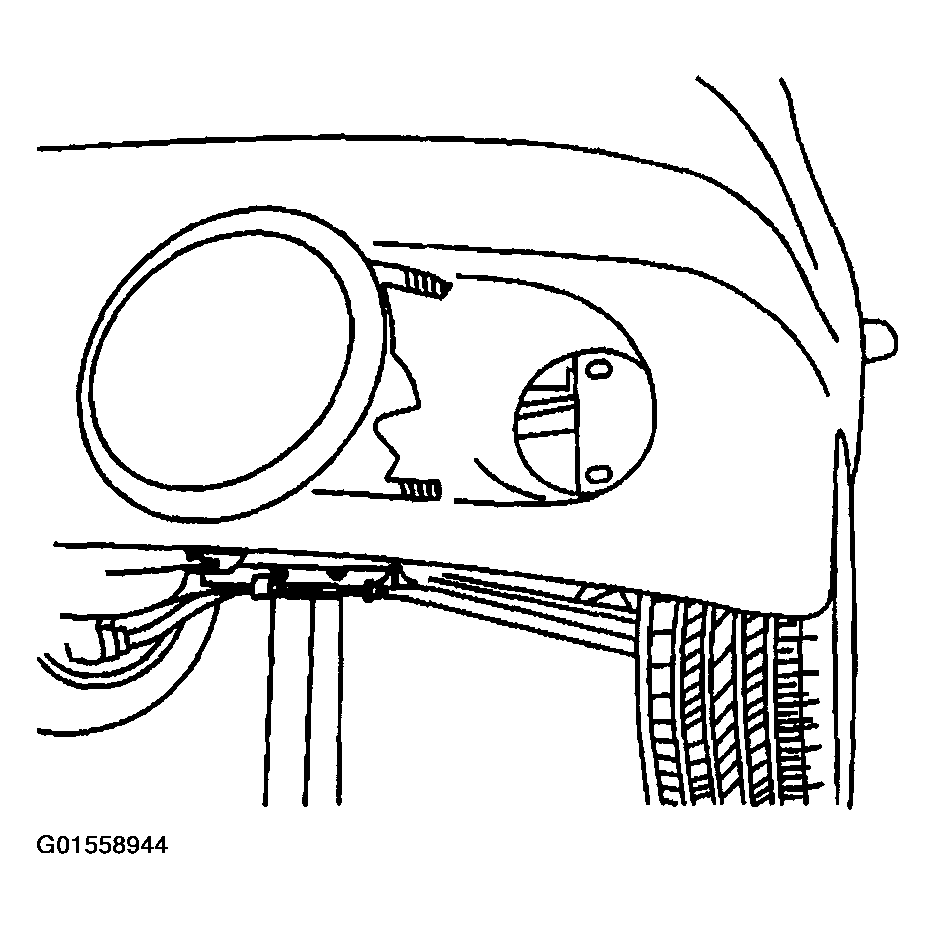

Fig 4: Removing Backup Lamp From Rear Bumper Fascia (Pontiac)
Courtesy of GENERAL MOTORS CORP.
