Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

Position the backup lamp to the rear bumper fascia.

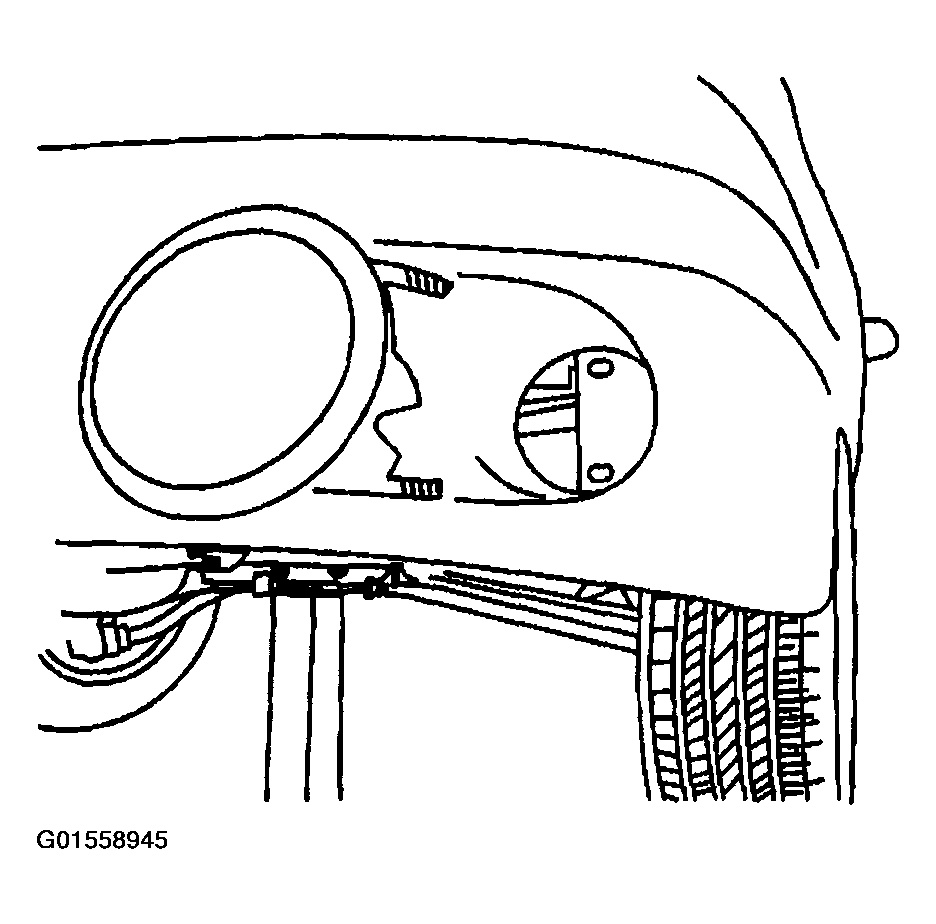

Fig 1: Installing Backup Lamp To Rear Bumper Fascia (Pontiac)
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the nuts to the backup lamp.
Tighten

Tighten the backup lamp nuts to 2 N.m (18 lb.in).

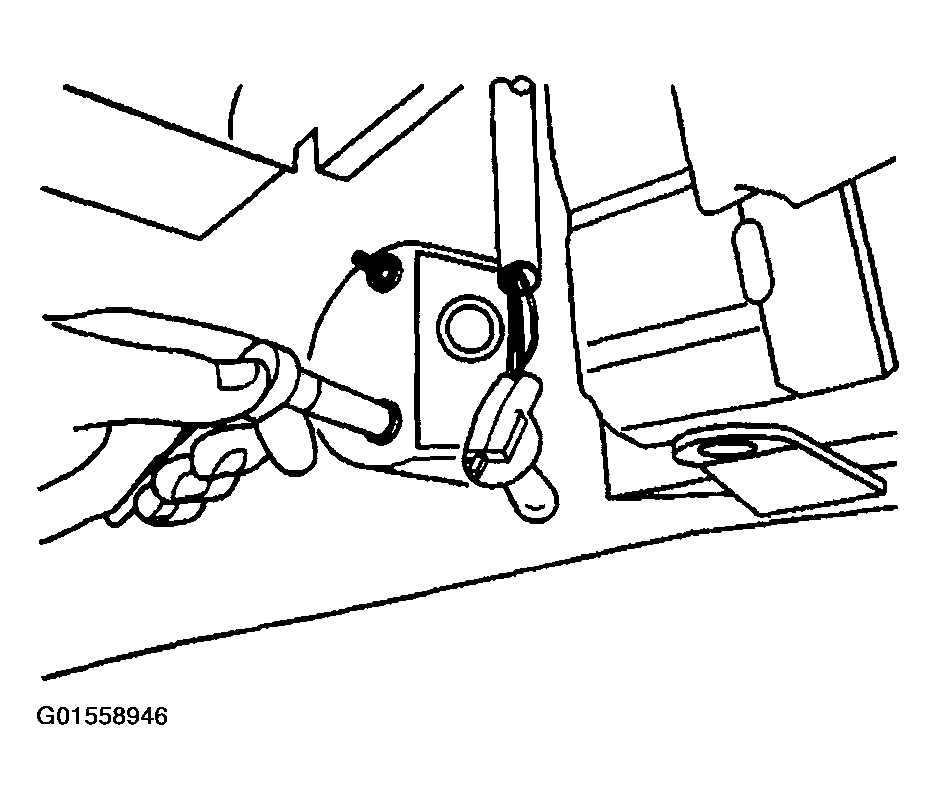

Fig 2: Installing Nuts To Backup Lamp (Pontiac)
Courtesy of GENERAL MOTORS CORP.
Install the bulb to the socket, if required.

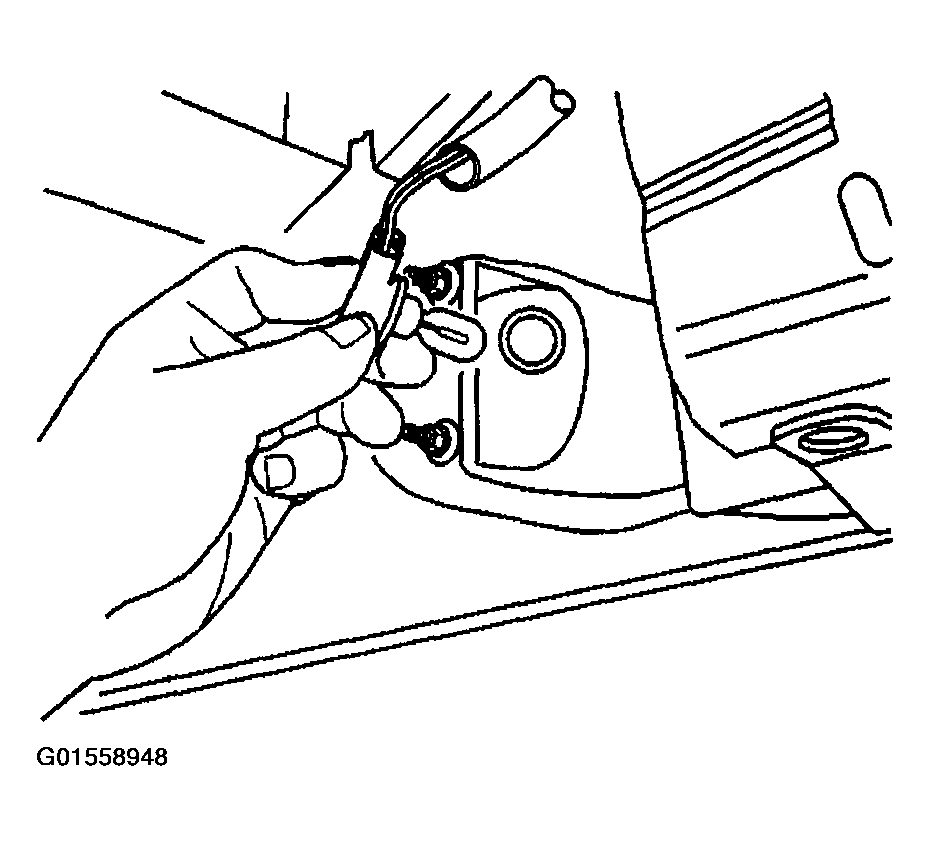

Fig 3: Installing Bulb To Socket (Pontiac)
Courtesy of GENERAL MOTORS CORP.
Install the bulb/socket to the backup lamp.
Lower the vehicle.

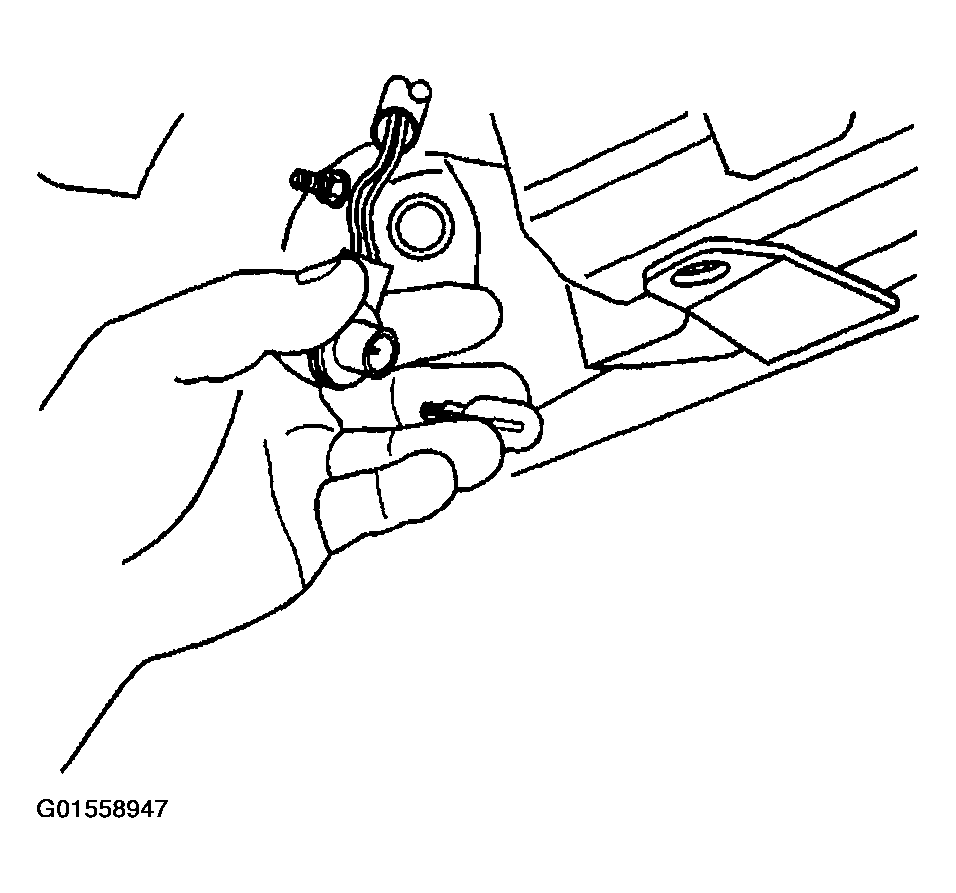

Fig 4: Installing Bulb/Socket To Backup Lamp (Pontiac)
Courtesy of GENERAL MOTORS CORP.
