Stop Lamps Inoperative

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

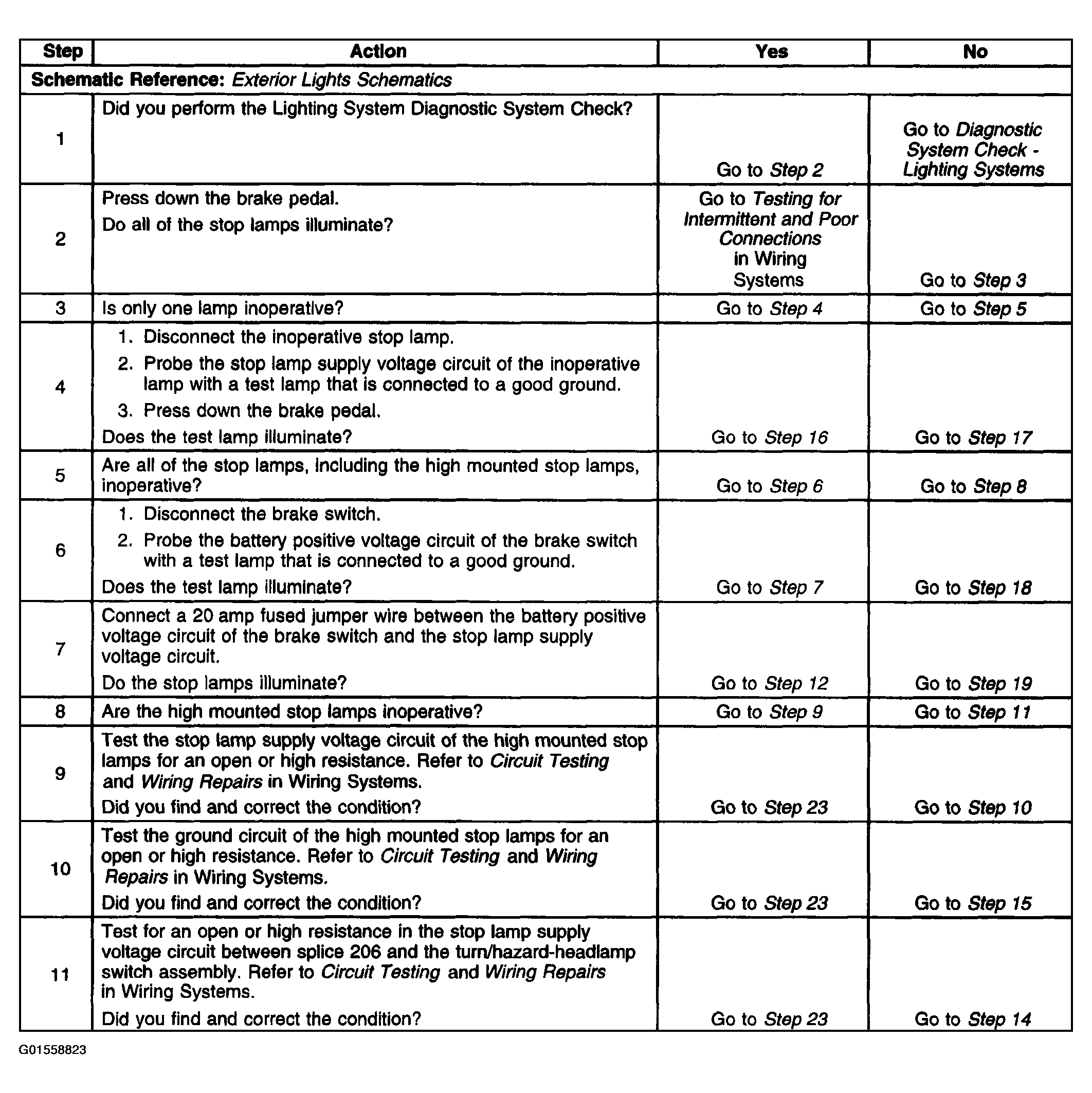

Fig 1: Stop Lamps Inoperative
G01558823Courtesy of GENERAL MOTORS CORP.

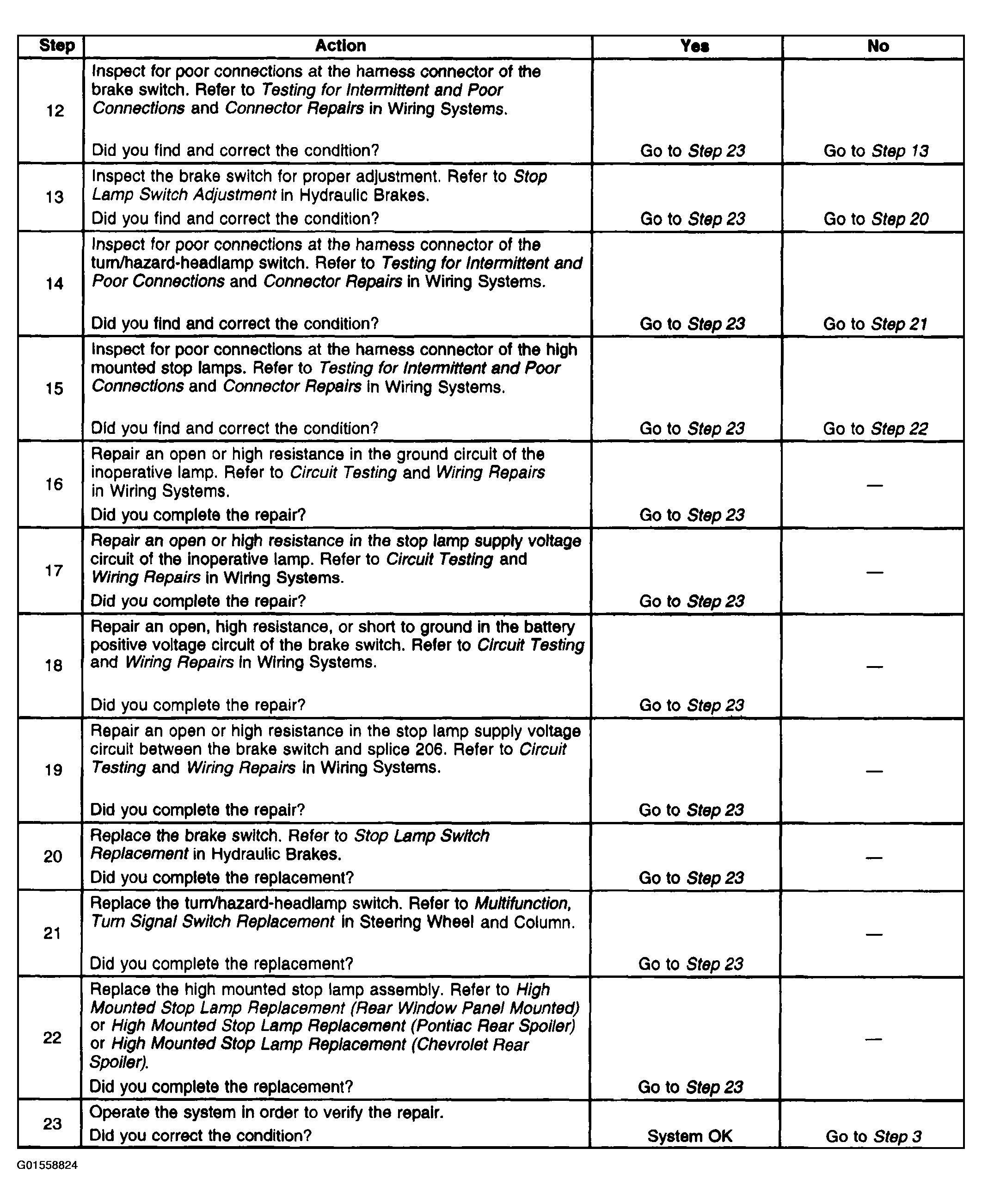

Fig 2: Stop Lamps Inoperative
G01558824Courtesy of GENERAL MOTORS CORP.
