Fog Lamps Inoperative

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

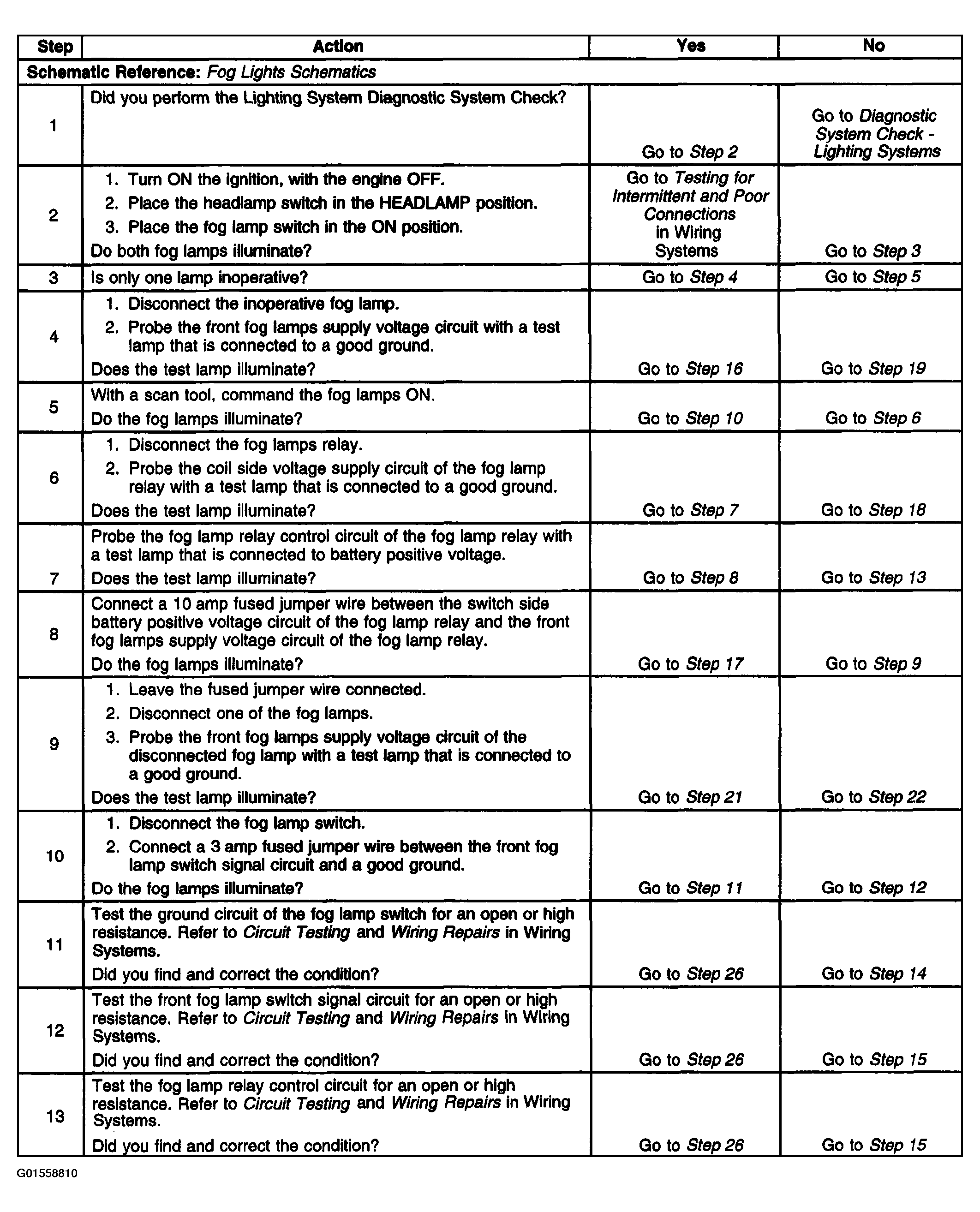

Fig 1: Fog Lamps Inoperative (1 Of 2)
G01558810Courtesy of GENERAL MOTORS CORP.

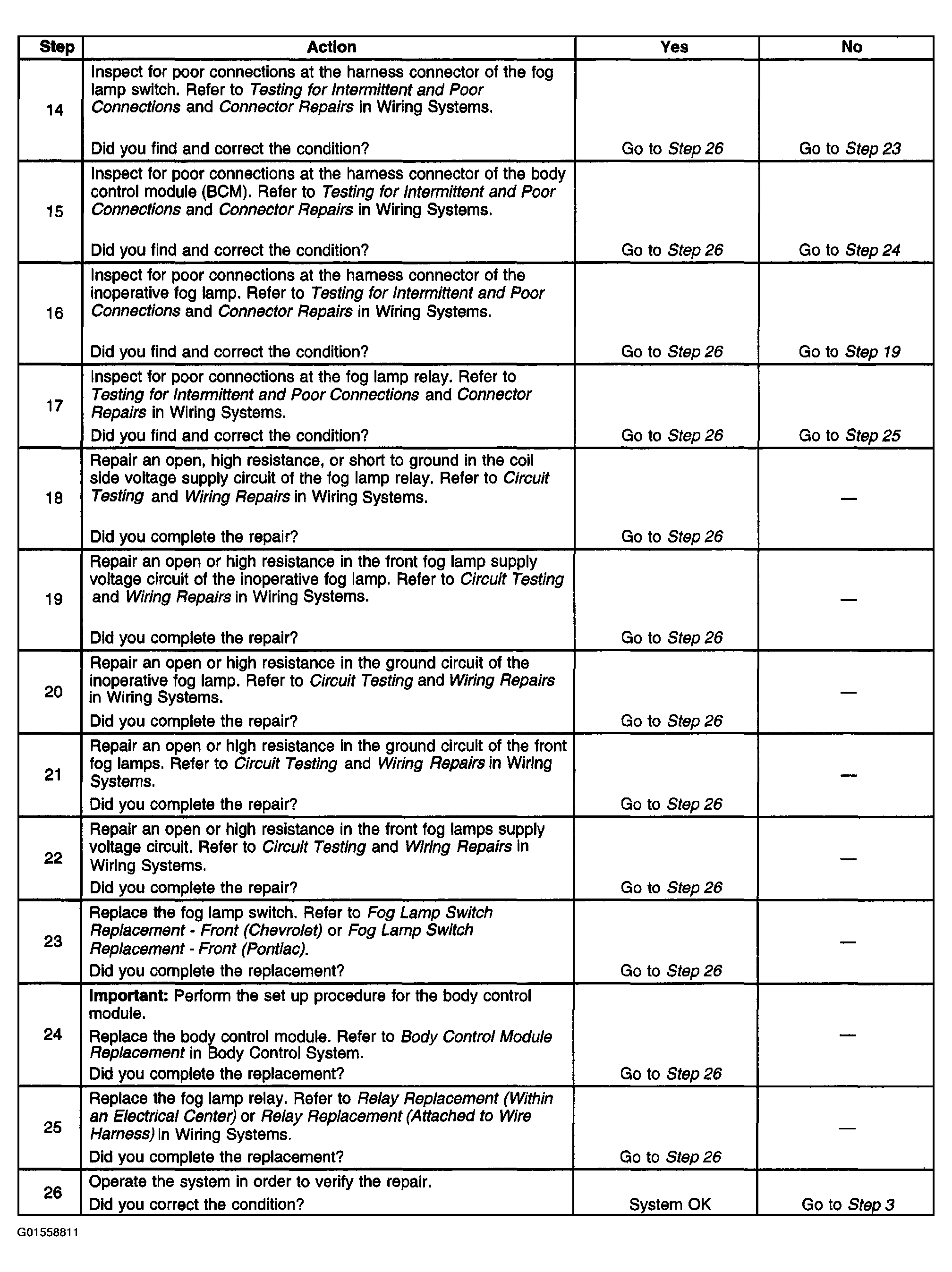

Fig 2: Fog Lamps Inoperative (2 Of 2)
G01558811Courtesy of GENERAL MOTORS CORP.
