Diagnostic Aids

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

If the DTC is a history DTC, the malfunction may be intermittent. Refer to TESTING FOR INTERMITTENT AND POOR CONNECTIONS in Wiring Systems.

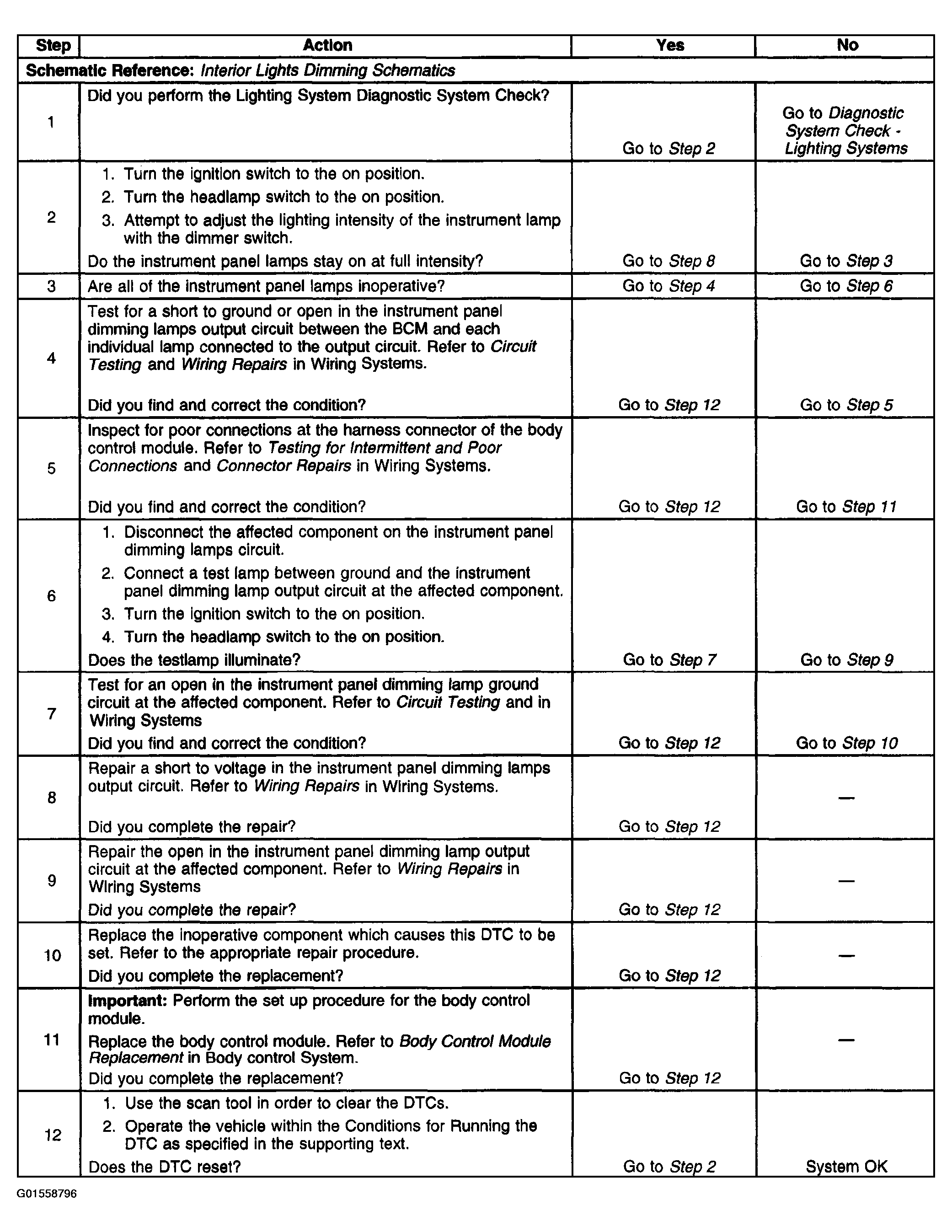

Fig 1: DTC B2625
G01558796Courtesy of GENERAL MOTORS CORP.
