Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Disconnect the negative battery cable from the battery. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Engine Electrical.
  3. Remove the air cleaner mounting bracket. Refer to MOUNTING BRACKET REPLACEMENT - AIR CLEANER in Body Front End.
  4. Remove the push-in retainer (3) from the electrical center.
  5. Remove the electrical center from the inner fender.
  6. Turn the electrical center over and remove the bottom cover.
  7. Remove the four plastic wire retainers.
    NOTE: Note the correct routing of the electrical wiring. Failure to reinstall the wiring properly could result in damage to the wiring.
  8. Label and remove the wires.
  9. Turn the electrical center right side up and remove the fuses and relays.
  10. Remove the electrical center from the vehicle.

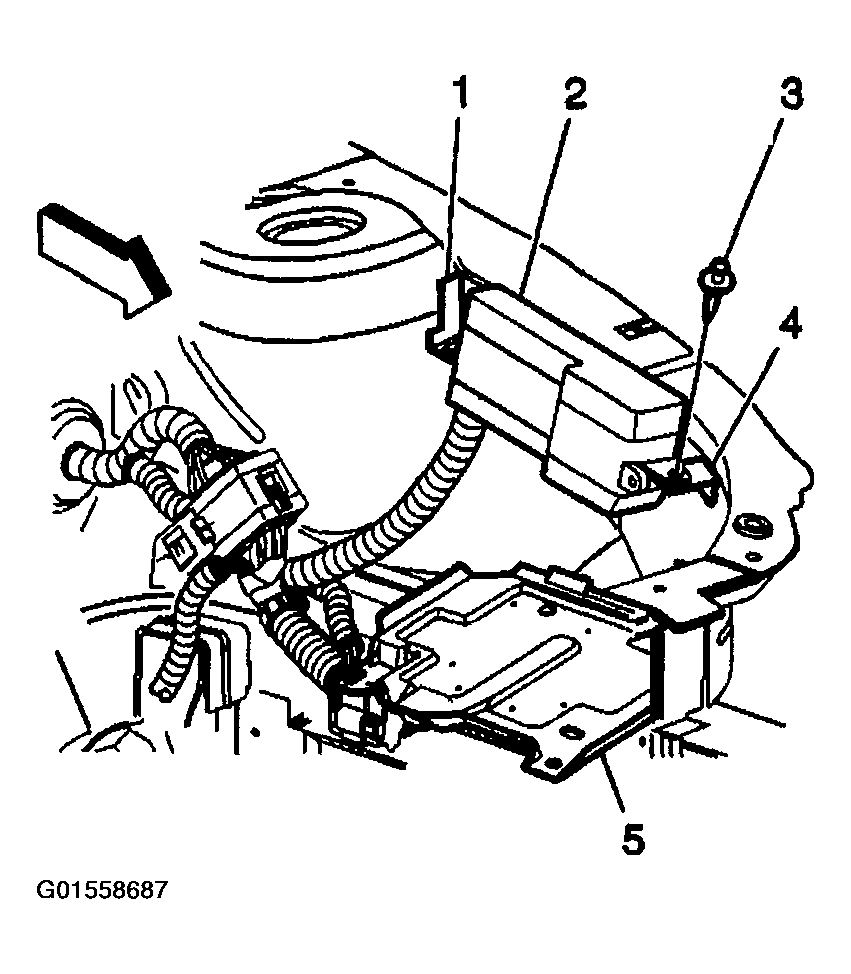

    Fig 1: Removing Electrical Center
    G01558687Courtesy of GENERAL MOTORS CORP.
