Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the electrical center in the vehicle.
  2. Install the fuses and relays.
  3. Turn the electrical center over and install the wires.
  4. Install the four plastic wire retainers.
  5. Install the bottom cover to the electrical center.
  6. Install the electrical center to the inner fender.
  7. Install the push-in retainer (3) to the electrical center.
  8. Install the air cleaner mounting bracket. Refer to MOUNTING BRACKET REPLACEMENT - AIR CLEANER in Body Front End.
  9. Connect the negative battery cable to the battery. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Engine Electrical.
  10. Close the hood.

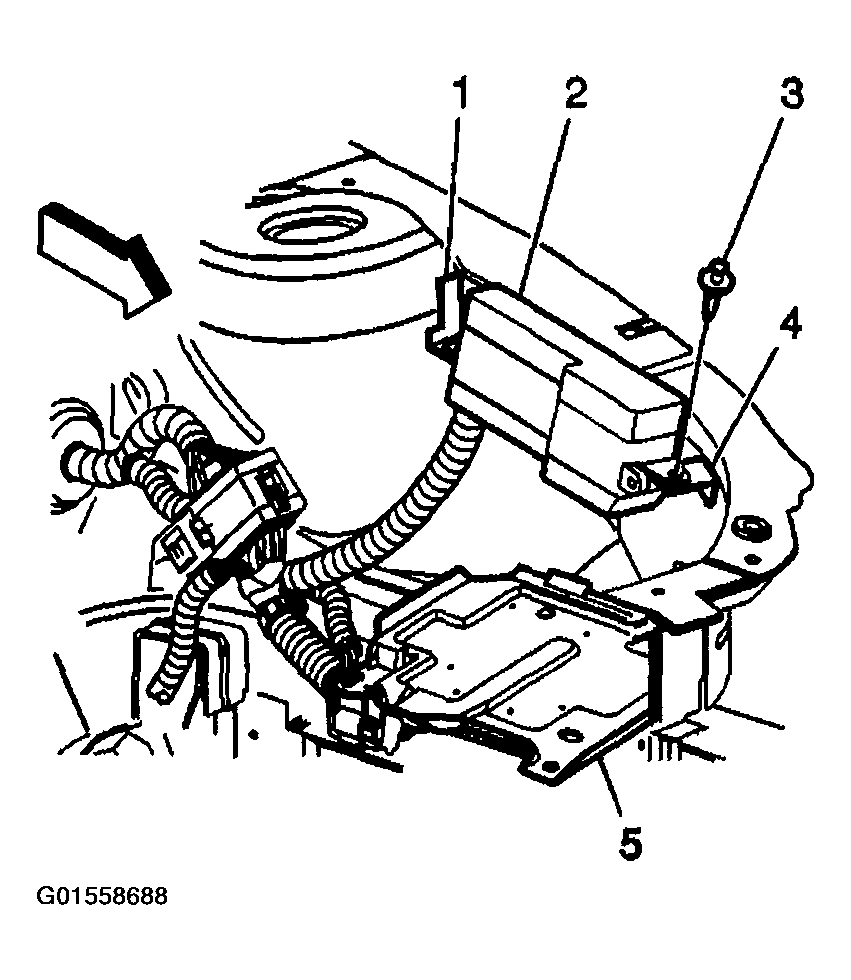

    Fig 1: Installing Electrical Center
    G01558688Courtesy of GENERAL MOTORS CORP.
