Passenger Car Zoning

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

All grounds, in-line connectors, pass-through grommets, and splices have identifying numbers that correspond to where they are located in the vehicle. The following table explains the numbering system.

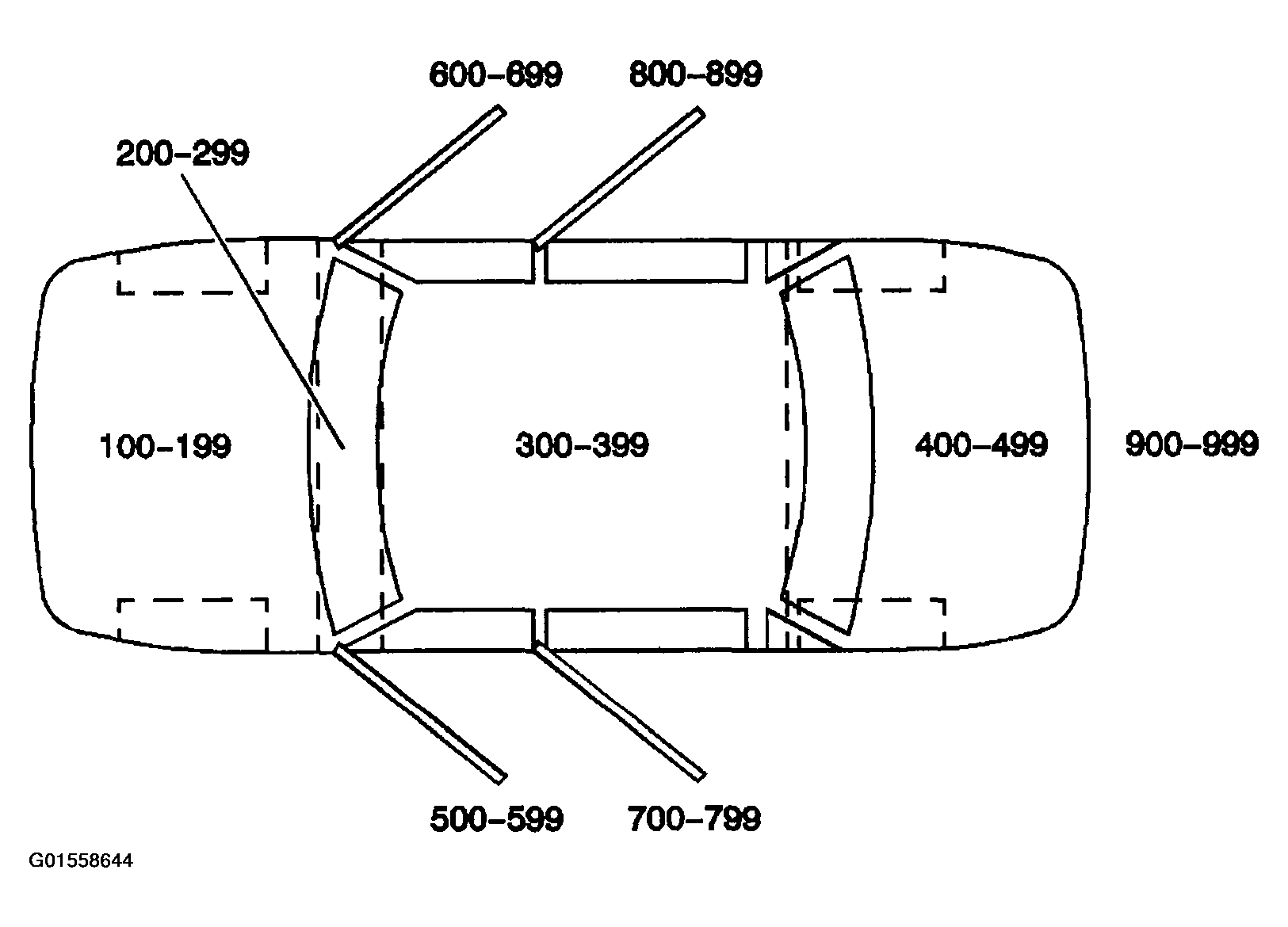

Fig 1: Locating Car Zones

Courtesy of GENERAL MOTORS CORP.

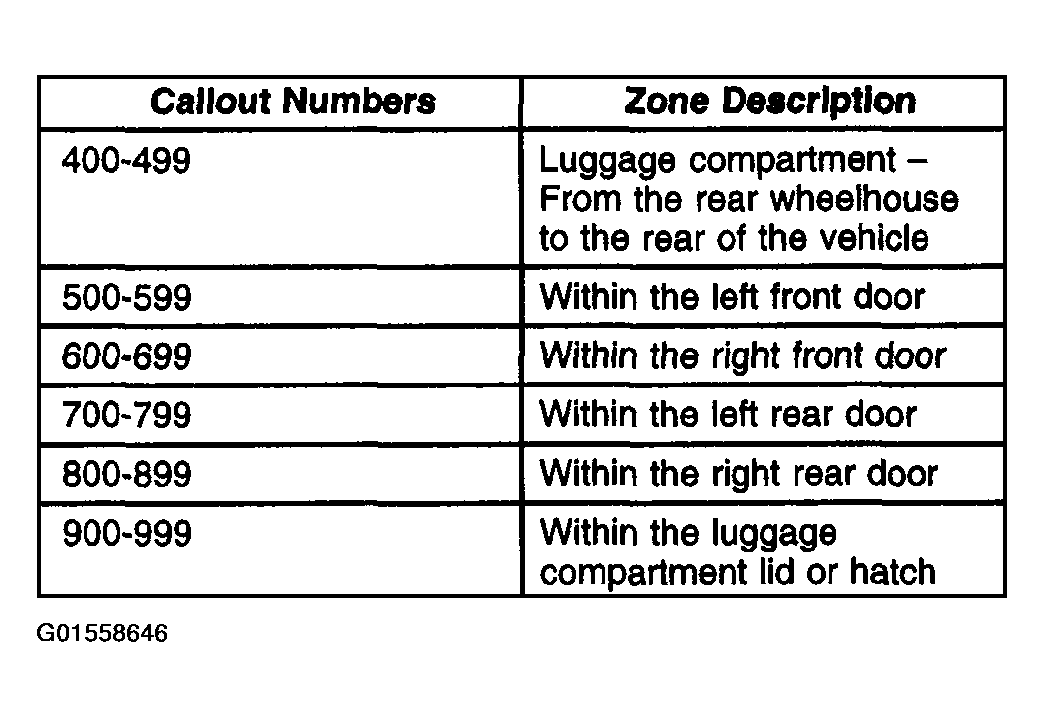

Fig 2: Vehicle Zoning Table (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

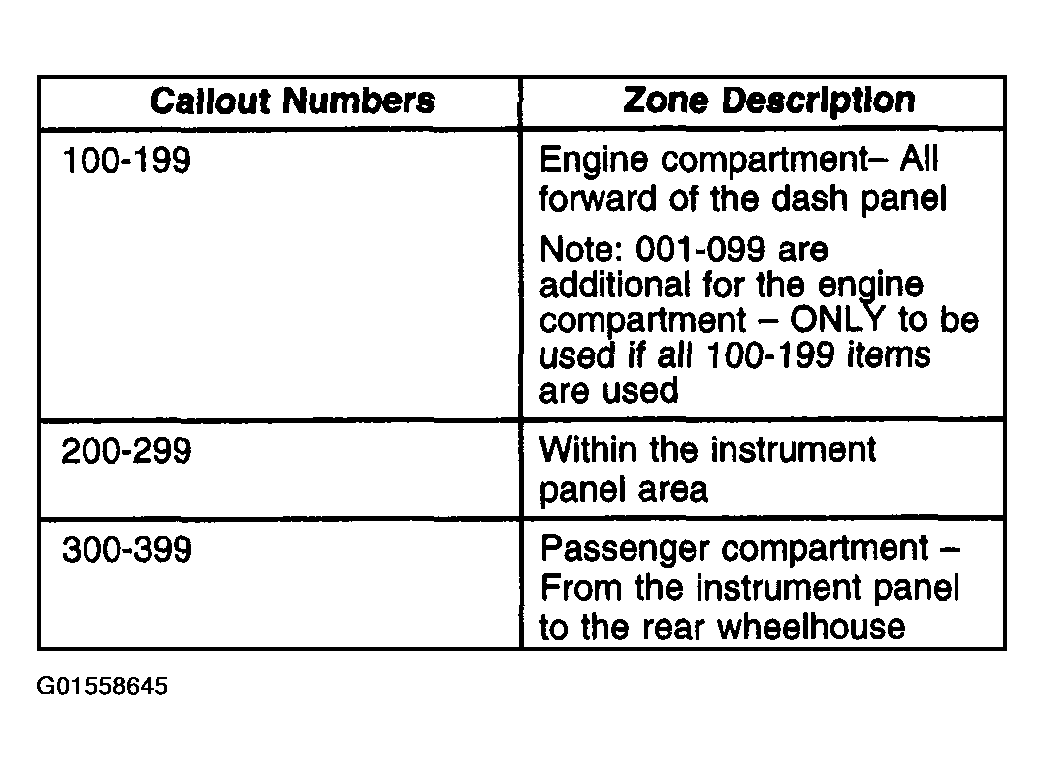

Fig 3: Vehicle Zoning Table (1 Of 2)

Courtesy of GENERAL MOTORS CORP.
