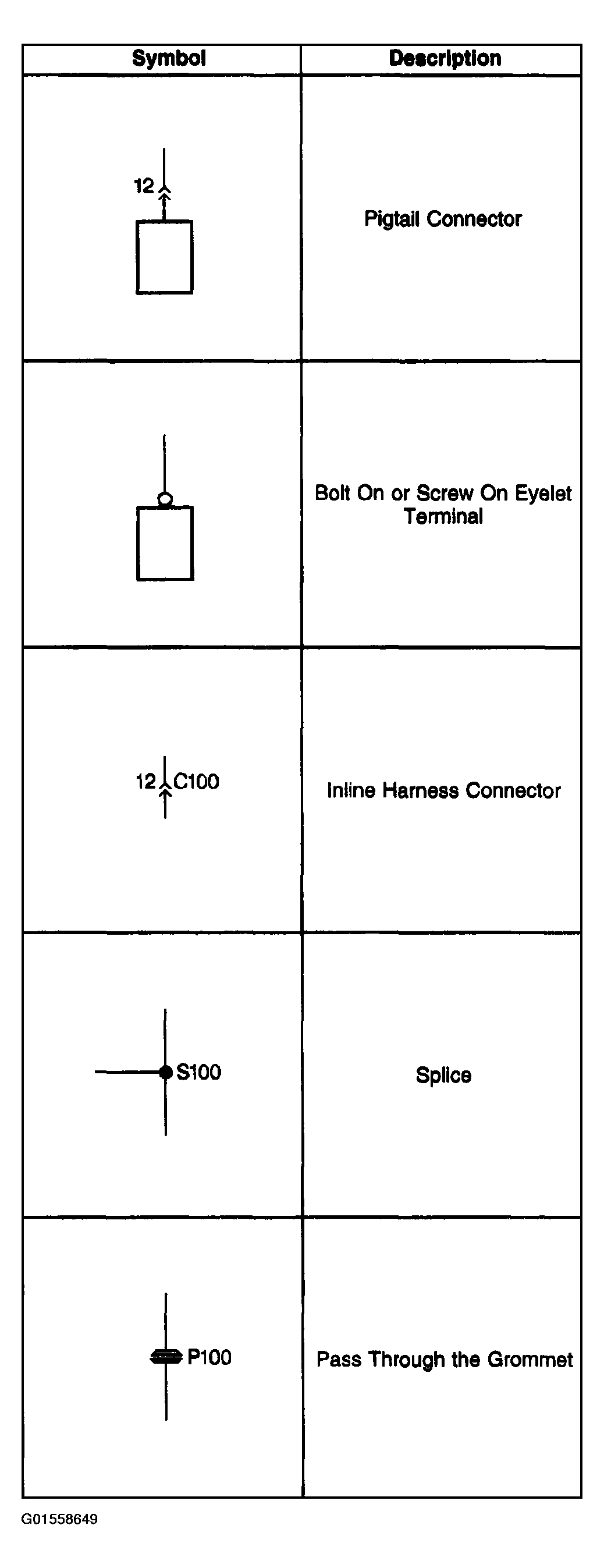

Fig 1: Electrical Symbols Description Chart (1 Of 8)
Courtesy of GENERAL MOTORS CORP.

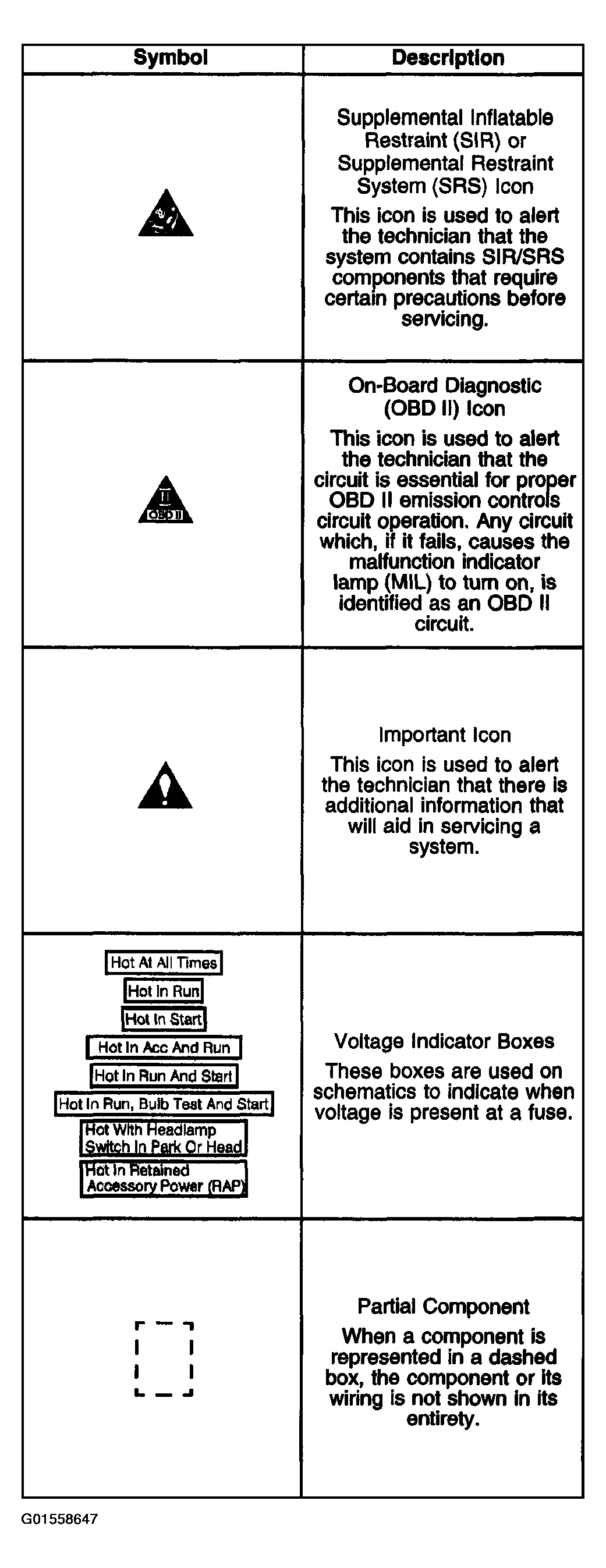

Fig 2: Electrical Symbols Description Chart (2 Of 8)
Courtesy of GENERAL MOTORS CORP.

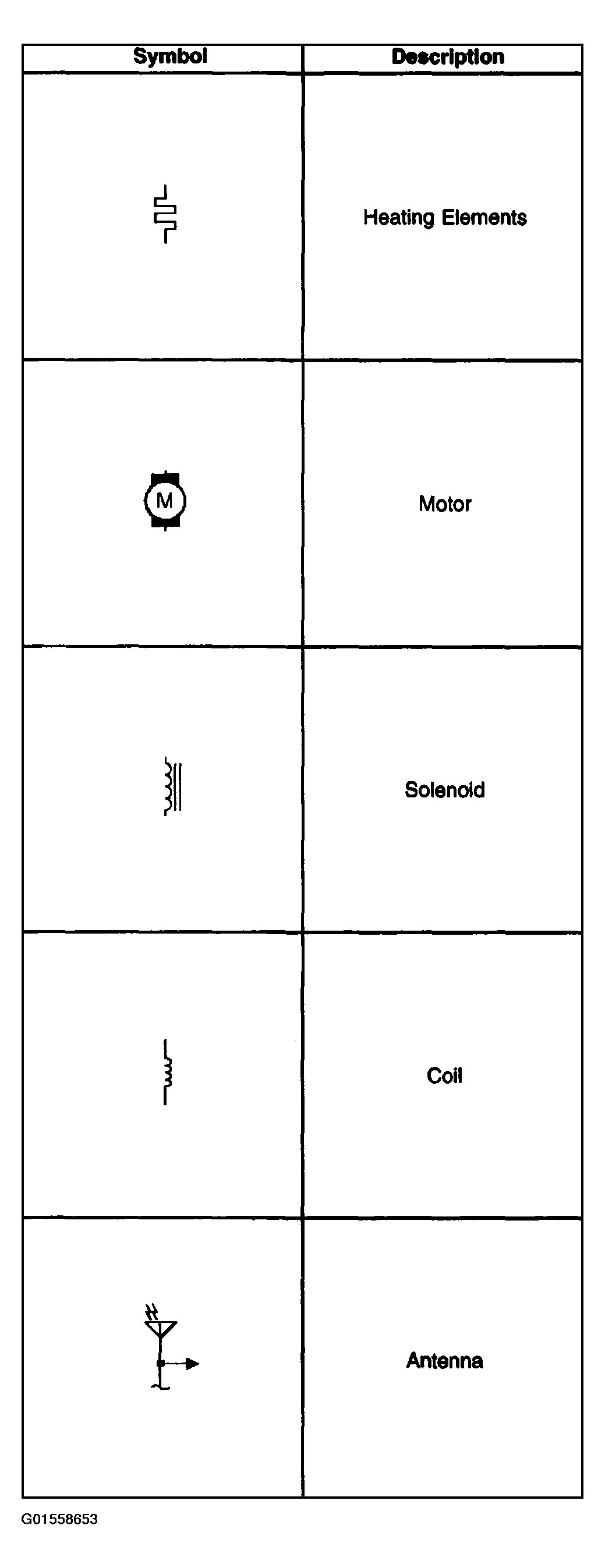

Fig 3: Electrical Symbols Description Chart (3 Of 8)
Courtesy of GENERAL MOTORS CORP.

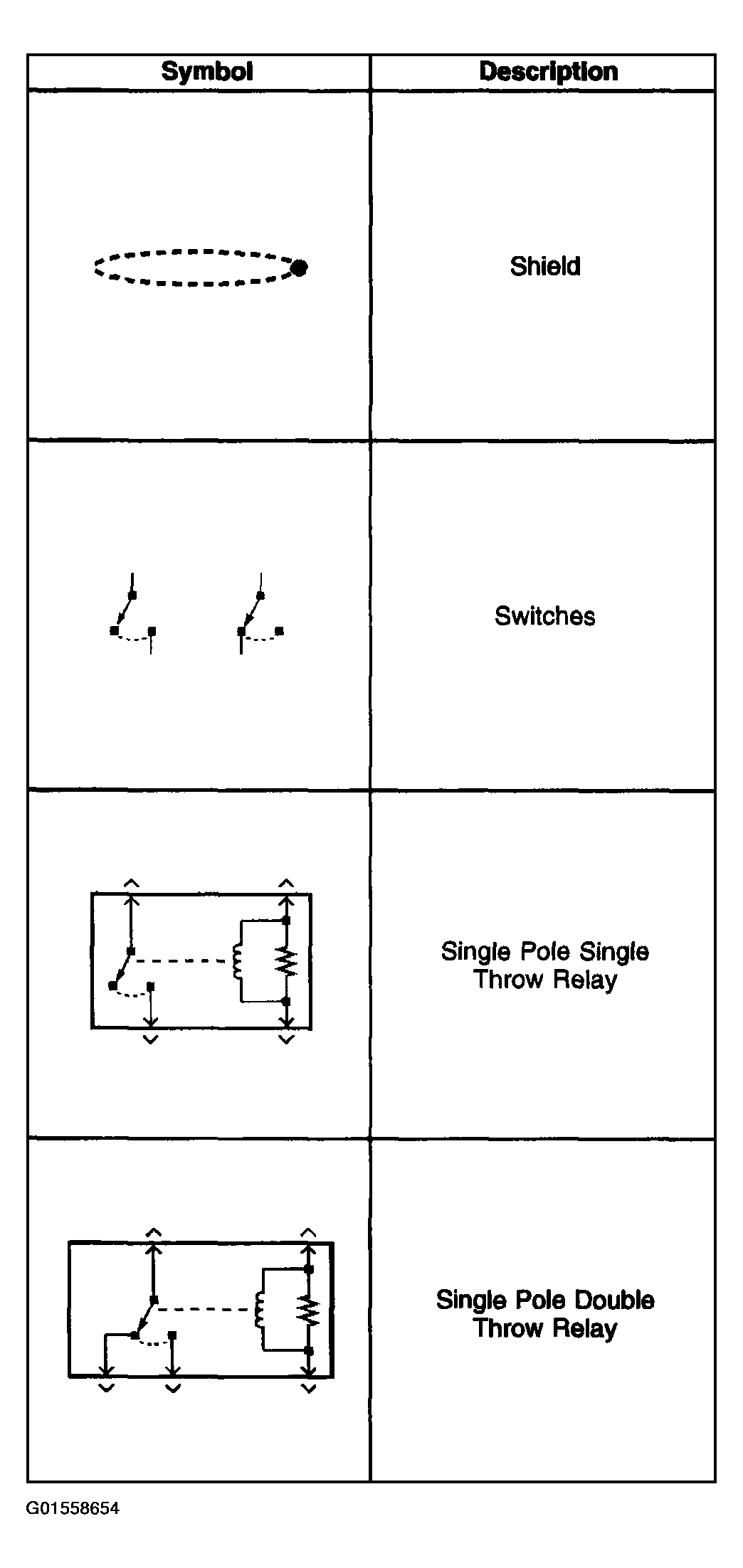

Fig 4: Electrical Symbols Description Chart (4 Of 8)
Courtesy of GENERAL MOTORS CORP.

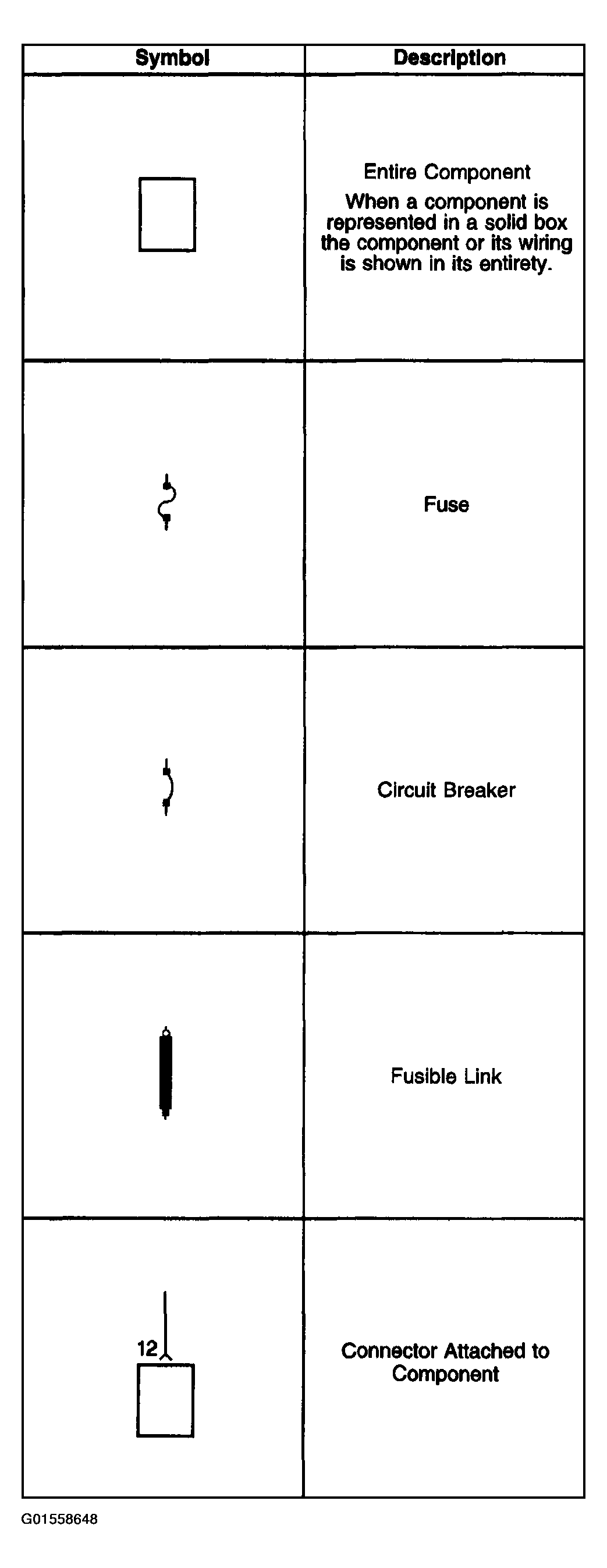

Fig 5: Electrical Symbols Description Chart (5 Of 8)
Courtesy of GENERAL MOTORS CORP.

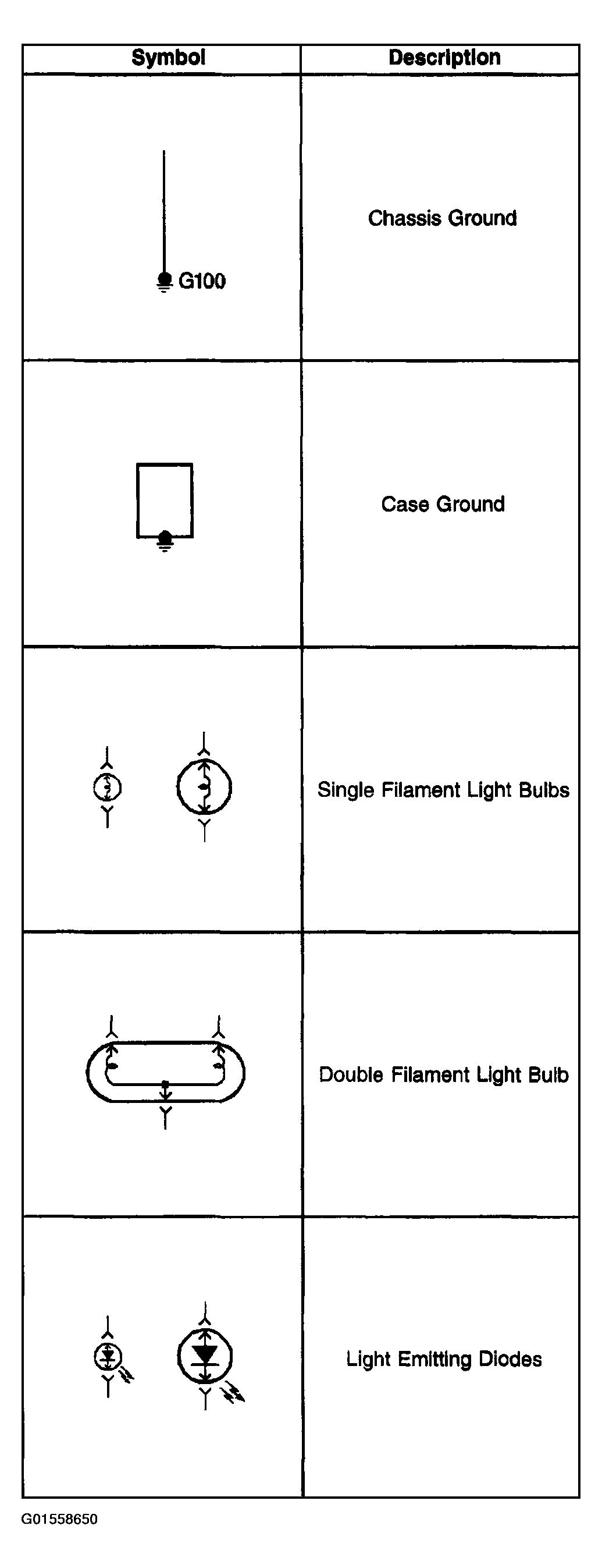

Fig 6: Electrical Symbols Description Chart (6 Of 8)
Courtesy of GENERAL MOTORS CORP.

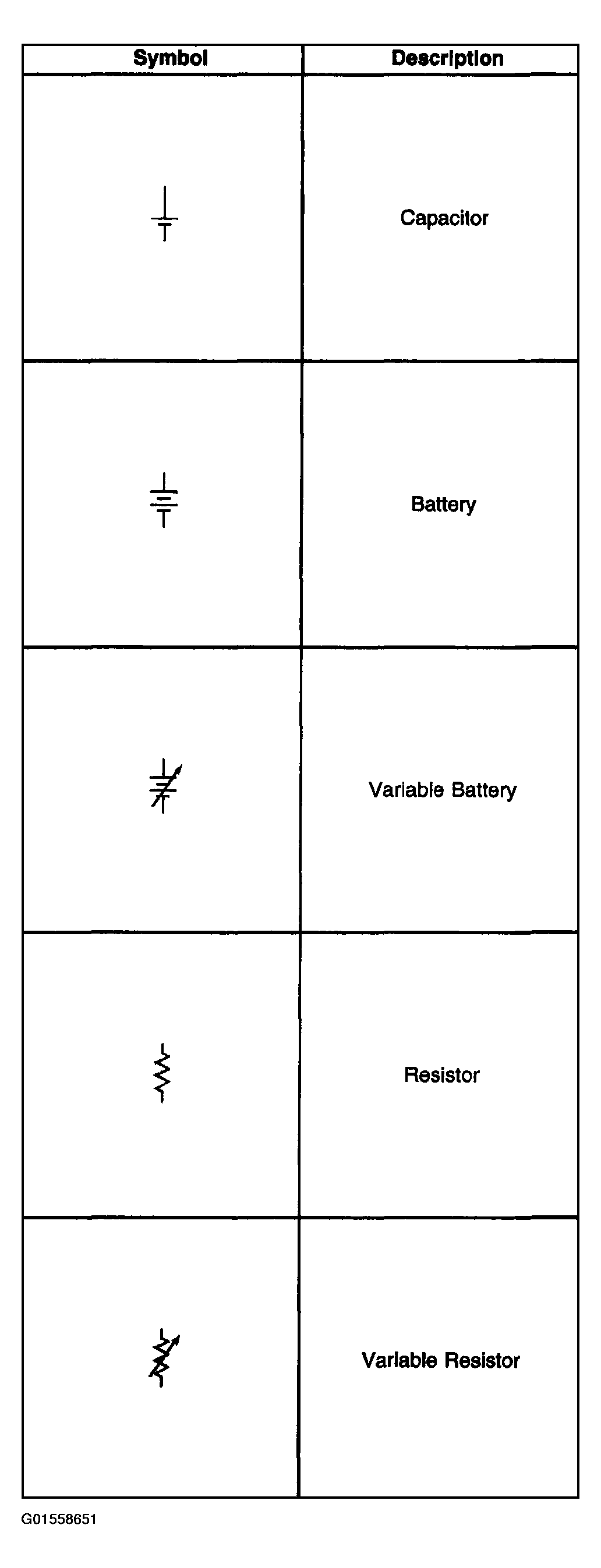

Fig 7: Electrical Symbols Description Chart (7 Of 8)
Courtesy of GENERAL MOTORS CORP.

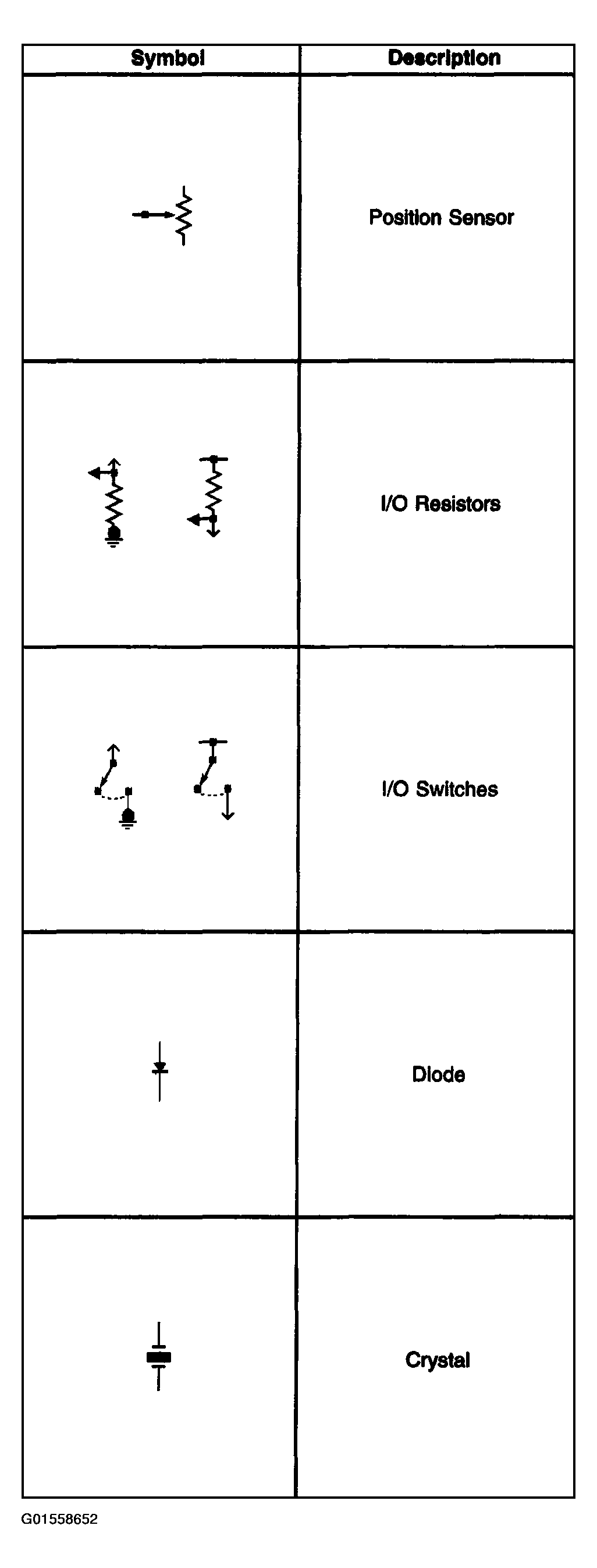

Fig 8: Electrical Symbols Description Chart (8 Of 8)
