Scan Tool Data List

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

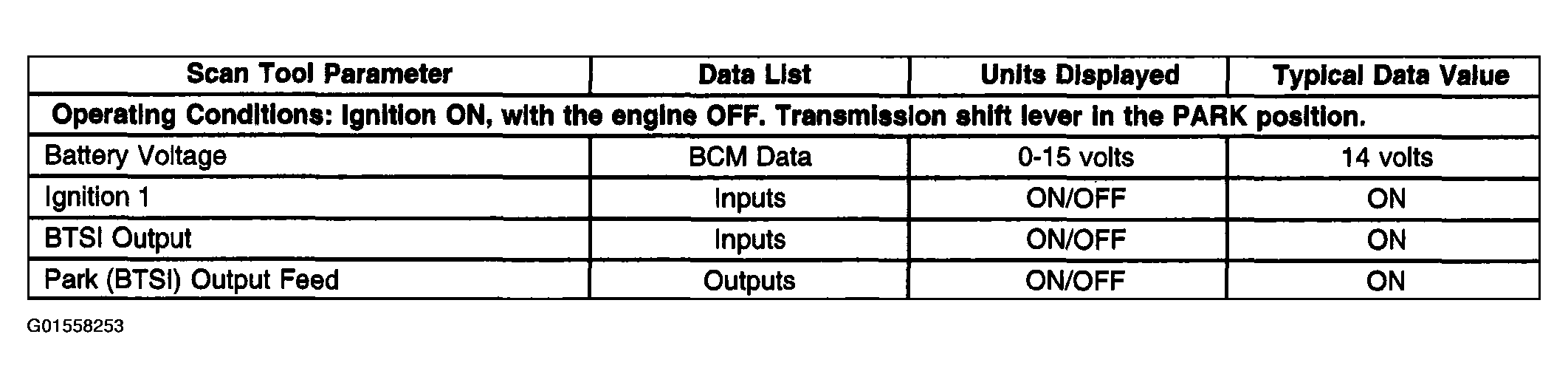

Fig 1: Scan Tool Data List (BCM)
G01558253Courtesy of GENERAL MOTORS CORP.

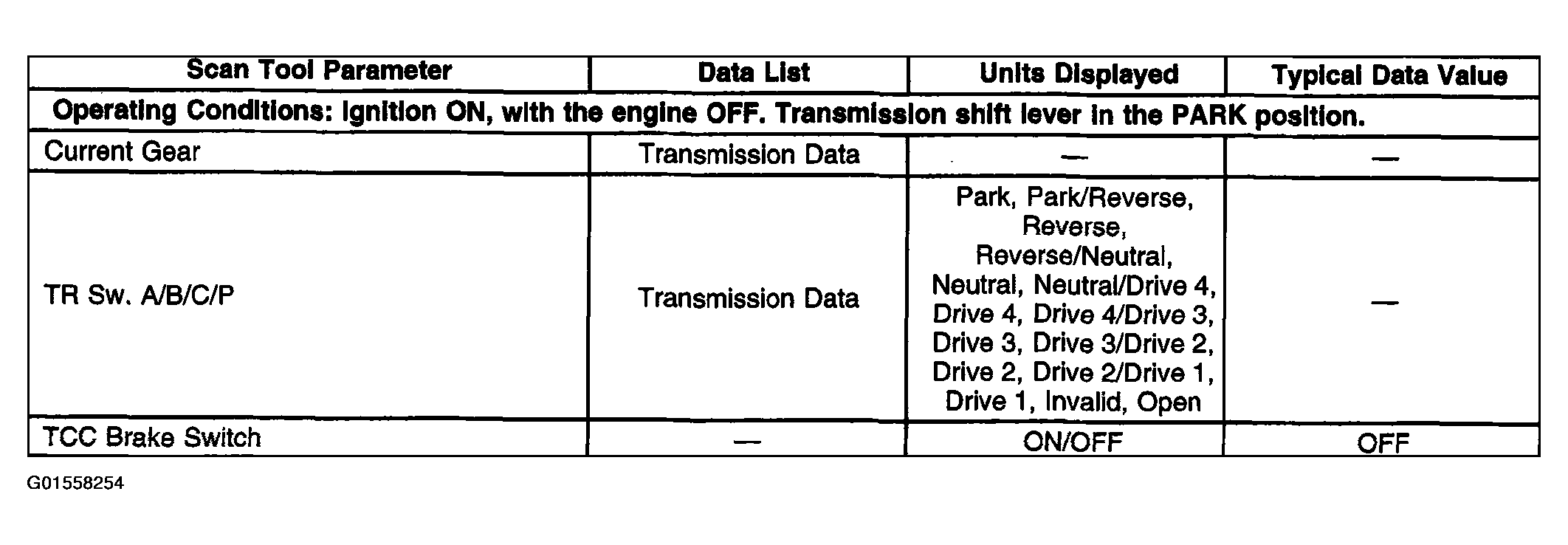

Fig 2: Scan Tool Data List (PCM)
G01558254Courtesy of GENERAL MOTORS CORP.
