Test Description
WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

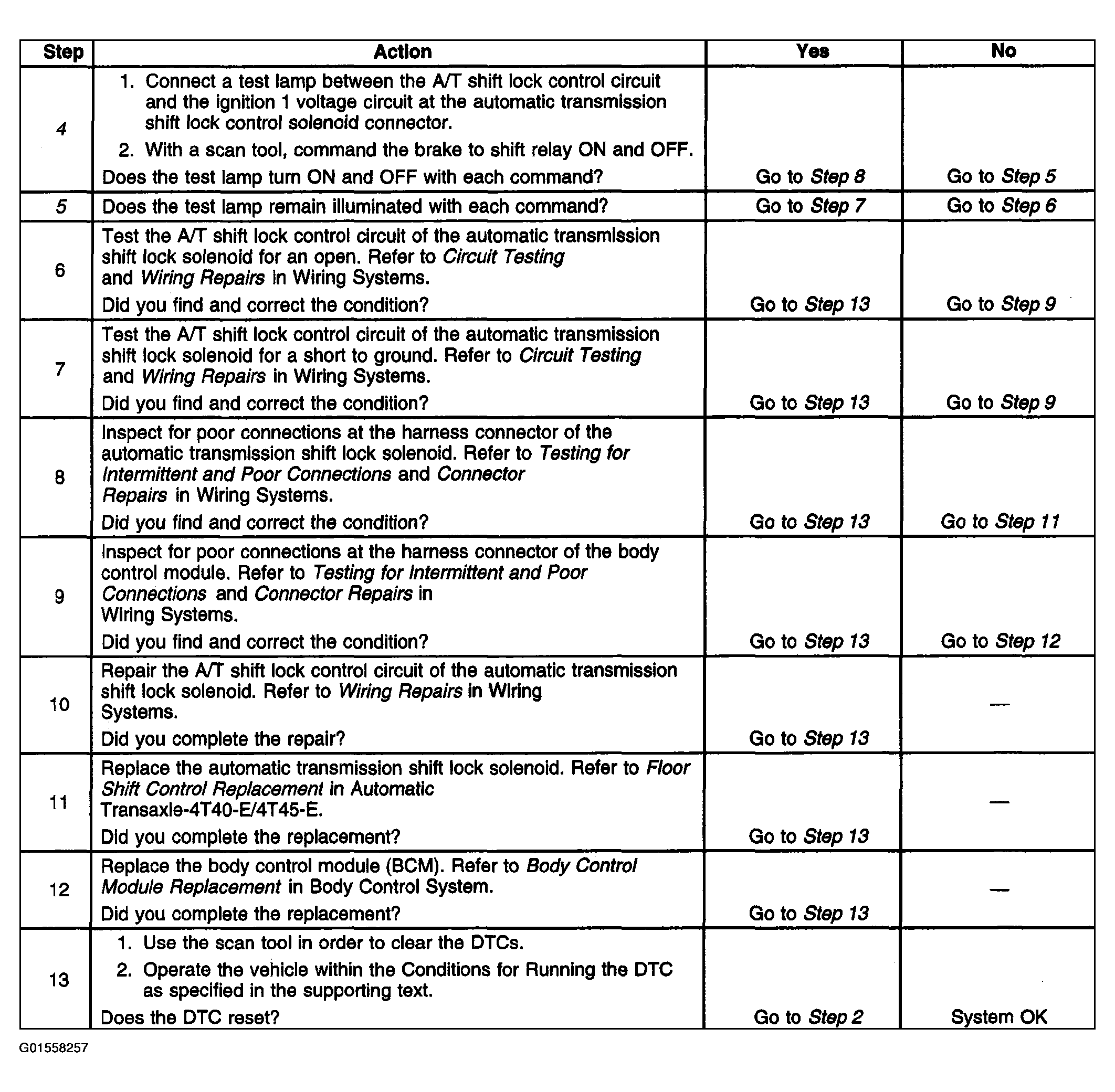

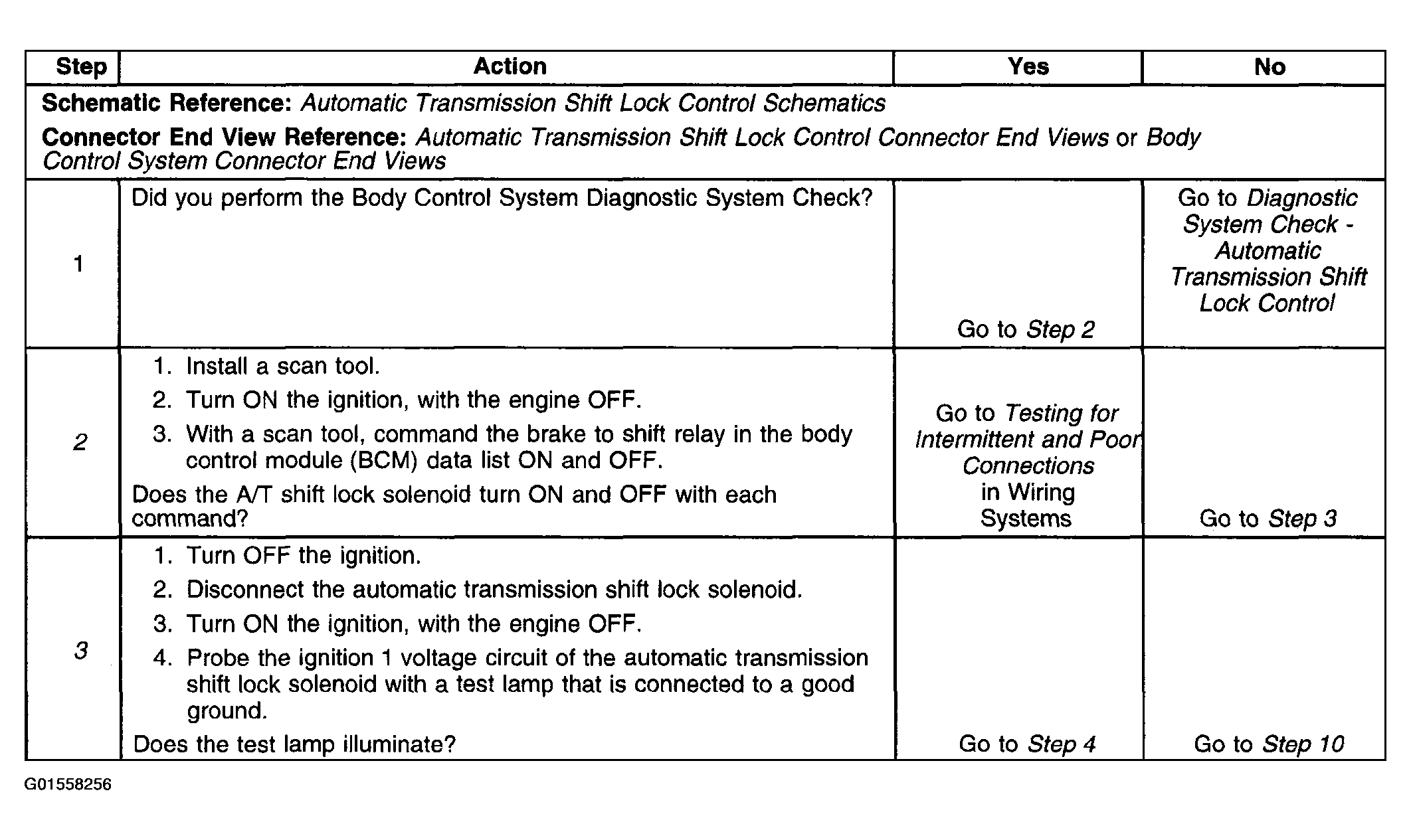

The numbers below refer to the step numbers on the diagnostic table.
2. Listen for an audible click when the automatic transmission shift lock control solenoid operates. Command both the ON and OFF states. Repeat the commands as necessary.
3. Tests for voltage at the ignition 1 voltage circuit of the automatic transmission shift lock control solenoid.
4. Verifies that the BCM is providing a ground to the automatic transmission shift lock control solenoid.
5. Tests if a ground is constantly being applied to the automatic transmission shift lock control solenoid.
