Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

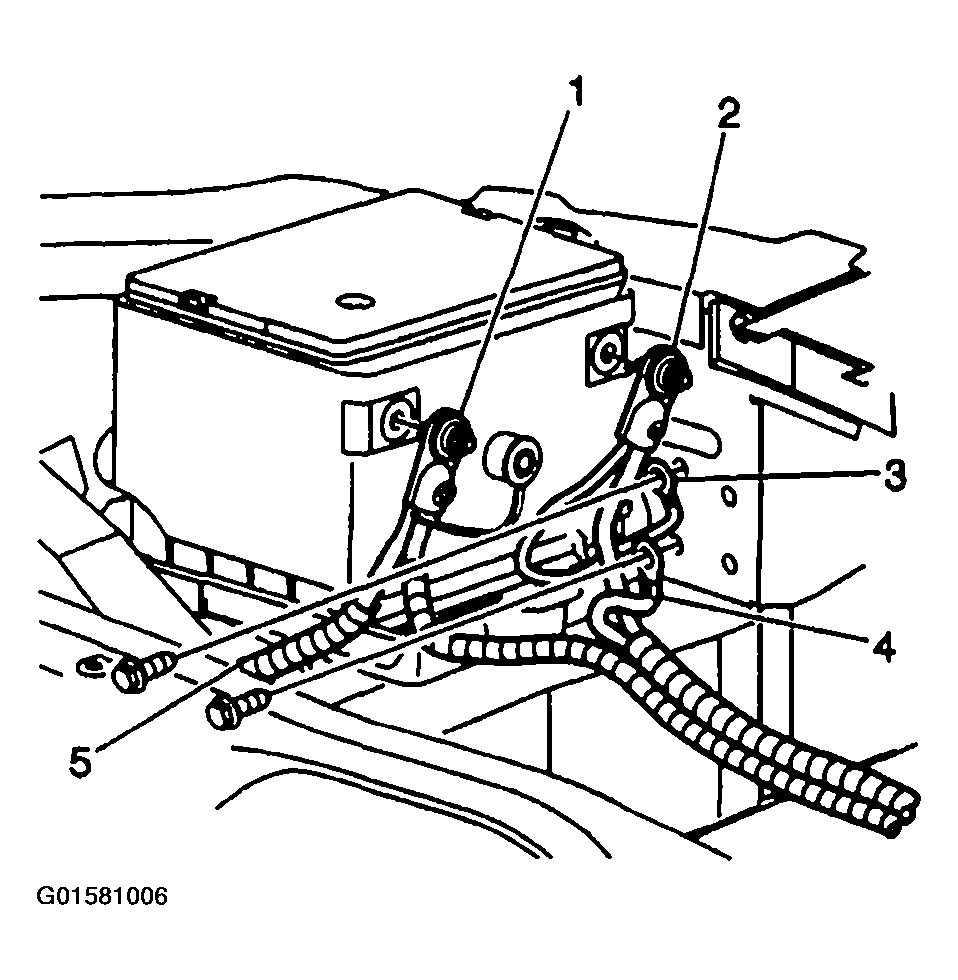

Fig 1: Removing Battery Hold Down Retainer Bolt And Retainer
G01581006Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE  .
  2. Disconnect the positive battery cable.
  3. Remove the battery hold down retainer bolt and retainer.
    IMPORTANT: Do not tip the battery more than 40 degrees during removal.

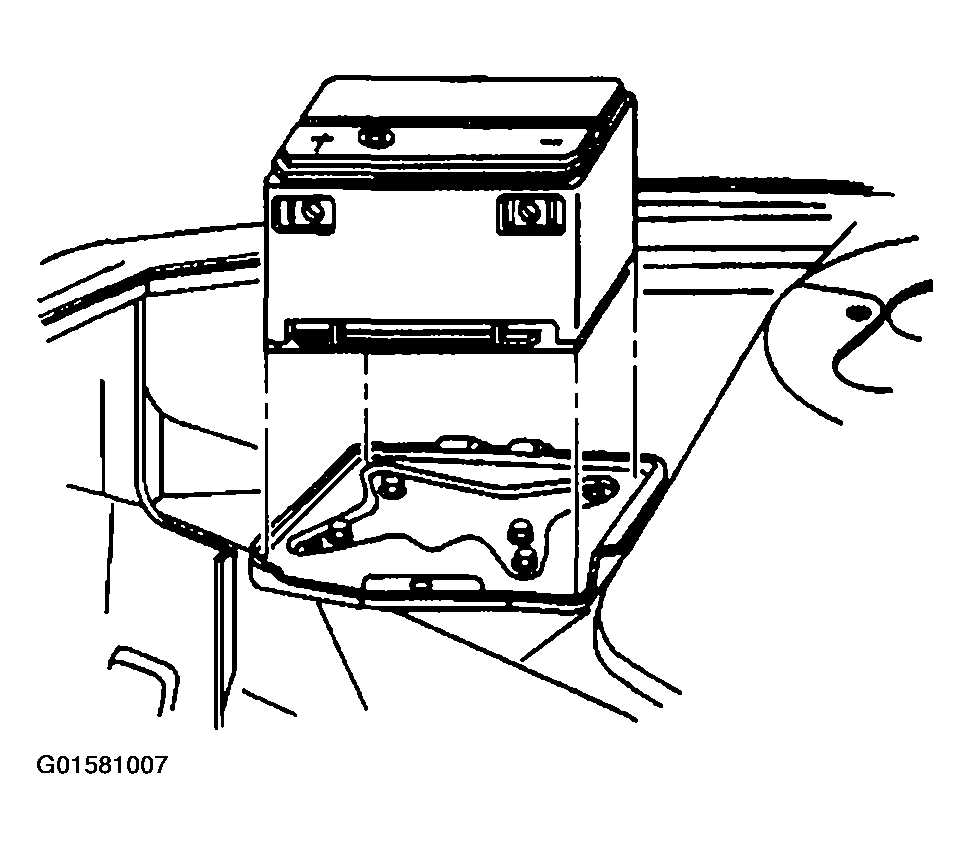

    Fig 2: Removing Battery
    G01581007Courtesy of GENERAL MOTORS CORP.
  4. Remove the battery.
