Schematic and Routing Diagrams

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

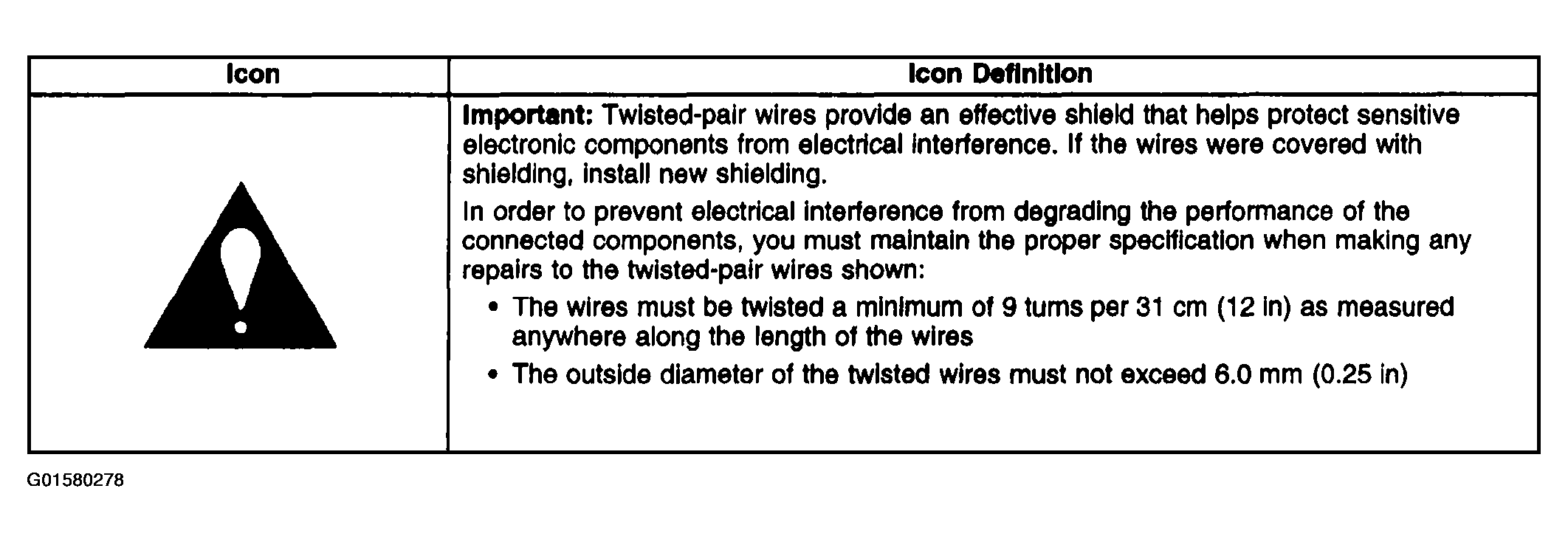

Fig 1: Identifying ABS Schematic Icons

Courtesy of GENERAL MOTORS CORP.

Fig 2: ABS Schematics (Module Power And Ground)

Courtesy of GENERAL MOTORS CORP.

Fig 3: ABS Schematics (Indicators And Switches)

Courtesy of GENERAL MOTORS CORP.

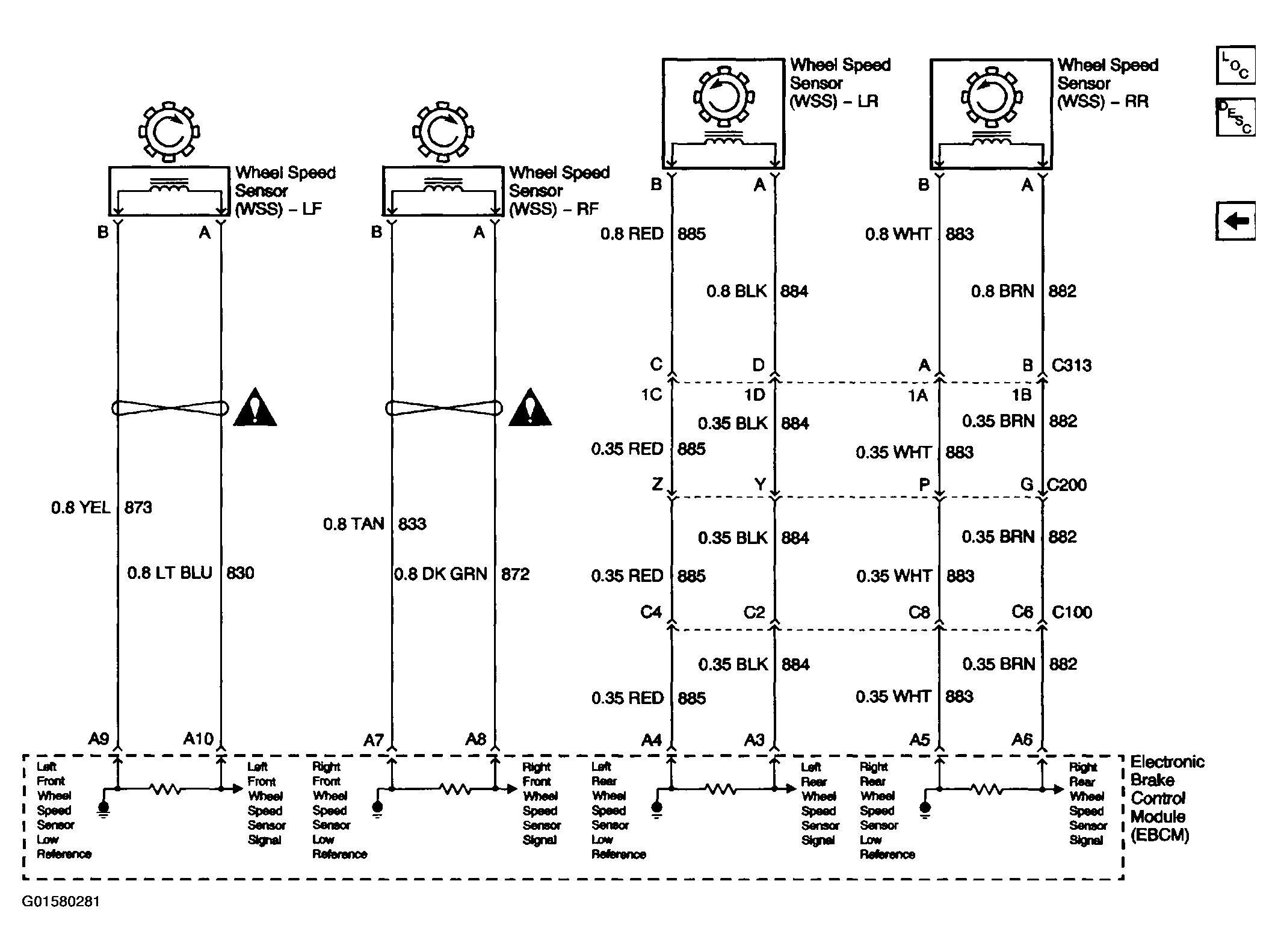

Fig 4: ABS Schematics (Wheel Speed Sensors)

Courtesy of GENERAL MOTORS CORP.
