Removal Procedure
WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
- Turn the ignition switch to the OFF position.

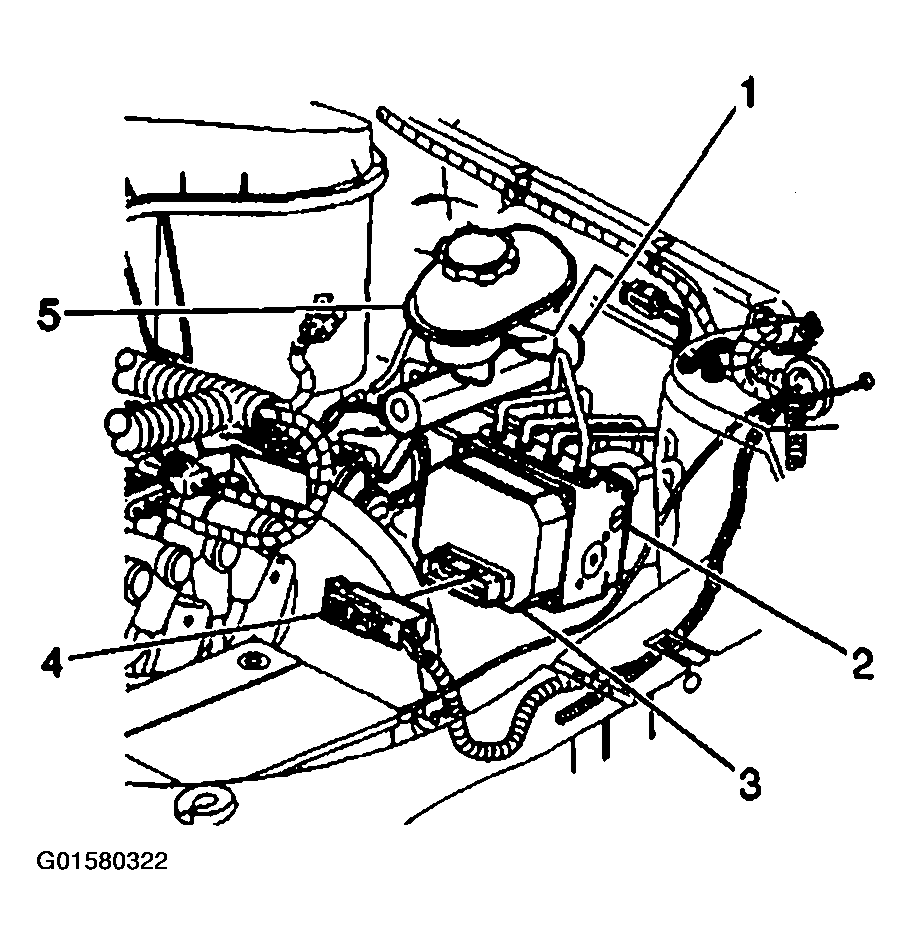

- Disengage the Connector Position Assurance (CPA) (2) from the connector.
- Push the lock tab (1) down and then move the sliding connector cover to the open position.
- Disconnect the Electronic Brake Control Module (EBCM) harness connector (4).
Courtesy of GENERAL MOTORS CORP.

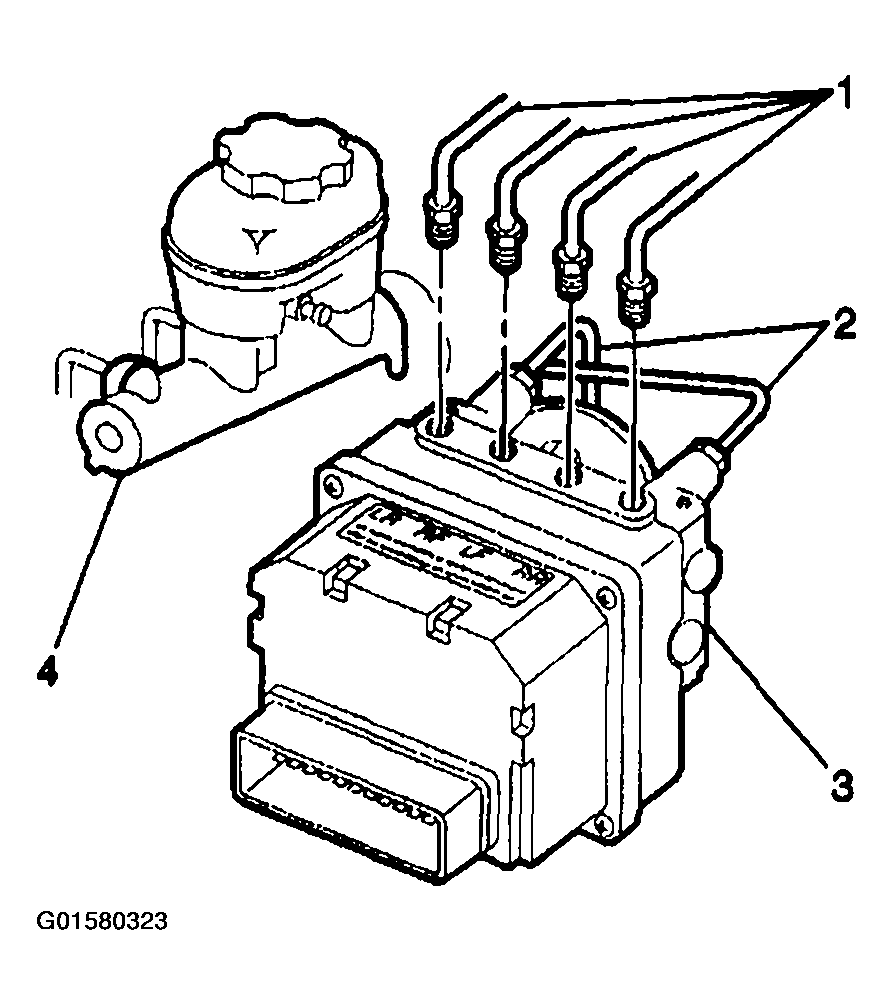

IMPORTANT: Note the locations of the brake pipes in order to aid in installation. - Disconnect the caliper and the wheel cylinder brake pipes (1) from the Brake Pressure Modulator Valve (BPMV) (3).
- Swing the caliper and the wheel cylinder brake pipes out of the way only after covering the open pipes to avoid dripping or being contaminated.
- Disconnect the master cylinder brake pipes (2) from the Brake Pressure Modulator Valve (BPMV) (3).
- Swing the master cylinder brake pipes out of the way only after covering the open pipes to avoid dripping or being contaminated.NOTE: Brake fluid will damage electrical connections and painted surfaces. Use shop cloths, suitable containers, and fender covers to prevent brake fluid from contacting these areas. Always re-seal and wipe off brake fluid containers to prevent spills.
- Remove the EBCM/BPMV assembly (4) from the vehicle.

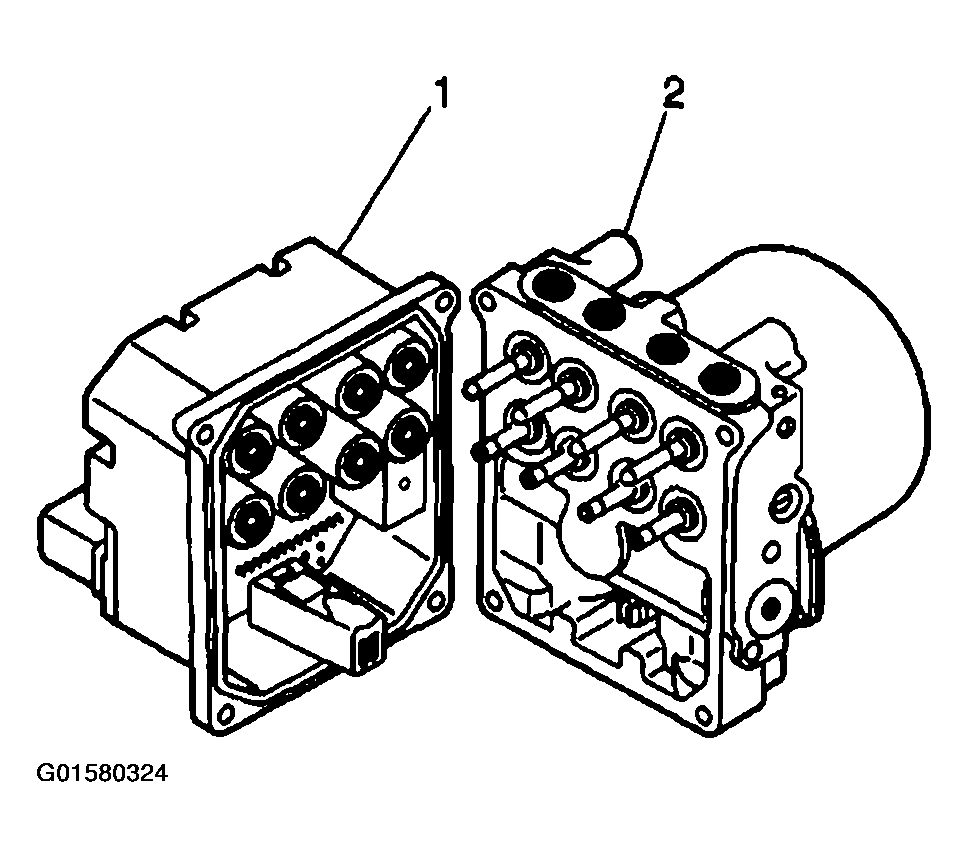

- Remove the EBCM (1) from the BPMV (2). Refer to ELECTRONIC BRAKE CONTROL MODULE (EBCM) REPLACEMENT .
