Brake Pressure Modulator Valve (BPMV) Replacement: Notes

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

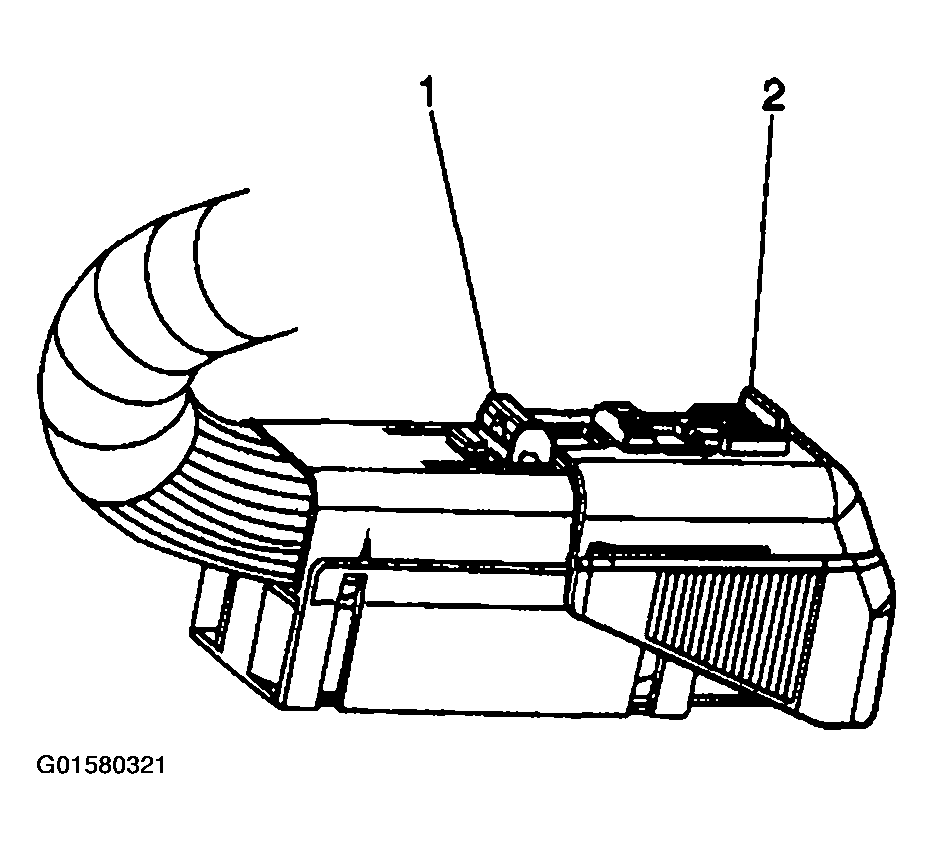

Fig 1: Disengaging Connector Position Assurance From Connector

Courtesy of GENERAL MOTORS CORP.

CAUTION: For safety reasons, the brake pressure modulator valve assembly must not be repaired, the complete unit must be replaced. With the exception of the EBCM, no screws on the brake pressure modulator valve assembly may be loosened. If screws are loosened, It will not be possible to get the brake circuits leak-tight and personal Injury may result.

CAUTION: Refer to BRAKE FLUID IRRITANT CAUTION in Cautions and Notices.

NOTE: Refer to BRAKE FLUID EFFECTS ON PAINT & ELECTRICAL COMPONENTS NOTICE in Cautions and Notices.
