Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

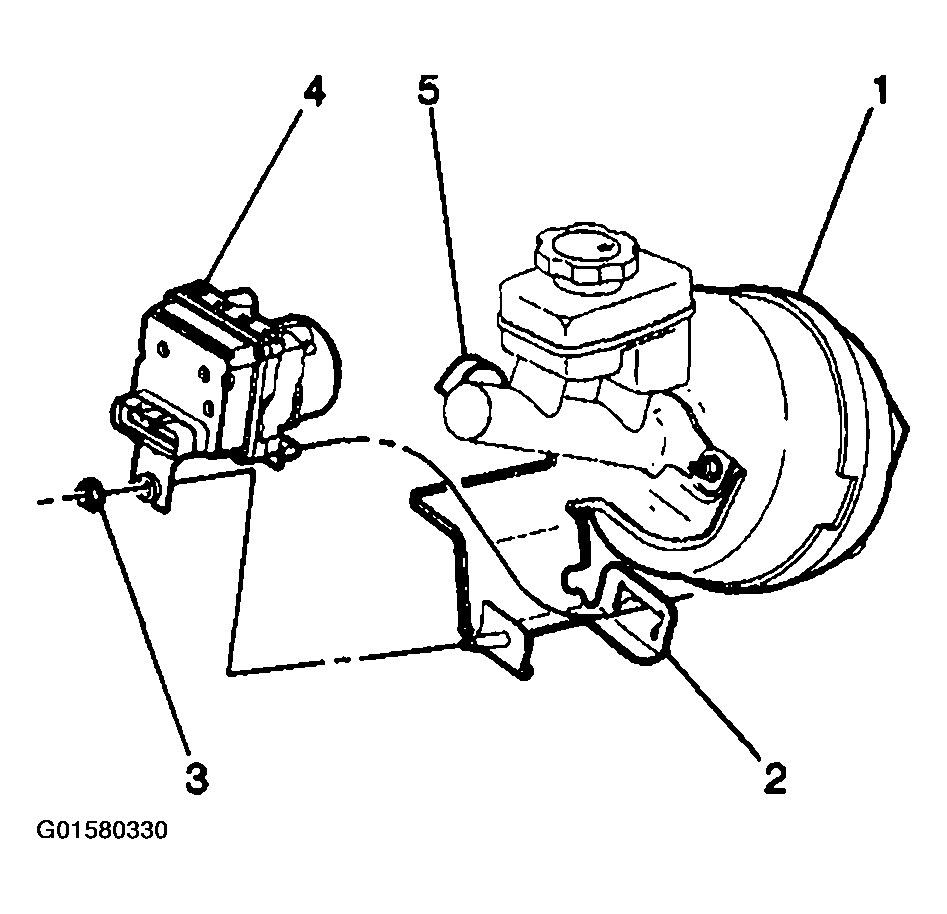

Fig 1: Removing Brake Pressure Modulator Valve Bracket
G01580330Courtesy of GENERAL MOTORS CORP.
  1. Turn the ignition switch to the OFF position.
  2. Remove the EBCM/BPMV assembly (4) from the lower BPMV bracket (2). Refer to BRAKE PRESSURE MODULATOR VALVE (BPMV) REPLACEMENT  .
  3. Remove the master cylinder attaching nuts.
  4. Move the master cylinder (5) forward just enough to clear the studs on the vacuum brake booster (1).
  5. Remove the lower BPMV bracket (2) from the vacuum brake booster (1).
