Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

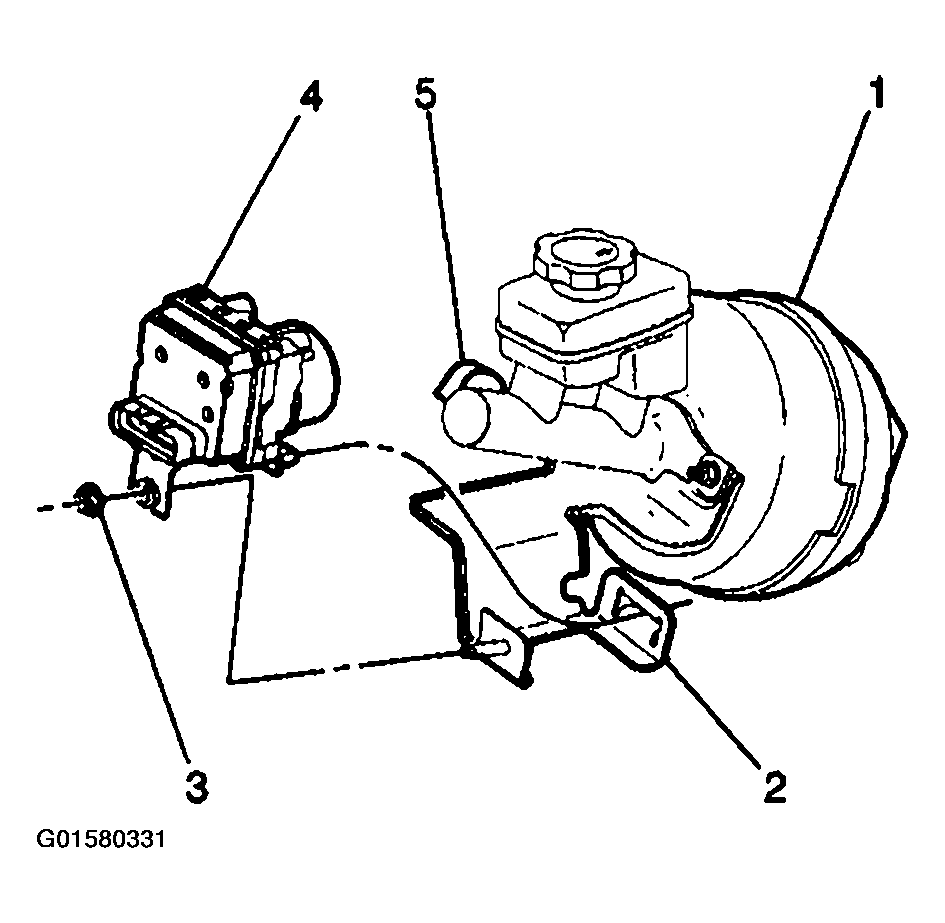

Fig 1: Installing Brake Pressure Modulator Valve Bracket
G01580331Courtesy of GENERAL MOTORS CORP.
  1. Install the lower BPMV bracket (2) to the vacuum brake booster (1).
  2. Connect the master cylinder (5) to the vacuum brake booster (1).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the master cylinder attaching nuts.

    Tighten

    Tighten the master cylinder attaching nuts to 27 N.m (20 lb ft).

  4. Install the EBCM/BPMV assembly (4) to the lower BPMV bracket (2). Refer to BRAKE PRESSURE MODULATOR VALVE (BPMV) REPLACEMENT  .
  5. Perform the ABS AUTOMATED BLEED PROCEDURE  .
  6. Perform the DIAGNOSTIC SYSTEM CHECK - ABS  .
