Test Description

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. Use the scan tool to check the normal state of the Traction Off indicator control.
  2. 3. Ensures that the instrument cluster can operate the Traction Off indicator.

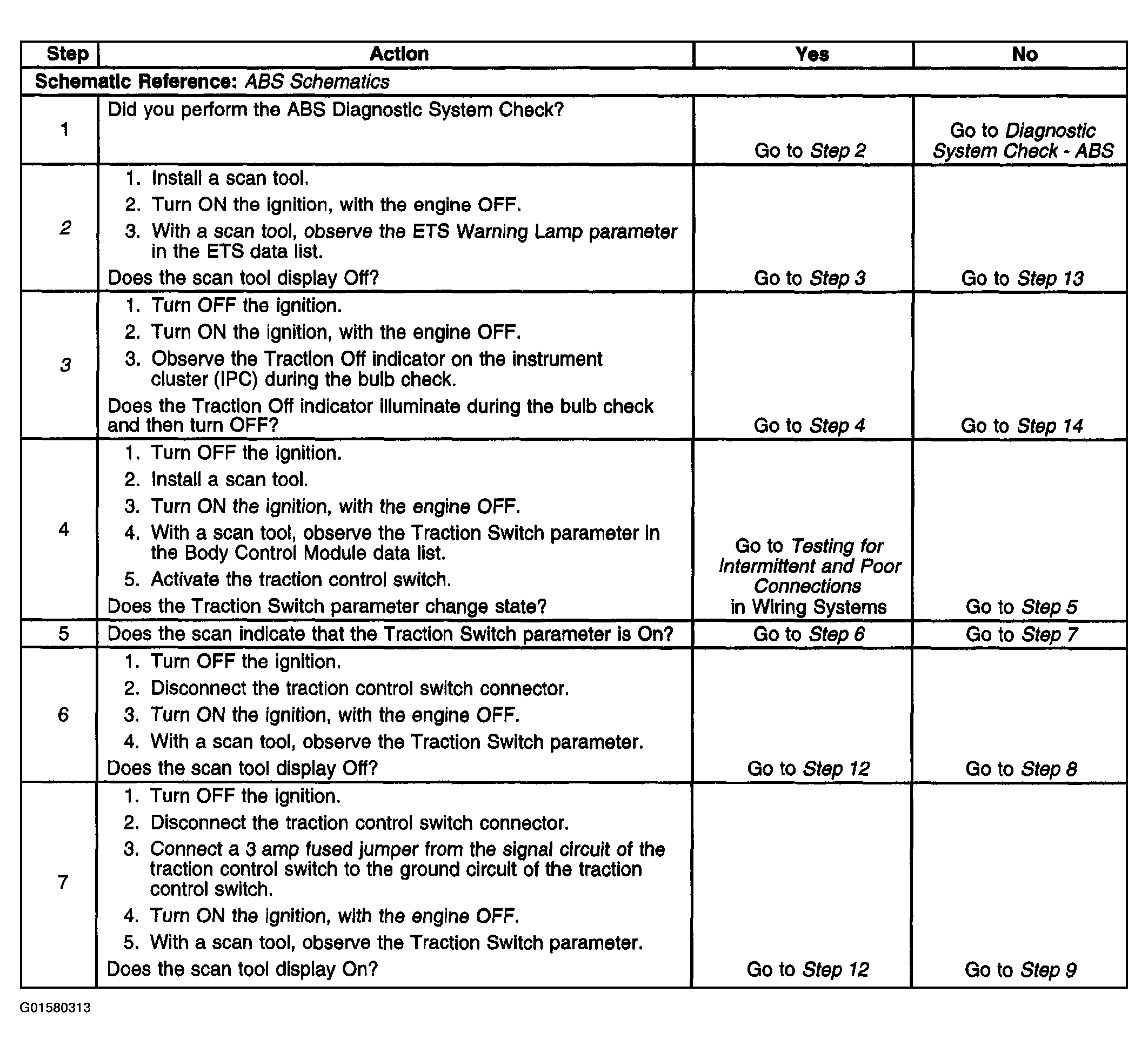

Fig 1: Traction Off Indicator Inoperative - Diagnostic Table (1 Of 2)
G01580313Courtesy of GENERAL MOTORS CORP.

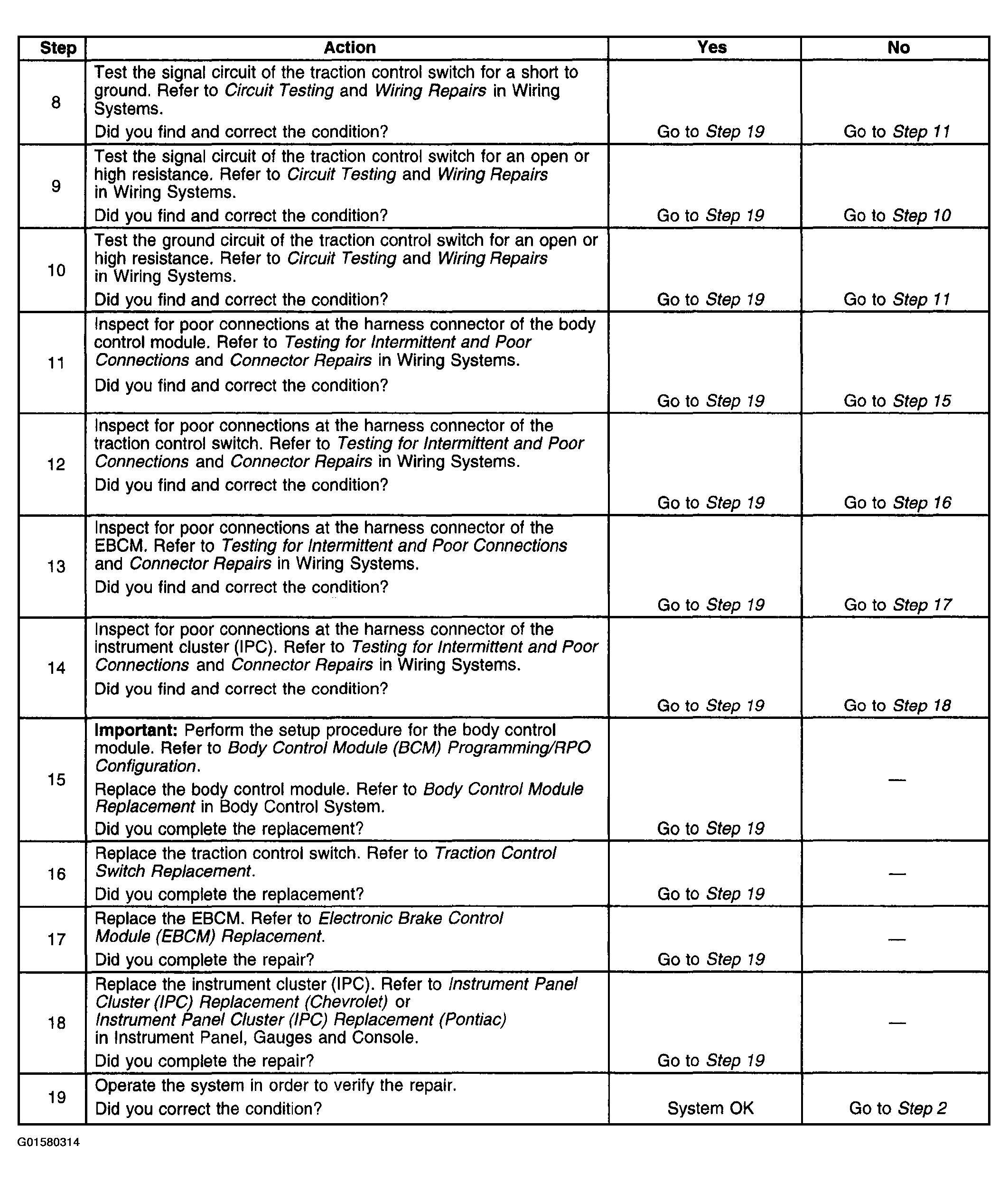

Fig 2: Traction Off Indicator Inoperative - Diagnostic Table (2 Of 2)
G01580314Courtesy of GENERAL MOTORS CORP.
