Test Description

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

  1. 2. Determines whether the DTC is current.

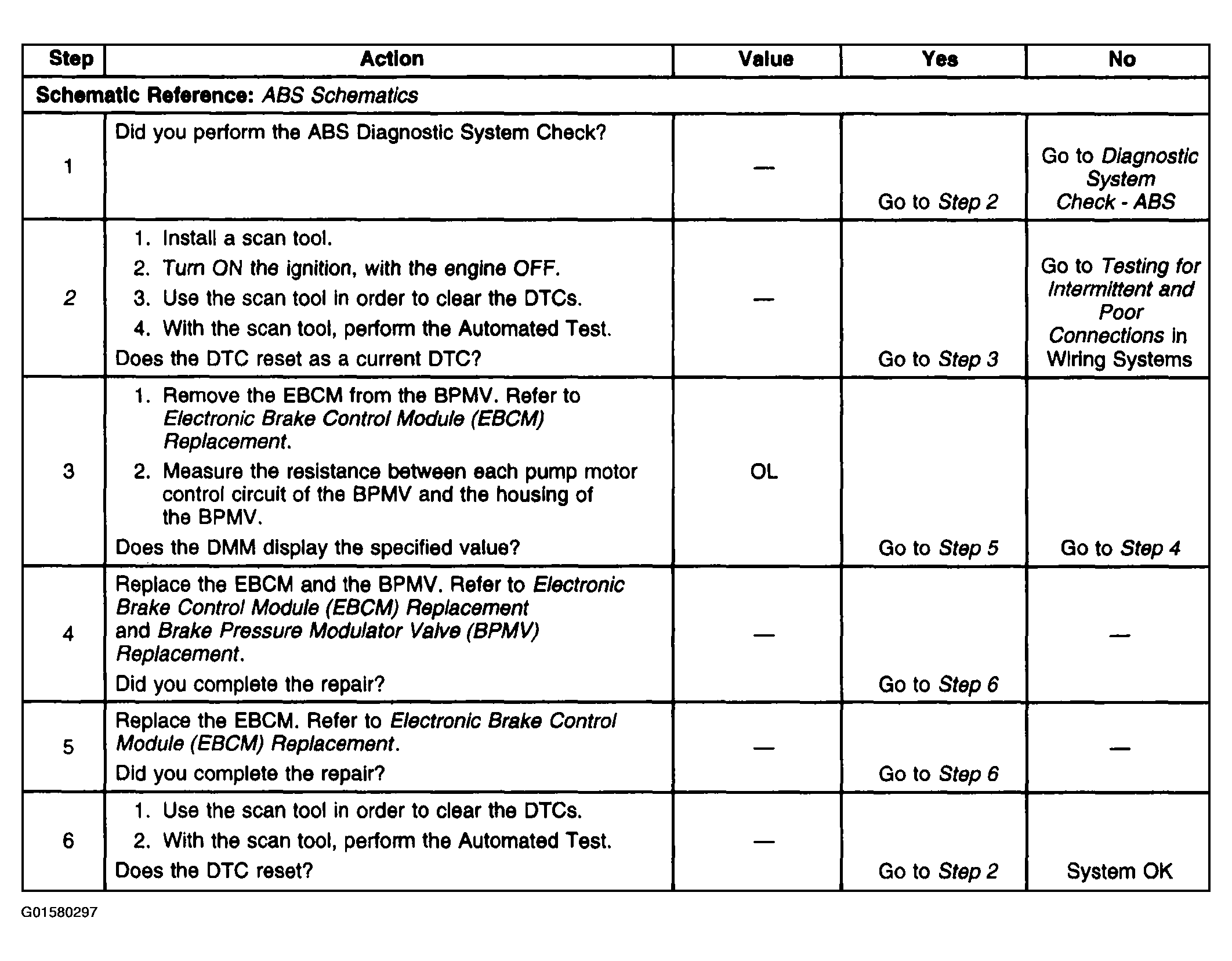

Fig 1: DTC C1214 - Diagnostic Table
G01580297Courtesy of GENERAL MOTORS CORP.
