Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

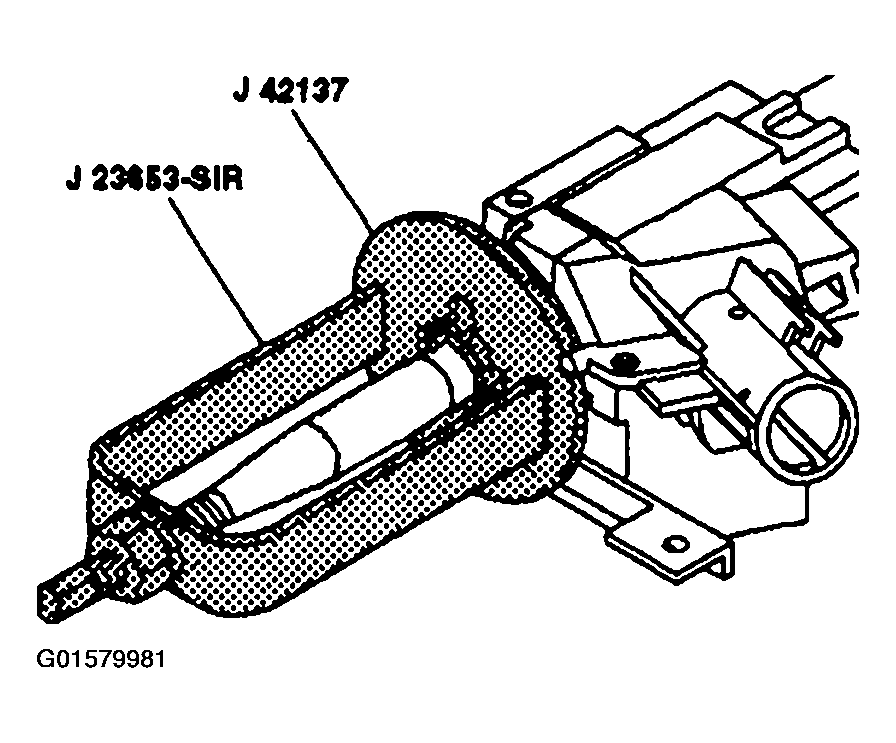

Fig 1: Removing Bearing Retainer
G01579981Courtesy of GENERAL MOTORS CORP.
CAUTION: SIR CAUTION in Cautions and Notices.
  1. Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.
  2. Remove the SIR coil. Refer to SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM
  3. Remove and discard the bearing retainer using J 23653-SIR and J 42137
  4. Remove the shaft lock (1).
    Fig 2: Removing Turn Signal Cancel Cam & Upper Bearing Thrust Washer
    G01579982Courtesy of GENERAL MOTORS CORP.
  5. Remove the turn signal cancel cam (2).
  6. Remove the upper bearing spring (3).
  7. Remove the upper bearing inner race (4).
