Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Installing Turn Signal Cancel Cam & Upper Bearing Thrust Washer
G01579983Courtesy of GENERAL MOTORS CORP.
  1. Install the upper bearing inner race (4).
  2. Install the upper bearing spring (3).
  3. Install the turn signal cancel cam (2).
  4. Lubricate the turn signal cancel cam (2) with GM P/N 12377900 (Canadian P/N 10953529).
  5. Install the bearing retainer using J 23653-SIR and J 42137.

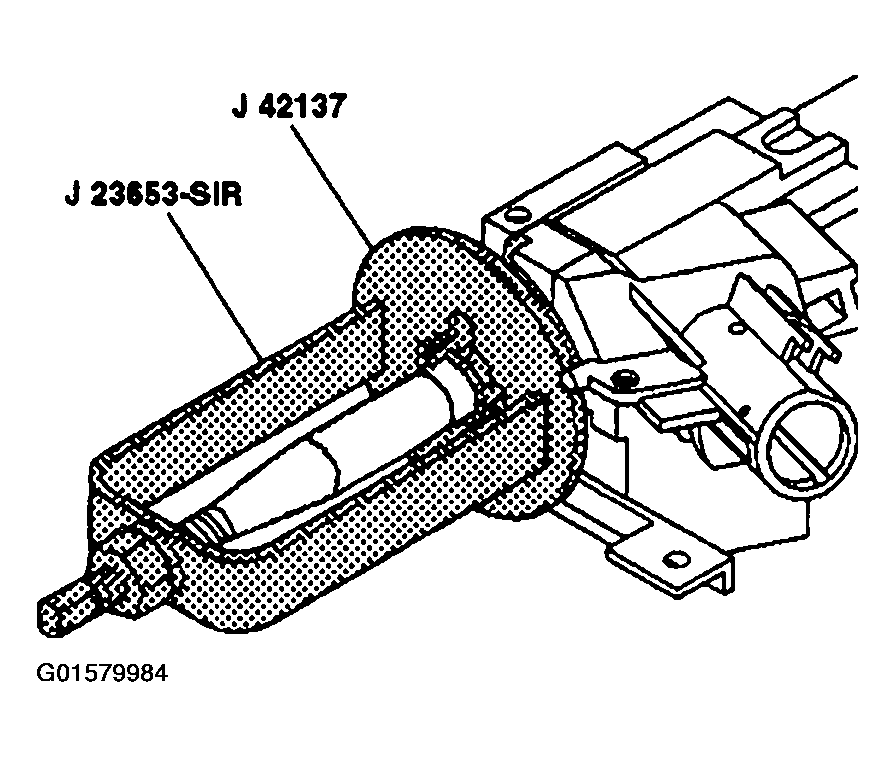

    Fig 2: Installing Bearing Retainer
    G01579984Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to SIR INFLATOR MODULE COIL CAUTION in Caution and Notices.
  6. Install the SIR coil. Refer to SIR COIL ASSEMBLY (SEDAN) .
  7. Enable the SIR system. Refer toDISABLING & ACTIVATING AIR BAG SYSTEM in SIR.
