Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

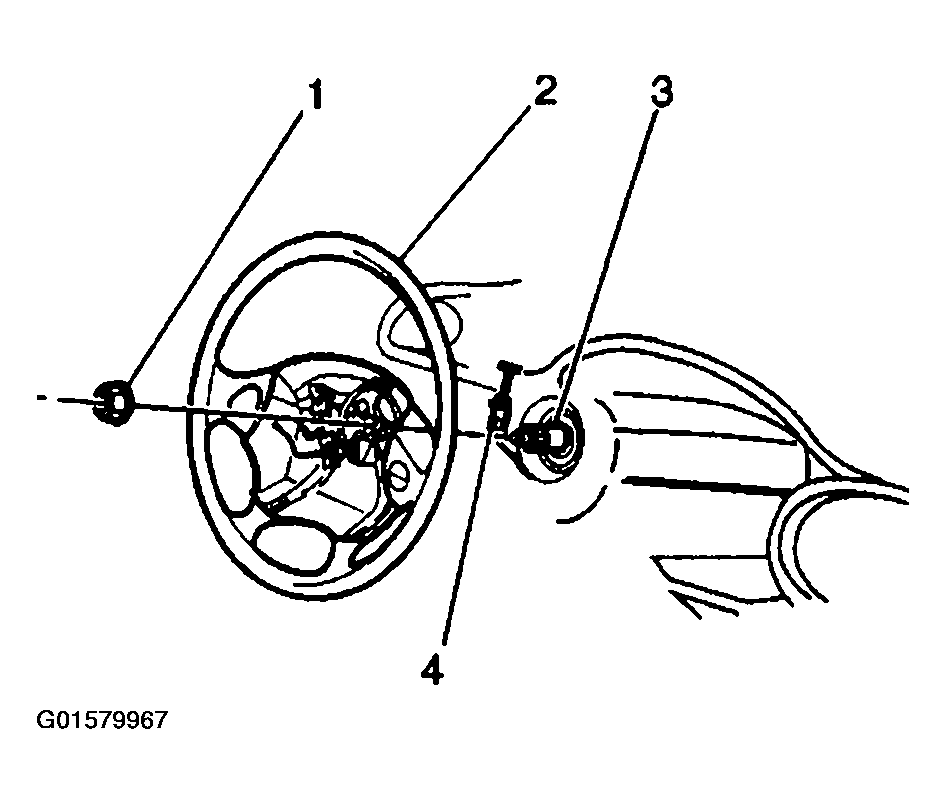

Fig 1: Removing Steering Wheel Nut
G01579967Courtesy of GENERAL MOTORS CORP.
CAUTION: SIR CAUTION in Cautions and Notices.
  1. Disconnect the negative battery cable.
    CAUTION: SIR CAUTION in Cautions and Notices.
  2. Disable the supplemental inflatable restraint (SIR) system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.
  3. Remove the steering wheel inflatable restraint module. Refer to SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM in SIR.
  4. Remove the steering wheel nut (1).
  5. Remove the steering wheel using J 1859-A  and J 42578.  .

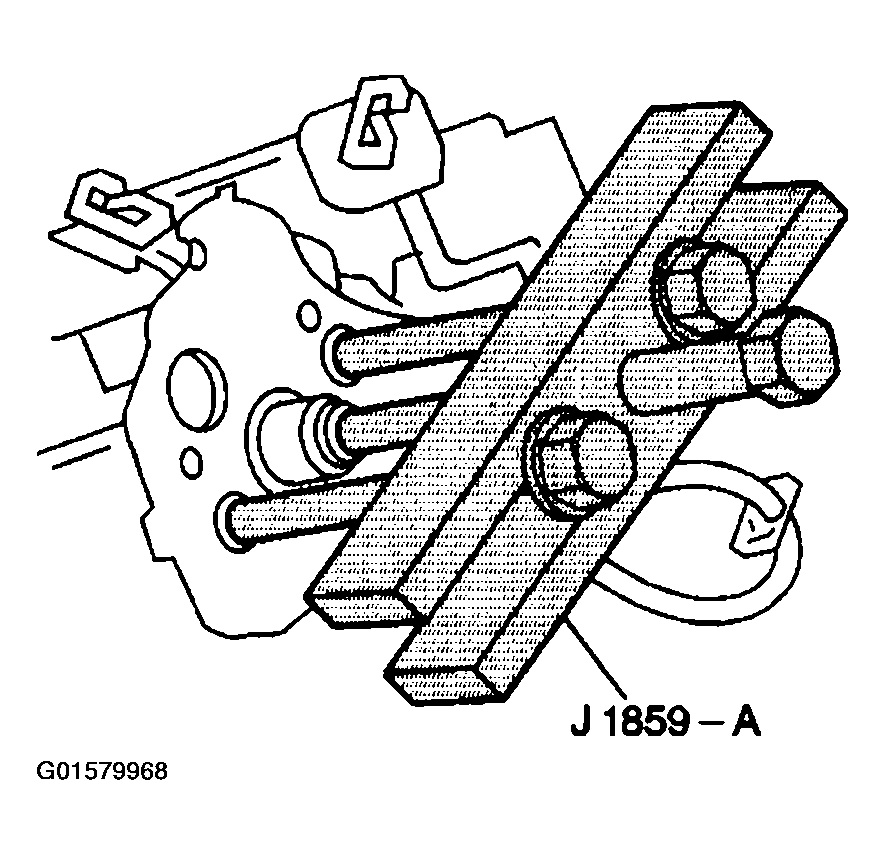

    Fig 2: Installing Steering Wheel Puller
    G01579968Courtesy of GENERAL MOTORS CORP.
  6. Remove the steering wheel (2) from the steering column (3).
    Fig 3: Removing Steering Wheel From Steering Column
    G01579969Courtesy of GENERAL MOTORS CORP.
