Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

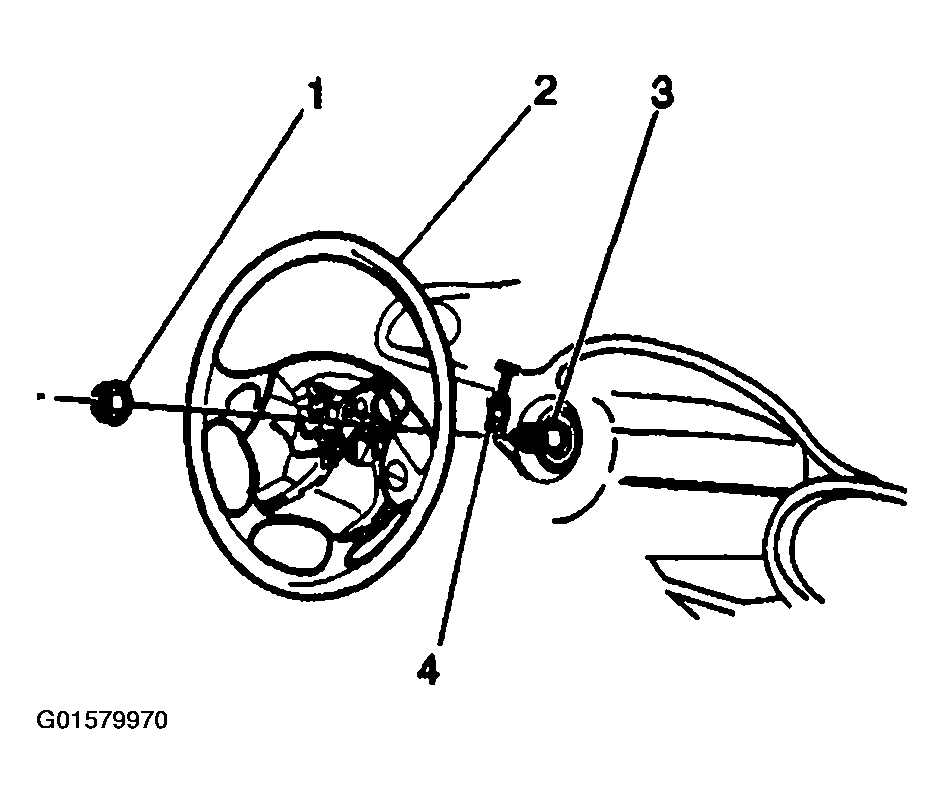

Fig 1: Installing Steering Wheel To Column
G01579970Courtesy of GENERAL MOTORS CORP.
  1. Install the steering wheel (2) to the column (3).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the steering wheel nut (1).

    Tighten

    Tighten the nut to 41 N.m (30 lb ft).

  3. Install the inflatable restraint steering wheel module. Refer to SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM in SIR.
  4. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.
  5. Connect the negative battery cable.
