Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

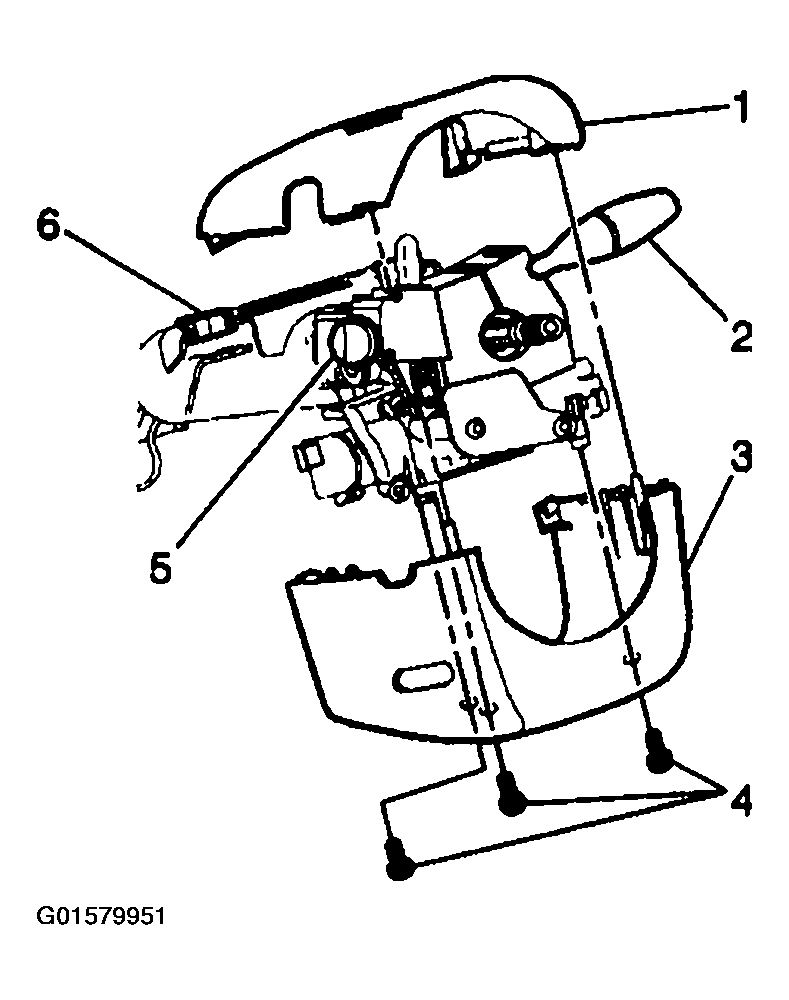

Fig 1: Removing Steering Column Trim Covers
G01579951Courtesy of GENERAL MOTORS CORP.
  1. Remove the tilt lever, if applicable, Refer t TILT LEVER REPLACEMENT  .
  2. Remove the retaining screws (4) from the lower column trim cover (3).
  3. Remove the upper column trim cover (1) by tilting up and unsnapping from the lower column trim cover hinges (3).
  4. Remove the lower column trim cover (3) from the steering column (6).
