Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

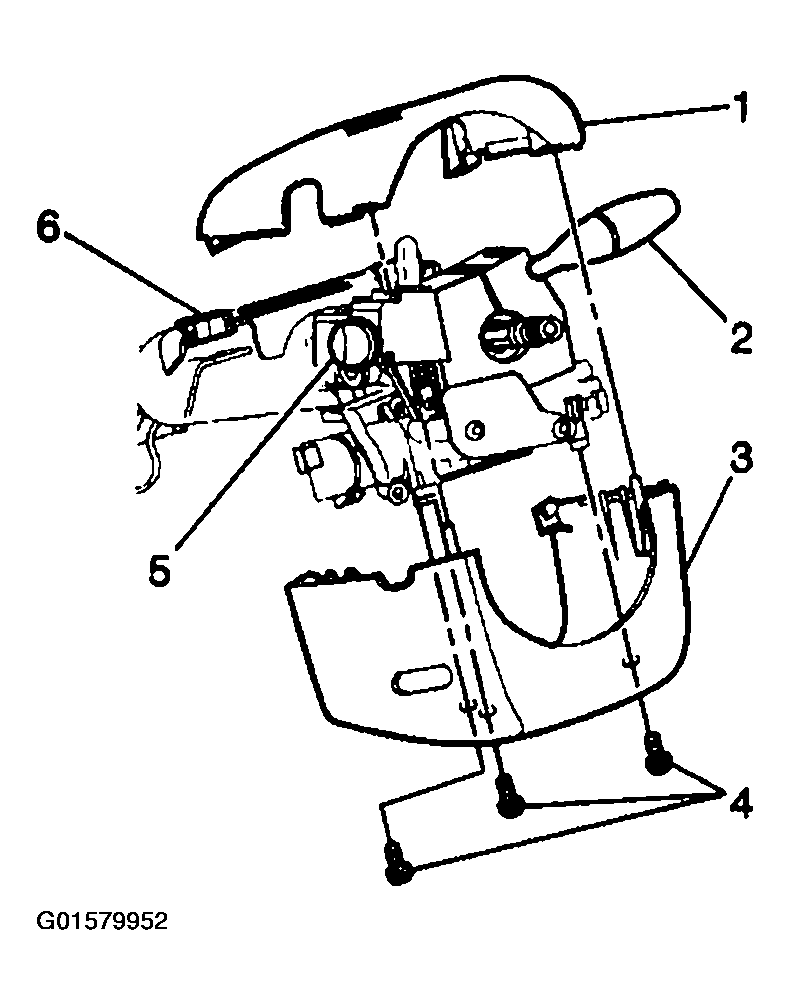

Fig 1: Installing Steering Column Trim Covers
G01579952Courtesy of GENERAL MOTORS CORP.
  1. Install the lower column trim cover (3) to the steering column.
  2. Install the upper column trim cover (1) to the steering column (6).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the retaining screws (4) to the lower steering column trim cover (3).

    Tighten

    Tighten the screws to 4 N.m (36 lb in).

  4. Install the tilt lever, if applicable. Refer to TILT LEVER REPLACEMENT  .
