Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

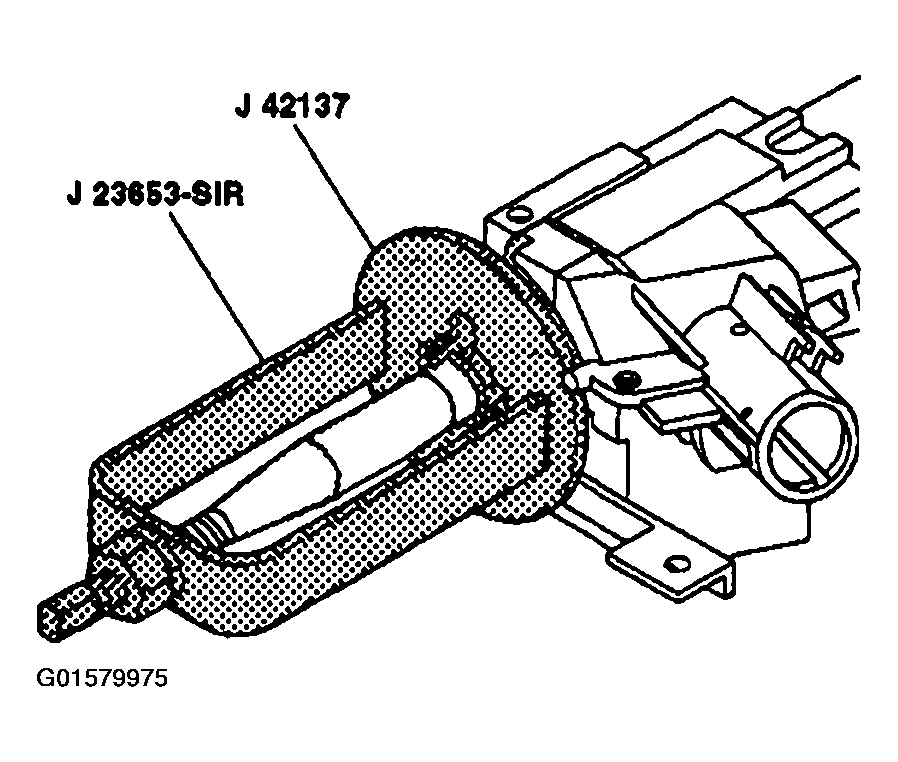

Fig 1: Removing Bearing Retainer
G01579975Courtesy of GENERAL MOTORS CORP.
CAUTION: SIR CAUTION in Cautions and Notices.
  1. Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.
  2. Remove the SIR coil. Refer to 90 .
  3. Remove and dispose of the bearing retainer using J 23653-SIR  and J 42137.
  4. Remove the shaft lock (1).
    Fig 2: Disassembling Steering Column Tilt Head Housing
    G01579976Courtesy of GENERAL MOTORS CORP.
  5. Remove the turn signal cancel cam assembly (2).
  6. Remove the upper bearing spring 93).
  7. Remove the upper bearing inner race seat (4)
  8. Remove the inner race (5).
