Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Assembling Steering Column Tilt Head Housing
G01579977Courtesy of GENERAL MOTORS CORP.
  1. Install the inner race (5).
  2. Install the upper bearing inner race seat (4).
  3. Install the upper bearing spring (3).
  4. Lubricate the turn signal cancel cam assembly (2) with GM P/N 123779900 (Canadian P/N 10953529).
  5. Install the turn signal cancel cam assembly (2).
  6. Install the shaft lock (1).
  7. Install the new bearing retainer using J 23653-SIR  and J 42137  .

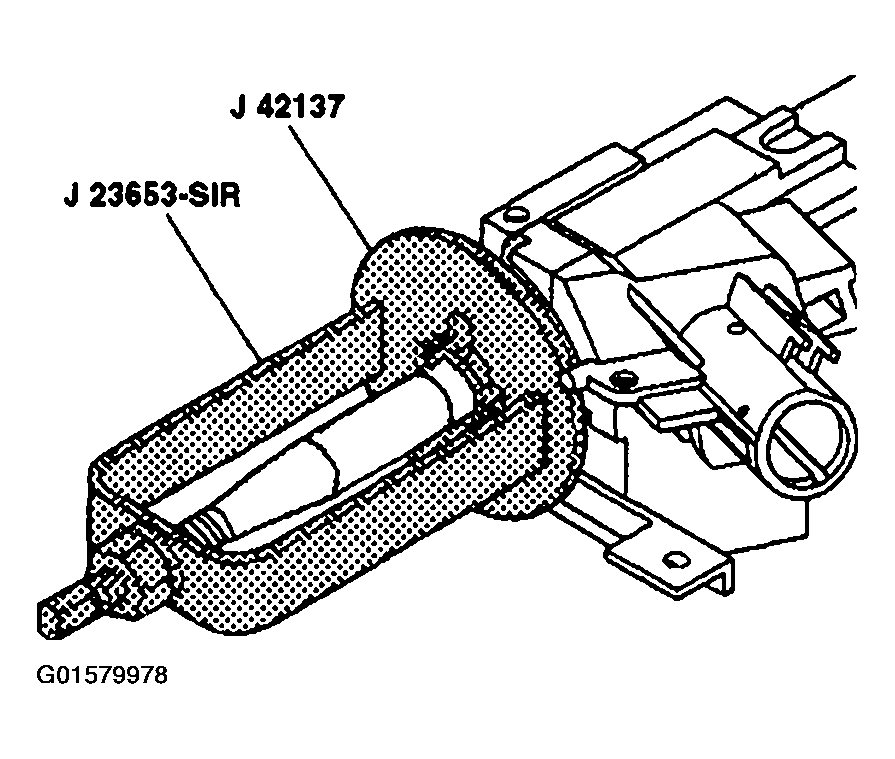

    Fig 2: Installing Bearing Retainer
    G01579978Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to SIR INFLATOR MODULE COIL CAUTION in Cautions and Notices.
  8. Install the SIR coil. Refer to SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM in SIR.
  9. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.
