Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

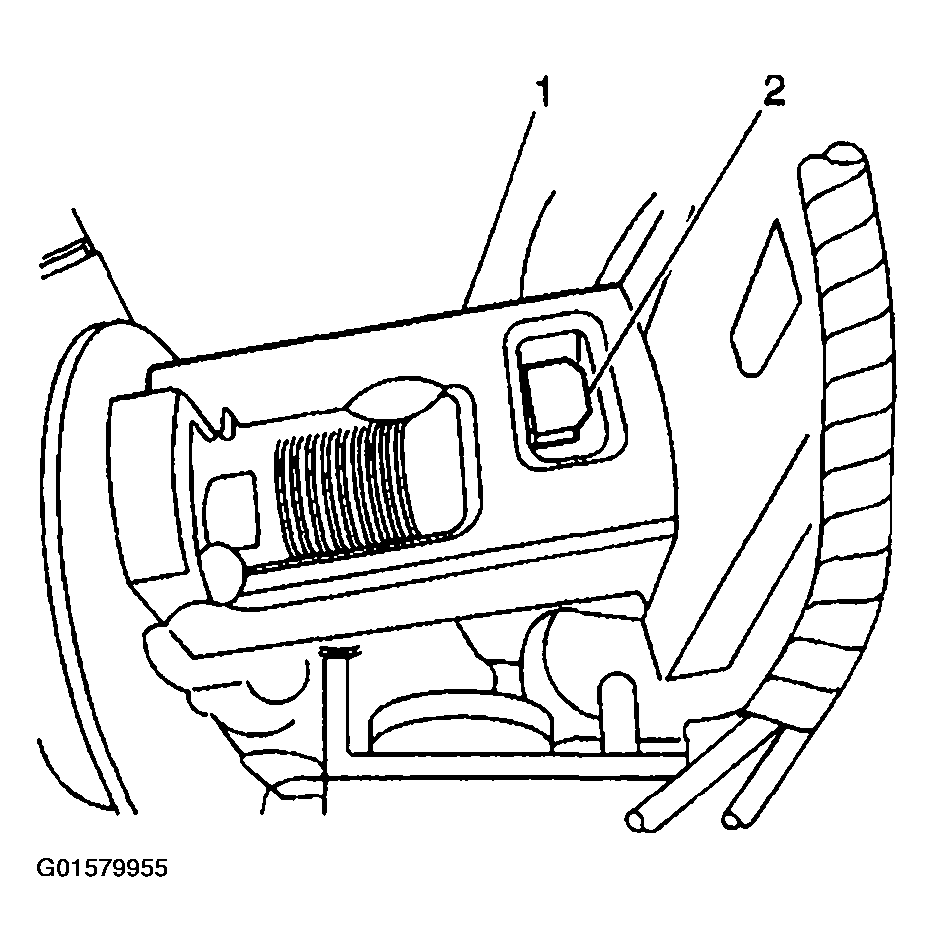

Fig 1: Removing Locking Button From Rear Of Housing Assembly
G01579955Courtesy of GENERAL MOTORS CORP.
CAUTION: BATTERY DISCONNECT CAUTION in Cautions and Notices.
  1. Disconnect the negative battery cable.
    CAUTION: Refer to SIR CAUTION in cautions and Notices.
  2. Disable the supplemental inflatable restraint system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.
  3. Remove the steering column trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT  .
  4. Drill out the locking button (2) on the rear of the housing assembly (1) using an angle drill.
  5. Remove the ignition lock cylinder (1) by pulling outward from the steering column.

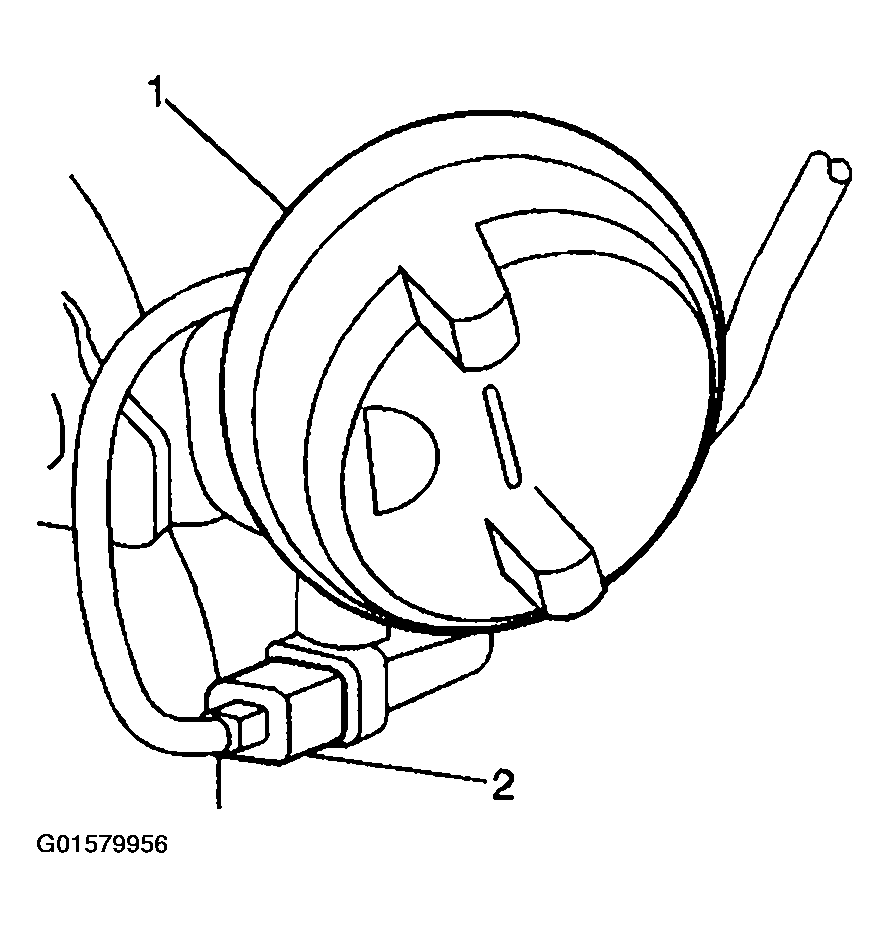

    Fig 2: Disconnecting Electrical Connector From Ignition Lock Cylinder
    G01579956Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the electrical connector (2) from the ignition lock cylinder (1).
  7. Remove the metal shavings from the steering column and ignition lock housing assembly.
