Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

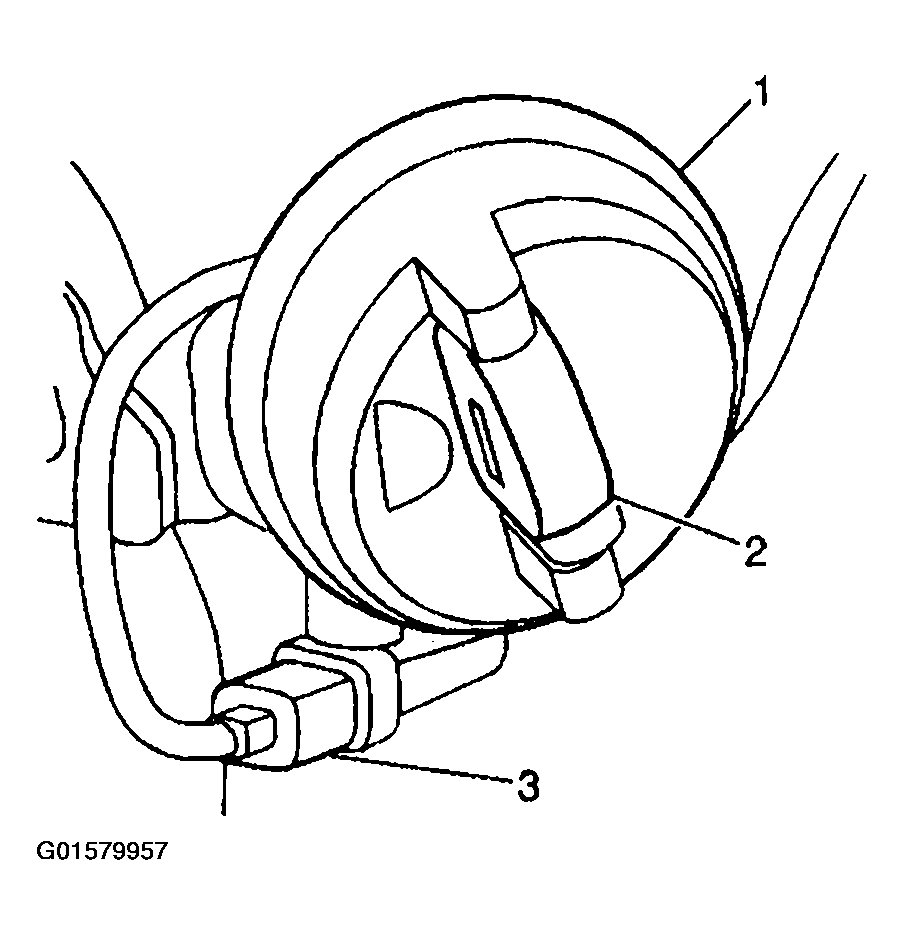

Fig 1: Connecting Electrical Connector To Ignition Lock Cylinder
G01579957Courtesy of GENERAL MOTORS CORP.
IMPORTANT: Ensure that all the metal shavings are cleaned from the steering column and ignition housing assembly.
  1. Connect the electrical connector (3) to the ignition lock cylinder (1).
  2. Insert the ignition lock cylinder (1) into the housing assembly while rotating the key approximately 5 degrees counter - clockwise.
  3. Install the steering column trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT  .
  4. Enable the SIR system. Refer to 66 in SIR.
  5. Connect the negative battery cable.
  6. Perform the Passlock Learn Procedure. Refer to PROGRAMMING THEFT DETERRENT SYSTEM COMPONENTS in Theft Deterrent.
