Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

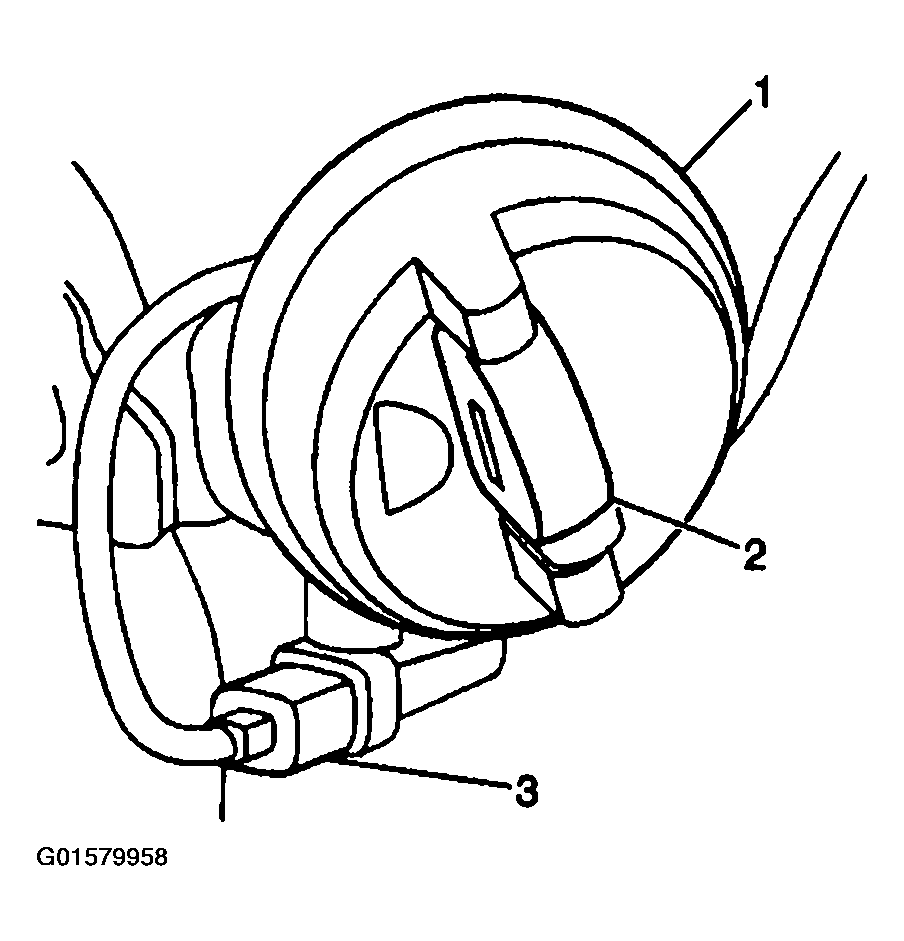

Fig 1: Identifying Ignition Lock Cylinder (With Key)
G01579958Courtesy of GENERAL MOTORS CORP.
CAUTION: BATTERY DISCONNECT CAUTION in Cautions and Notices.
  1. Disconnect the negative battery cable.
    CAUTION: SIR CAUTION in Cautions and Notices.
  2. Disable the supplemental inflatable restraint (SIR) system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.
  3. Remove the steering column trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT  .
  4. Turn the ignition lock cylinder (1) to the RUN position.
  5. Push the locking button (2) on the rear of the housing assembly (1).

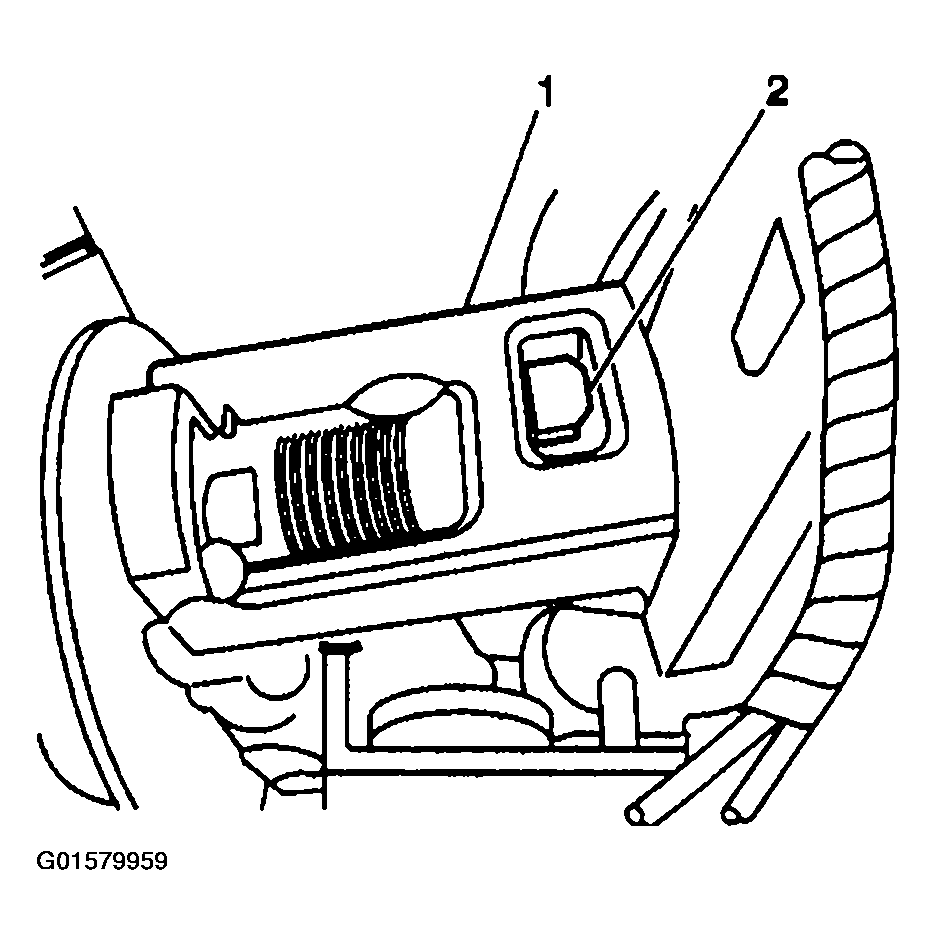

    Fig 2: Pushing Locking Button On Rear Of Housing Assembly
    G01579959Courtesy of GENERAL MOTORS CORP.
  6. Remove the ignition lock cylinder by pulling outward from the steering column.
  7. Disconnect the electrical connector (3) from the ignition lock cylinder (1).

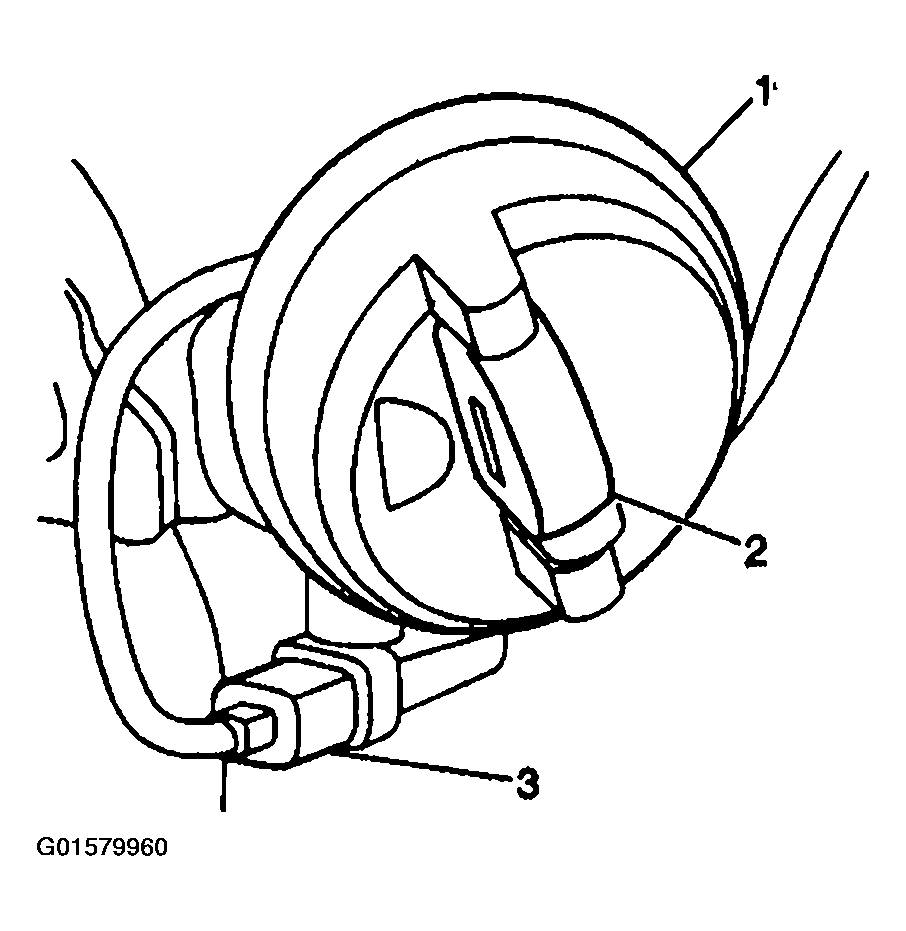

    Fig 3: Disconnecting Electrical Connector From Ignition Lock Cylinder
    G01579960Courtesy of GENERAL MOTORS CORP.
