Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

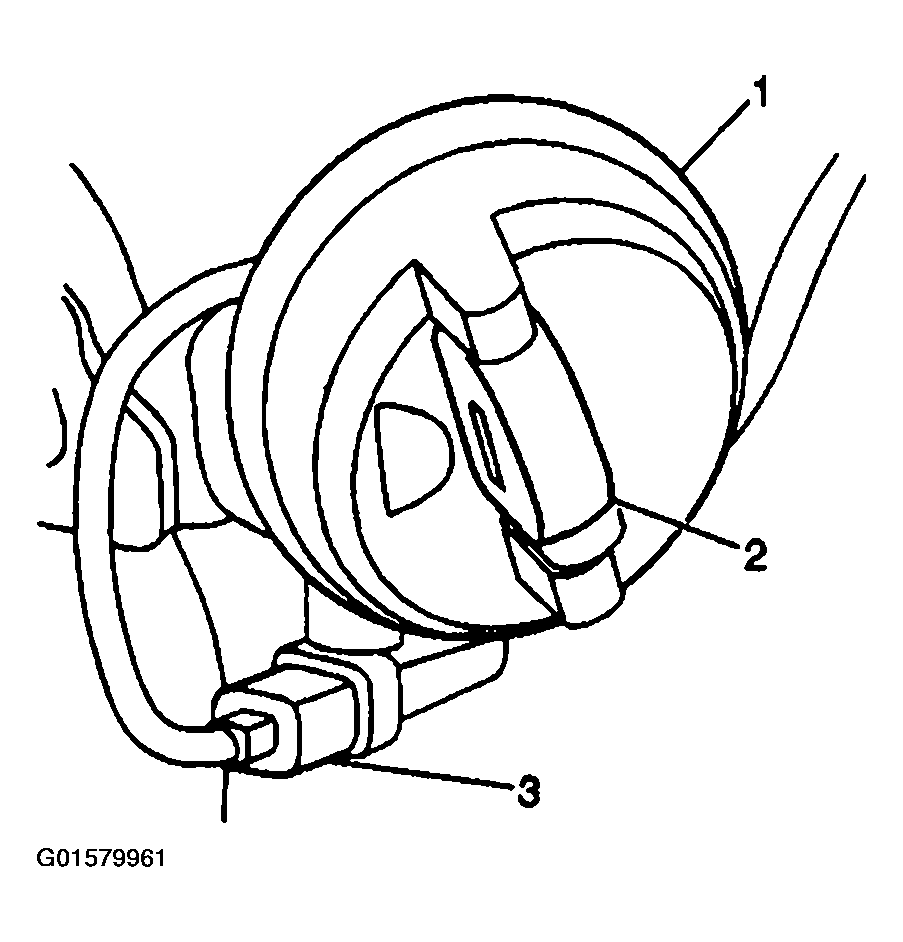

Fig 1: Connecting Electrical To Ignition Lock Cylinder
G01579961Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical (3) to the ignition lock cylinder (1).
  2. Insert the ignition lock cylinder into the housing assembly (1) while rotating the key approximately 5 degrees counterclockwise.

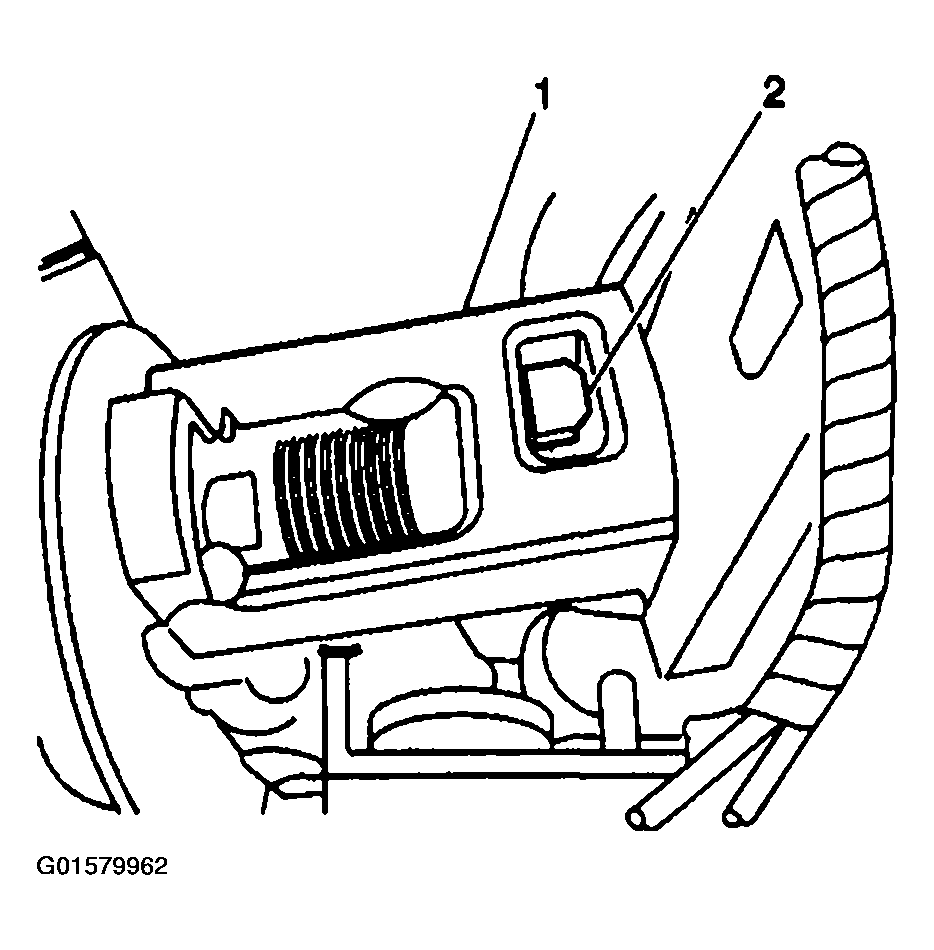

    Fig 2: Inserting Ignition Lock Cylinder Into Housing Assembly
    G01579962Courtesy of GENERAL MOTORS CORP.
  3. Install the steering column trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT  .
  4. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.
  5. Connect the negative battery cable.
  6. Perform the Passlock Learn Procedure. Refer to PROGRAMMING THEFT DETERRENT SYSTEM COMPONENTS in Theft Deterrent.
