Vibration Theory and Terminology: Cycle

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

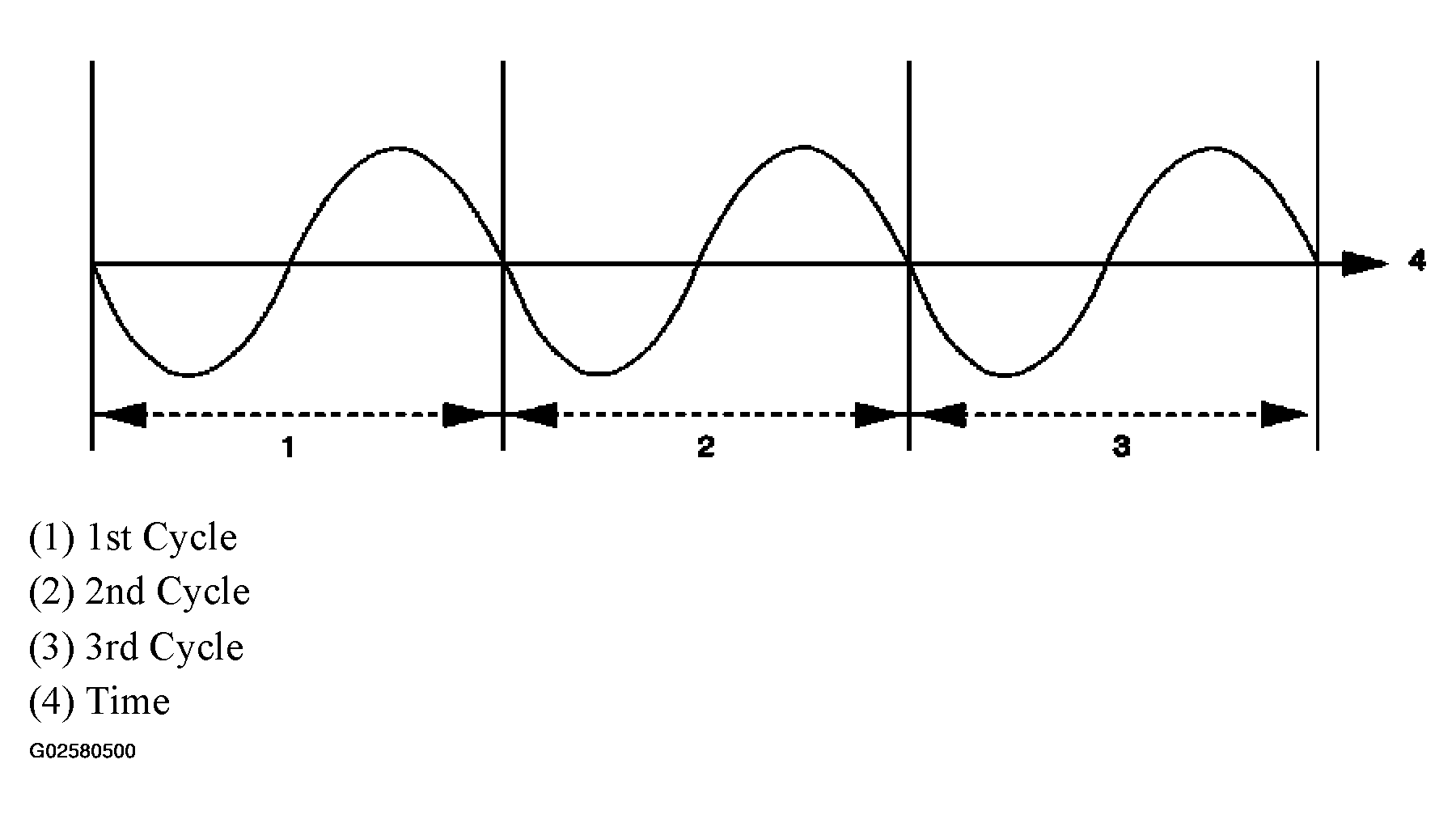

Fig 1: Vibration Cycles In Powertrain Components

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Spindle And Pinion Nose

Courtesy of GENERAL MOTORS CORP.

The word cycle comes from the same root as the word circle. A circle begins and ends at the same point, as thus, so does a cycle. All vibrations consist of repetitive cycles.
