Under the Rear Suspension Crossmember

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: The floor jack pad must not be placed under the rear suspension crossmember front reinforcement rib.

Position the floor jack pad as follows:

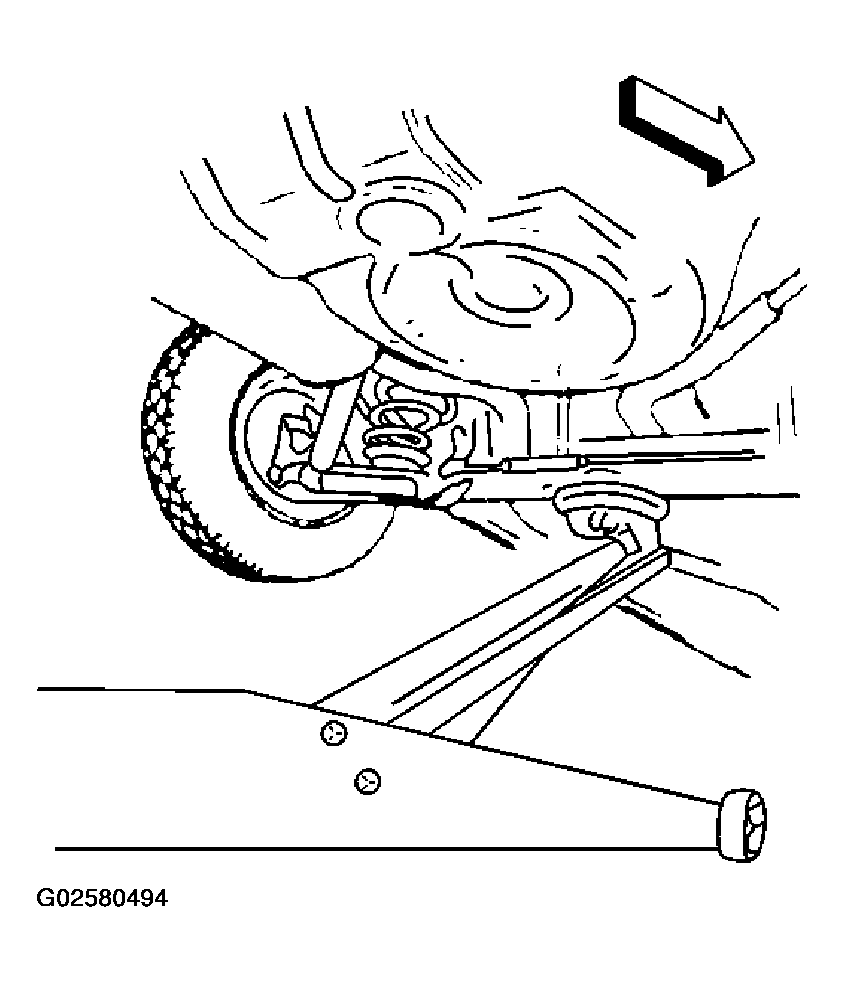

Fig 1: Identifying Position Of Floor Jack Pad Under Rear Suspension Crossmember
G02580494Courtesy of GENERAL MOTORS CORP.
