Removal (2.2L - LN2 Engine)

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove wiring harness bracket nut from starter bolt.
Raise the vehicle.
Remove flywheel inspection shield. See Fig 1 .
Remove the electrical connections from starter.
Remove the starter bolts and starter. See Fig 2 .

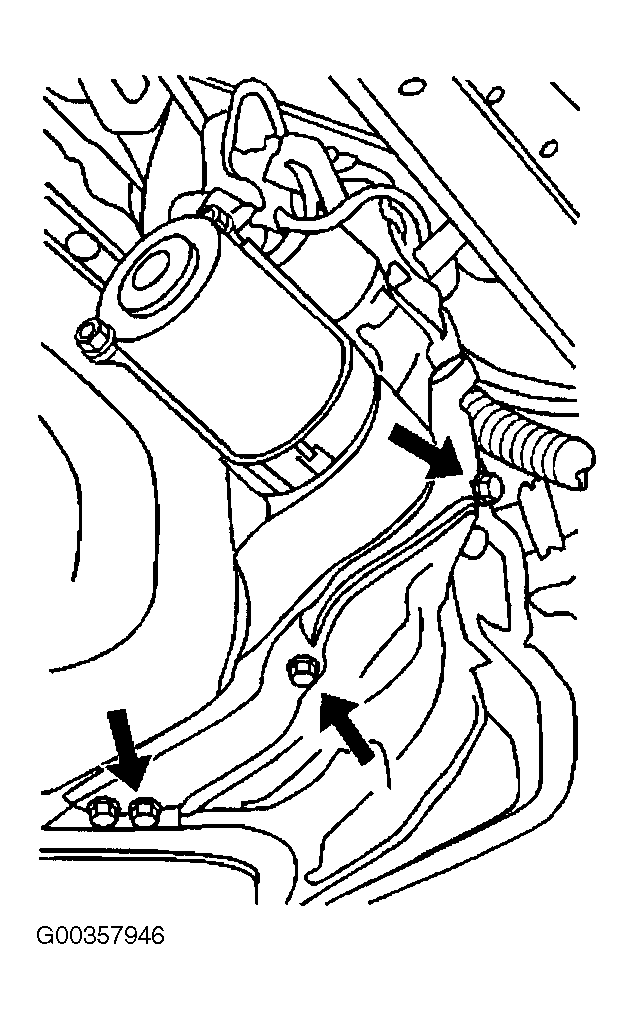

Fig 1: Removing Flywheel Inspection Cover

Courtesy of GENERAL MOTORS CORP.

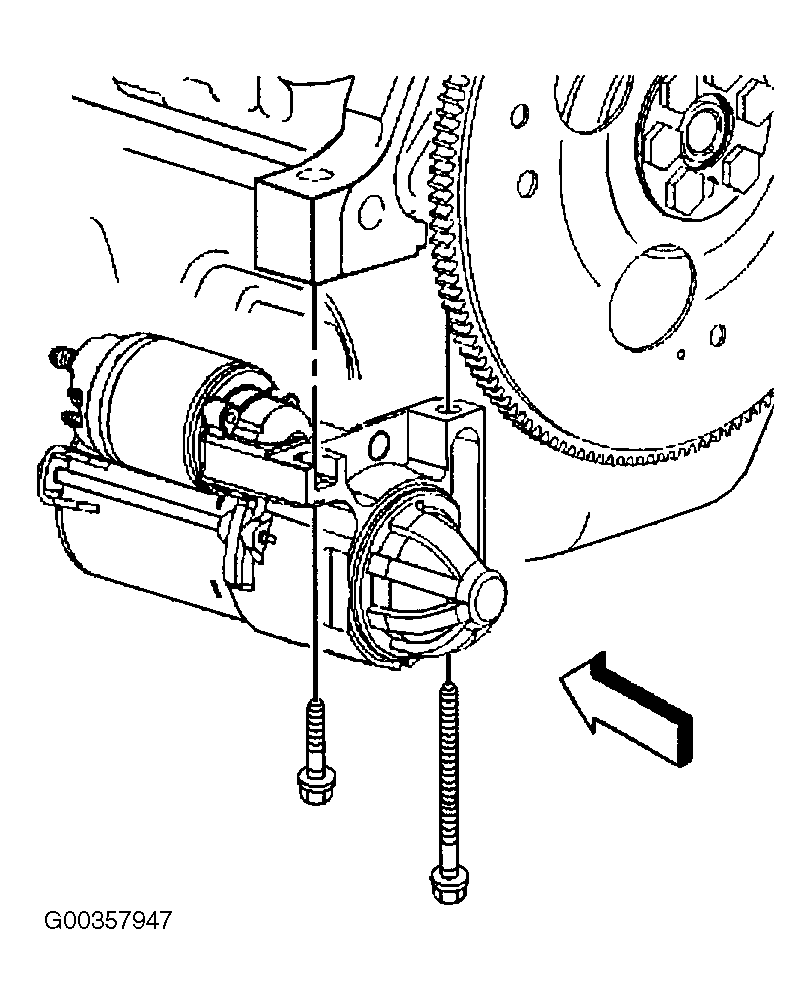

Fig 2: Removing Starter

Courtesy of GENERAL MOTORS CORP.
