Removal (2.2L - L61 - Aluminum Engine)

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Raise and support the vehicle.
Disconnect the electrical connectors from the starter. See Fig 1 .
Remove the starter bolts. See Fig 2 .
Remove the starter.

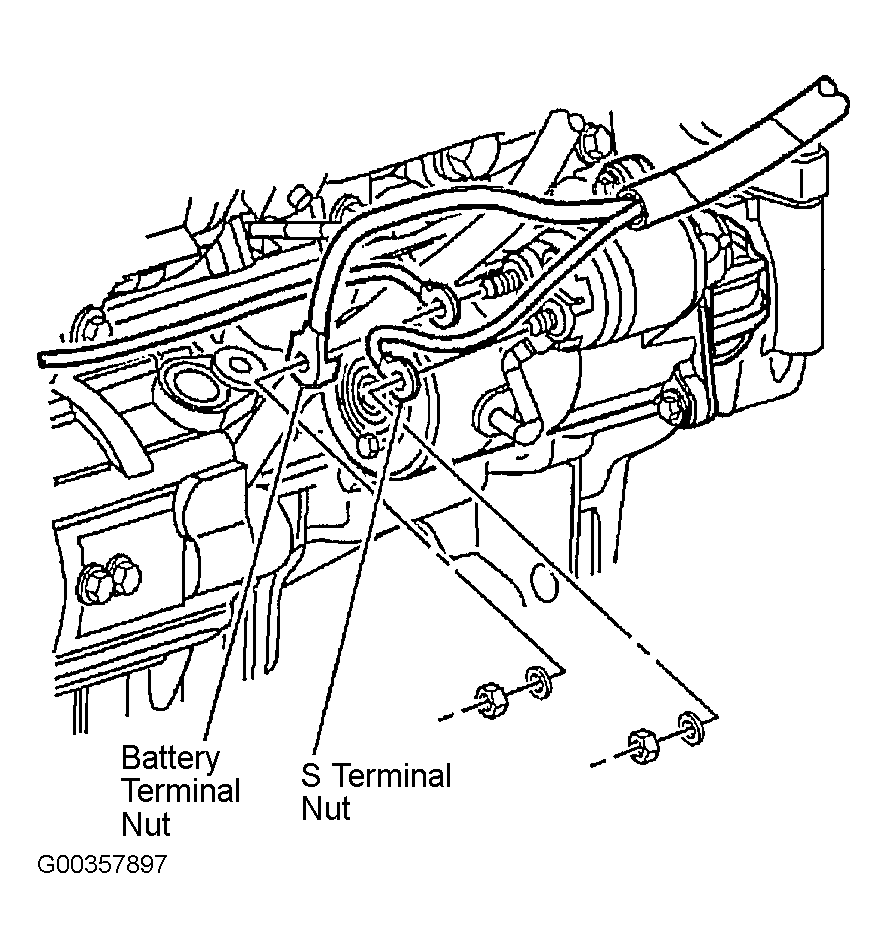

Fig 1: Disconnecting Starter Electrical Connectors

Courtesy of GENERAL MOTORS CORP.

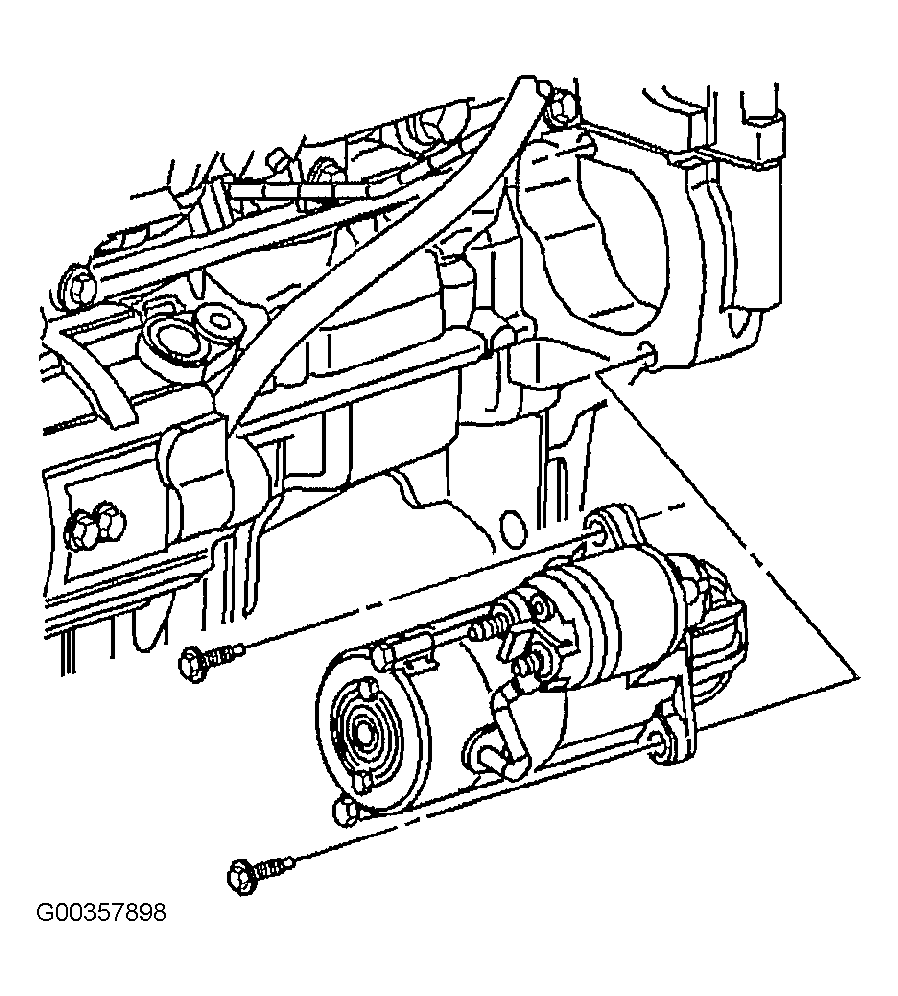

Fig 2: Removing Starter

Courtesy of GENERAL MOTORS CORP.
