Installation (2.4L Engine)

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the electrical wiring.

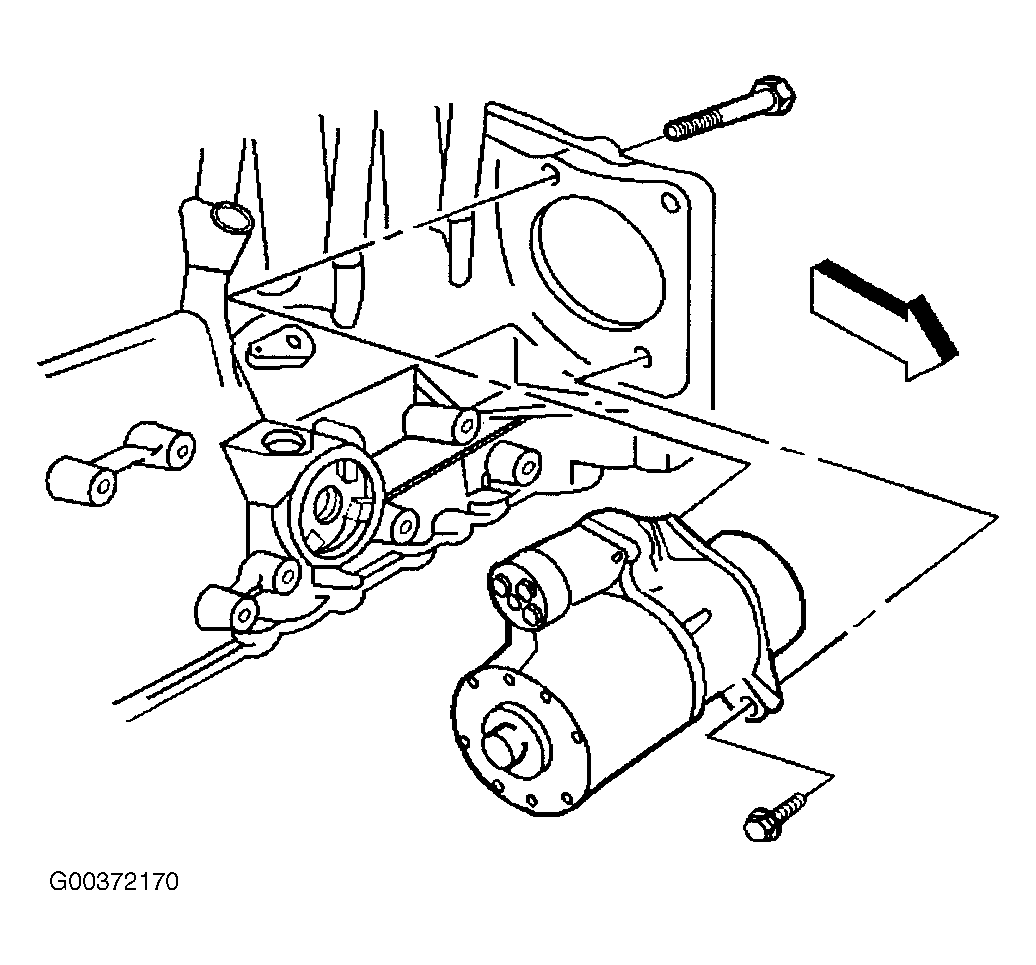

  2. Position the starter to the engine. See Figure .
  3. Install the lower starter bolt.
  4. Reposition the engine wiring harness.
  5. Lower the vehicle.
  6. Install the top starter bolt.
  7. Install the air inlet duct to the throttle body.
  8. Install the negative battery cable.
