Park/Neutral Position Switch: Installation

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

Align the flats of the shift shaft with the switch. See Fig 1 . Install the PNP switch mounting bolts. Tighten the bolts to specification. See TORQUE SPECIFICATIONS .
Ensure the engine will only start in PARK and NEUTRAL positions. Readjust the switch if the engine will start in any other position.

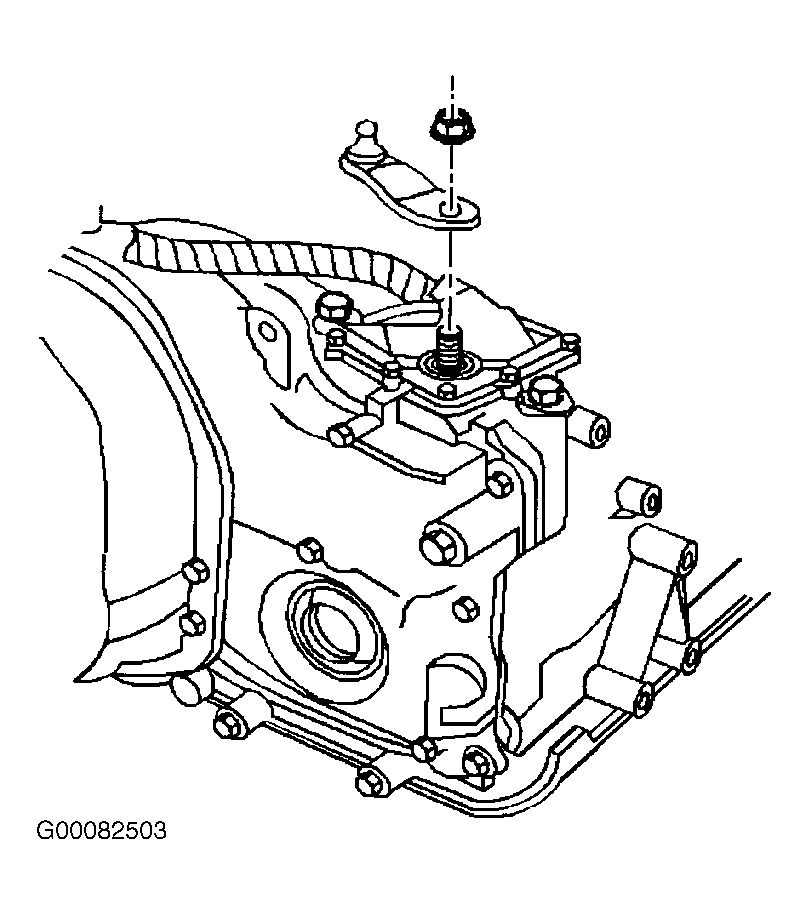

Fig 1: Removing & Installing PNP Switch

Courtesy of GENERAL MOTORS CORP.
