A/T Mount Assembly: Installation

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Transfer the mount bracket to the new mount. Position the mount and start the 4 bolts into the threads. See Fig 2 . Tighten the mount bolts to specification. See TORQUE SPECIFICATIONS  .
  2. Install the mount expansion bolt. See Fig 1 . Tighten the bolt to specification. See TORQUE SPECIFICATIONS  . Remove the jackstand and the wood block.
  3. Install the left fender liner. Install the left tire and wheel assembly. Lower the vehicle.

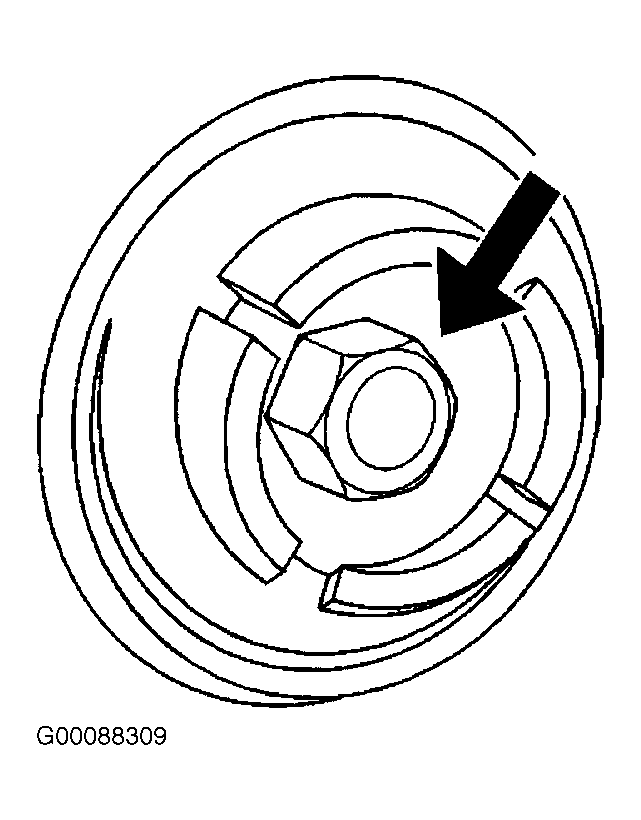

Fig 1: Removing Installing Expansion Bolts
G00088309Courtesy of GENERAL MOTORS CORP.

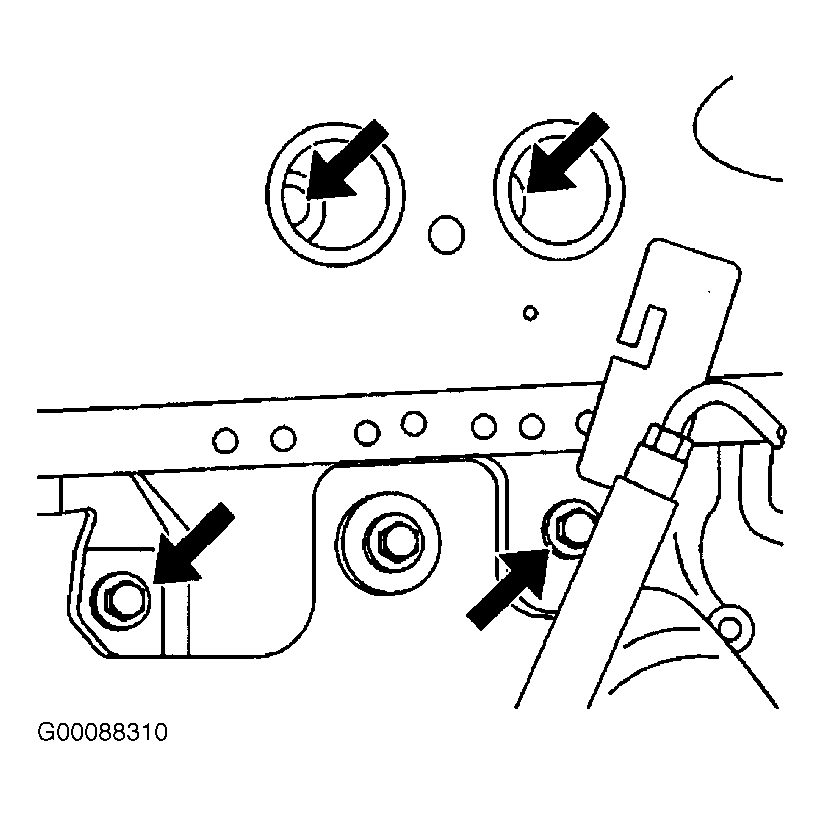

Fig 2: Removing & Installing Transaxle Mount Bolts
G00088310Courtesy of GENERAL MOTORS CORP.
