Brake Pedal Assembly: Removal

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the accelerator cable from the accelerator pedal.

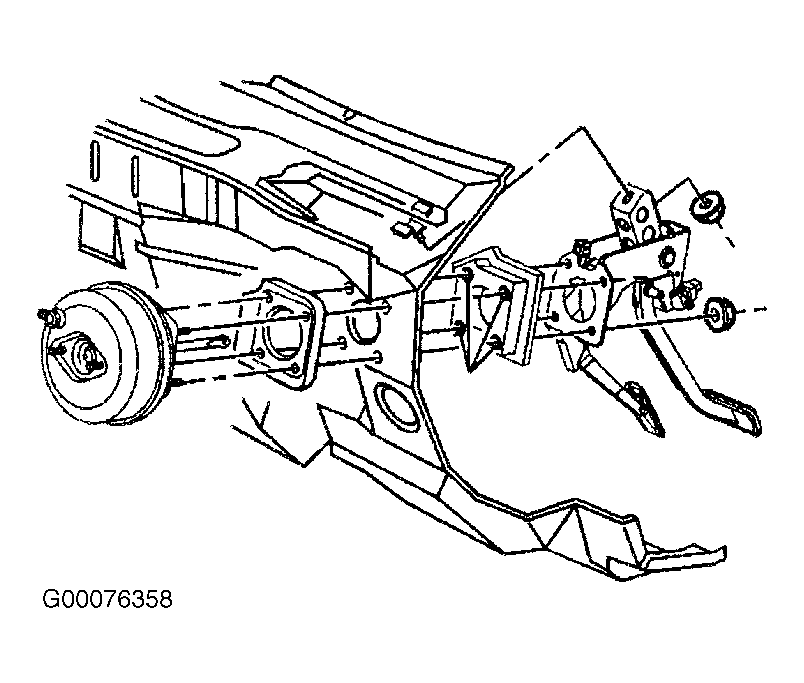

  2. Disconnect the brake pedal pushrod from the brake pedal. Remove the brake switch from the brake pedal. Disconnect the electrical harness from the brake pedal. Remove the upper and the lower mounting nuts from the brake pedal assembly. Remove the brake pedal assembly. See Figure.
