Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the steering column trim covers. Refer to Steering Column Trim Covers Replacement - On Vehicle .
  3. Remove the multifunction switch. Refer to Multifunction, Turn Signal & Hazard Switch Replacement - On Vehicle .
  4. Remove the retaining screw from the windshield wiper switch (2).
  5. Disconnect the electrical connector from the windshield wiper switch.
  6. Remove the windshield wiper switch (2) from the column (6).

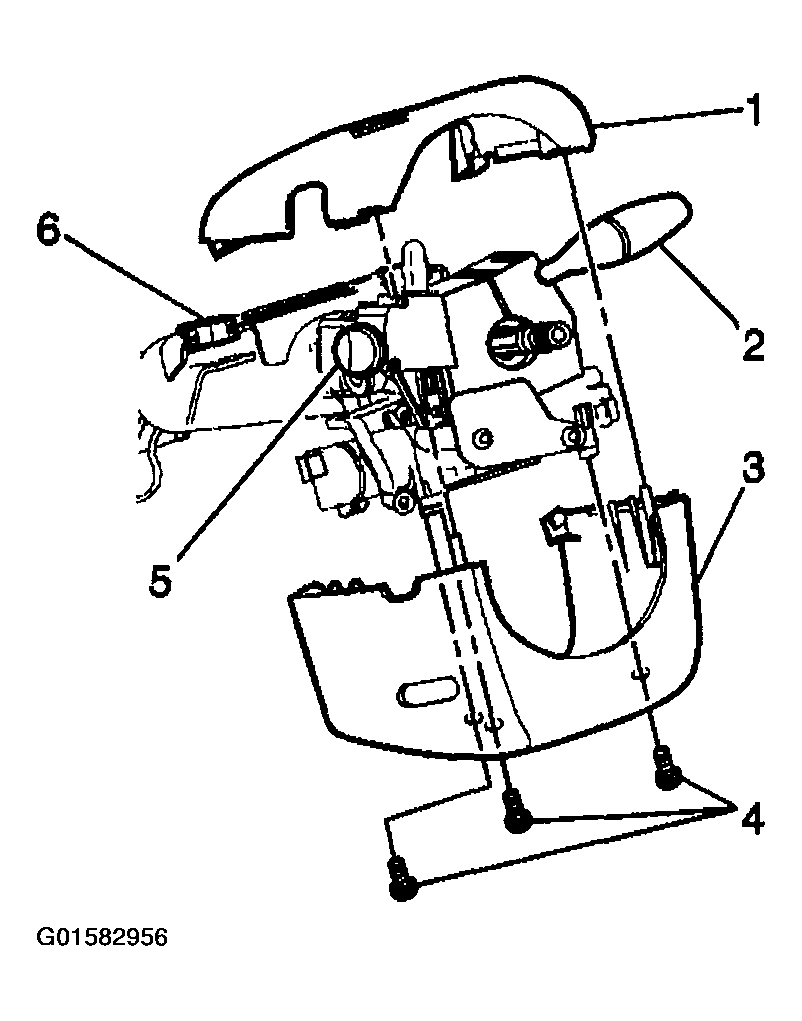

    Fig 1: Locating Windshield Wiper Switch On Column
    G01582956Courtesy of GENERAL MOTORS CORP.
