Turn Signal Cancel Cam & Bearing Thrust Washer - Disassemble (Off Vehicle): Disassembly

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

Disable the inflatable restraint steering wheel module. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
Remove the inflatable restraint steering wheel module coil. Refer to Inflatable Restraint Steering Wheel Module Coil - Disassemble (Off Vehicle) .
Remove and discard the bearing retainer using J 23653-SIR and J 42137 .

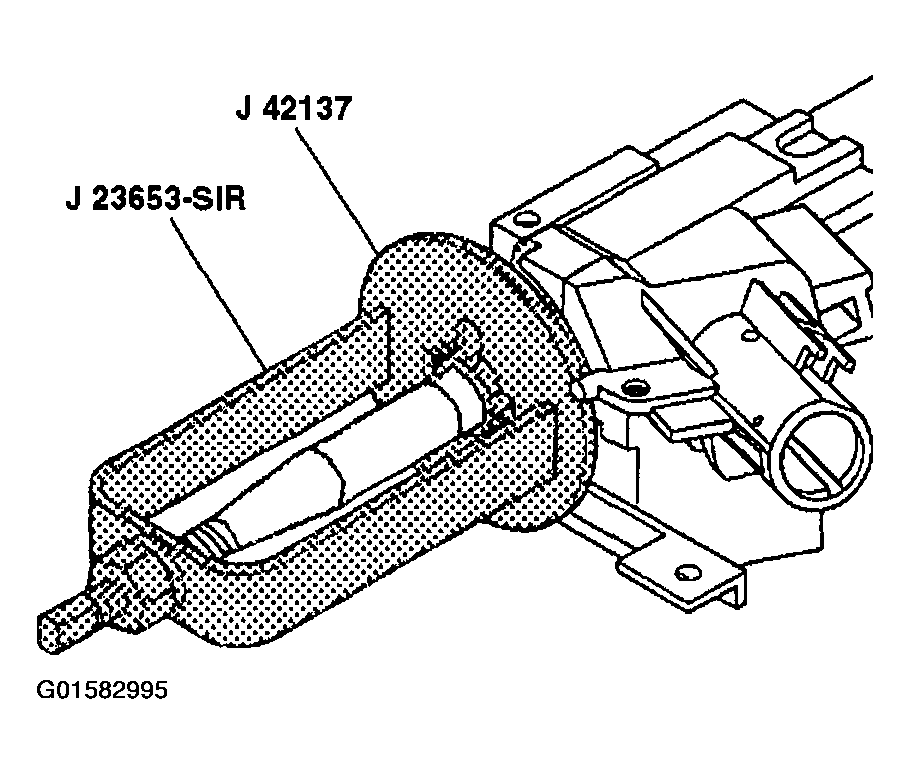

Fig 1: Removing Bearing Retainer
Courtesy of GENERAL MOTORS CORP.
Remove the shaft lock (1).
Remove the turn signal cancel cam (2).
Remove the upper bearing spring (3).
Remove the upper bearing spacer (4).

Fig 2: Removing Shaft Lock, Turn Signal Cancel Cam, Upper Bearing Spring & Upper Bearing Spacer
Courtesy of GENERAL MOTORS CORP.
