Tilt Spring - Disassemble (Off Vehicle): Disassembly
WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
- Disable the inflatable restraint steering wheel module. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
- Remove the steering wheel from the steering column. Refer to Steering Wheel Replacement .
- Remove the tilt lever. Refer to Tilt Lever Replacement - On Vehicle .
- Remove the trim covers. Refer to Steering Column Trim Covers Replacement - On Vehicle .
- Remove the steering column from the vehicle. Refer to Steering Column Replacement .
- Inspect the steering column for accident damage. Refer to Steering Column Accident Damage Inspection - Off Vehicle .

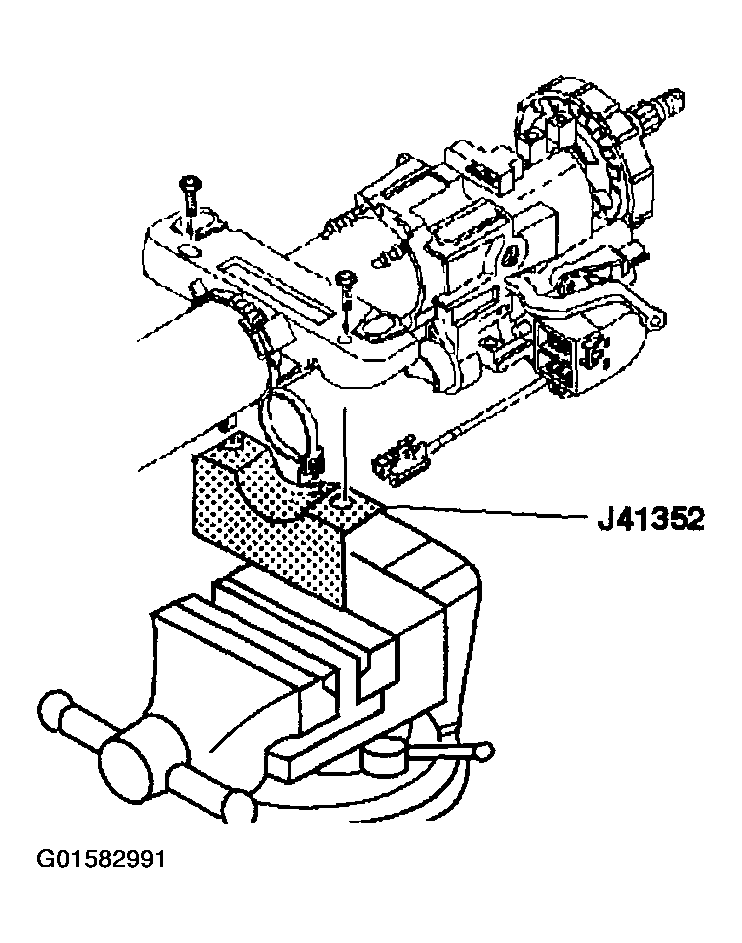

- Install the steering column and J 41352 into a vise.
- Tilt the column in the UP positionCAUTION: The tilt spring and the spring guide are under pressure. The tilt spring and the spring guide may become a projectile. Secure the spring with locking pliers during removal. Secure the spring with locking pliers during installation. Bodily injury may result during removal and installation of the tilt spring and the spring guide. Always use caution during removal and installation of the tilt spring and the spring guide.

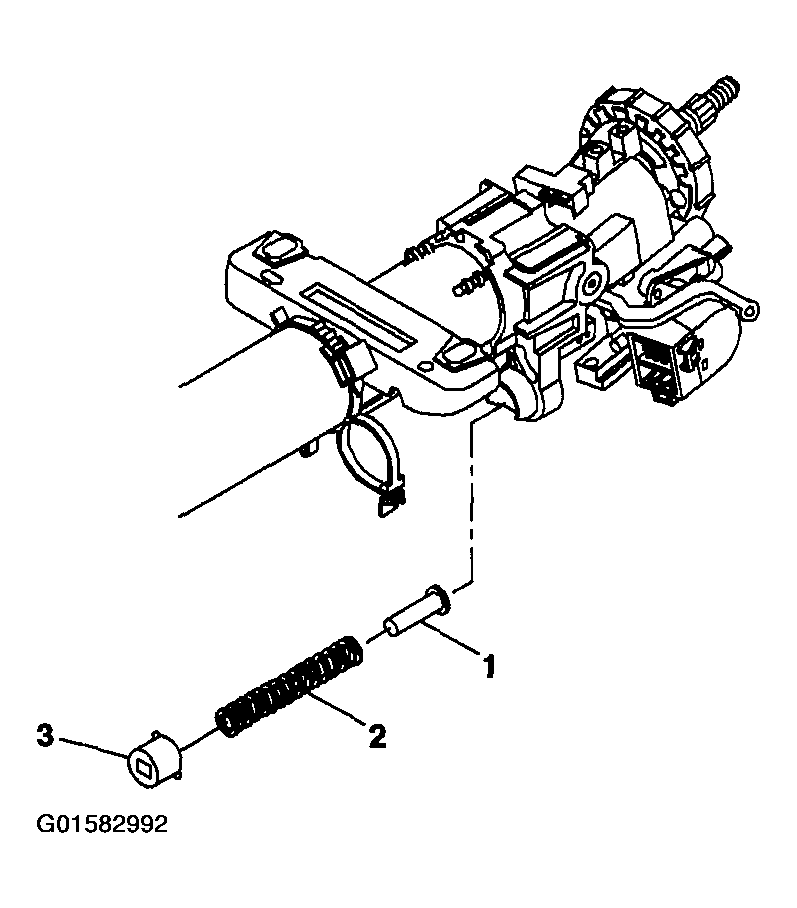

- Apply pressure onto the spring retainer (3).
- Turn the spring retainer (3) clockwise and release to remove the spring retainer (3).
- Remove the tilt spring (2) and the spring guide (1).
- Remove the spring guide (1) from the tilt spring (2).
