Steering Shaft, Lower Bearing & Jacket - Disassemble (Off Vehicle - Standard): Disassembly

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the inflatable restraint steering wheel module. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove the steering column jacket. Refer to Steering Column Jacket - Disassemble (Off Vehicle) .
  3. Remove and discard the 4 support screws (1).
  4. Remove the support mounting adapter (2).
    Fig 1: Support Mounting Adapter
    G01583015Courtesy of GENERAL MOTORS CORP.
  5. Remove and discard the lower spring retainer (6).
  6. Remove the lower bearing spring (5).
  7. Remove the lower bearing seat (4).
  8. Remove the adapter and bearing assembly (3).
  9. Remove and discard the bearing retainer (1).
  10. Remove the steering shaft assembly (2) from the steering column jacket.

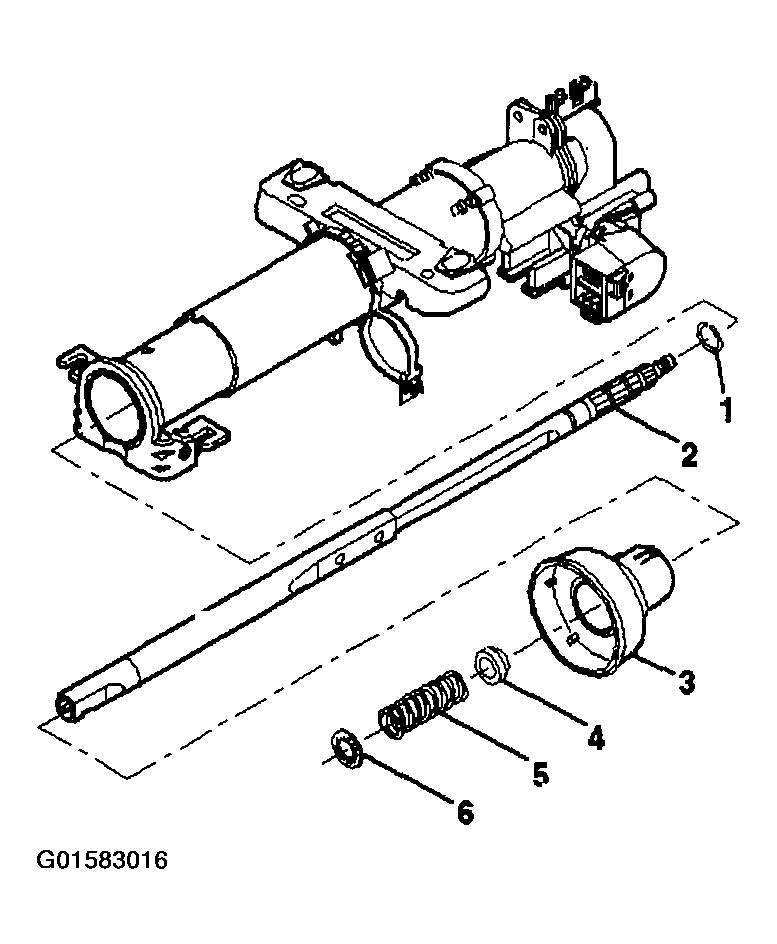

    Fig 2: Steering Shaft Assembly
    G01583016Courtesy of GENERAL MOTORS CORP.
