Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. If the vehicle has tilt lever. Remove the tilt lever. Refer to Tilt Lever Replacement - On Vehicle .
  2. Remove the retaining screws (4) from the lower column trim cover (3).
  3. Remove the upper column trim cover (1) by tilting up and unsnapping from the lower column trim cover hinges (3).
  4. Remove the lower column trim cover (3) from the steering column (6).

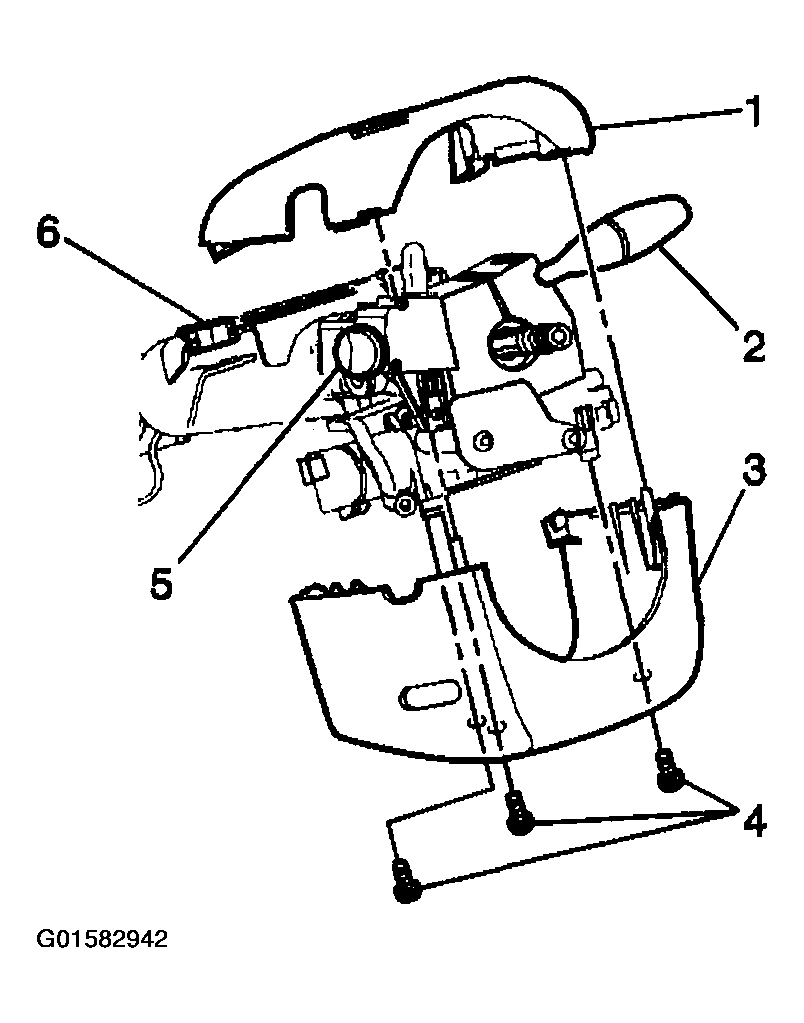

    Fig 1: Upper Column Trim Cover
    G01582942Courtesy of GENERAL MOTORS CORP.
