Steering Column Tilt Head Housing - Disassemble (Off Vehicle): Disassembly

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

Disable the inflatable restraint steering wheel module. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
Remove the inflatable restraint steering wheel module coil. Refer to Inflatable Restraint Steering Wheel Module Coil - Disassemble (Off Vehicle) .

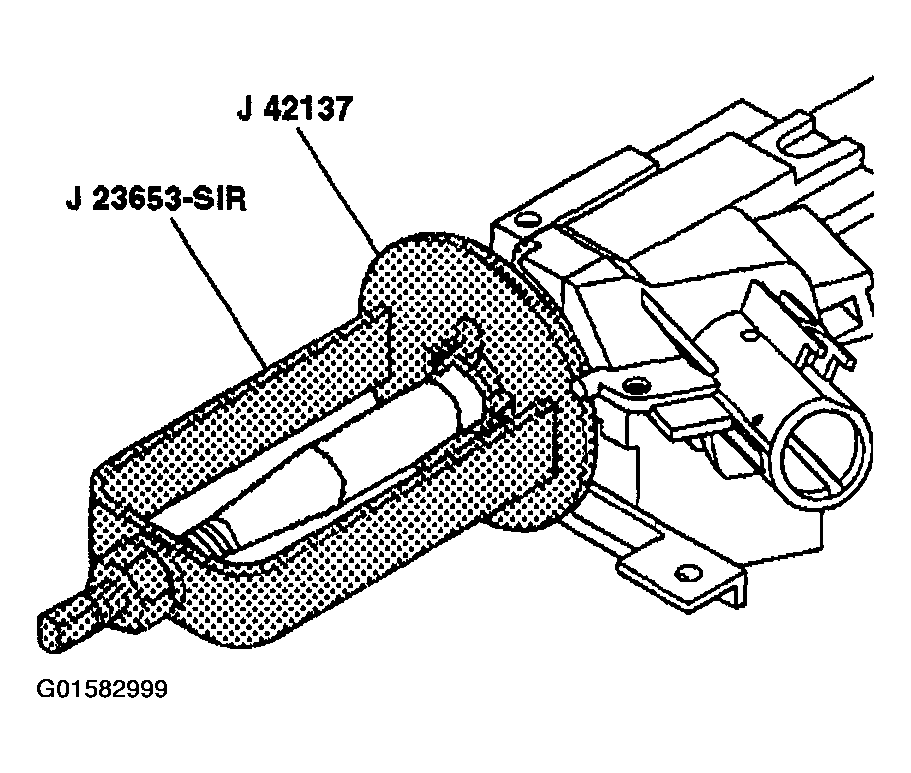

Remove and dispose of the bearing retainer using J 23653-SIR and J 42137 .

Fig 1: Removing Bearing Retainer
Courtesy of GENERAL MOTORS CORP.
Remove the shaft lock (1).
Remove the turn signal cancel cam assembly (2).
Remove the upper bearing spring (3).
Remove the upper bearing inner race seat (4)
Remove the inner race (5).

Fig 2: Locating Shaft Lock, Signal Cancel Cam, Upper Bearing Spring, Upper Bearing Inner Race Seat & Inner Race
Courtesy of GENERAL MOTORS CORP.
